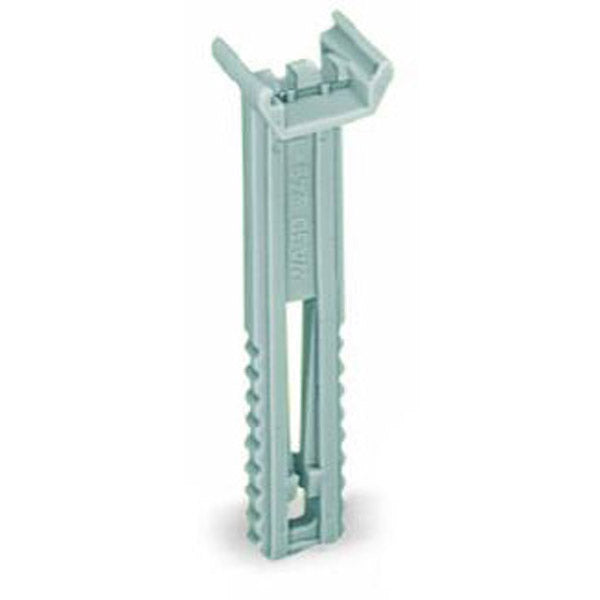

Wago - 249-118

Group marker carrier - WAGO (249 series) - Gray color - Dimensions W10mm - equivalent to 249118

Specifications

• Primary brand: WAGO
• Functions: Group marker carrier
• Color: Gray
• Dimensions: W10mm
• Material: Polyamide (PA) 66
• ETIM code: EC002248
• GTIN code: 4017332188388
• eClass code: 27-14-40-75
• Customs Tariff Number: 39269097900
• Order code / Manufacturer SKU: 249-118
• Manufacturer product status: Commercialized
• Equivalent to: 249118
• EAN code: 4017332188388
• Compliant with standard(s): RoHS compliant|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Group marker carrier - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 39269097900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-40-75
• eCl@ss 9.0: 27-14-40-75
• ETIM 8.0: EC002248
• ETIM 9.0: EC002248
• GTIN: 4017332188388
• Packaging type: box
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 100 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.039MJ
• Weight: 1.3g

Physical data

• Width: 10 mm / 0.394 inches

Technical data

• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Properties: snap-on type and adjustable in height from 43.5 mm to 59.5 mm
• Suitable: for end stops (249‑116 and 249‑117); for 2 WMB markers or 1 continuous strip
