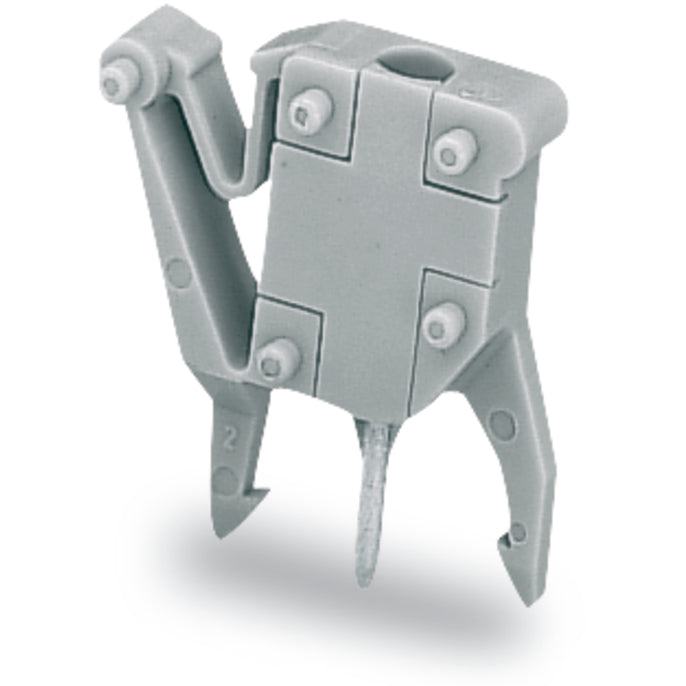

Wago - 249-112

WAGO component - equivalent to 249112

Specifications

• Primary brand: WAGO
• GTIN code: 4045454306830
• Order code / Manufacturer SKU: 249-112
• Manufacturer product status: Commercialized
• Equivalent to: 249112
• EAN code: 4045454306830
• Manufacturer description: Test plug adapter; suitable for 255; 256; 257 Series PCB terminal blocks; 1-pole; Pin spacing 7.5mm / 0.295"; gray
• Location of origin: Switzerland
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 4kV|Electrical data - Ratings per IEC/EN - Rated current -- 6A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Connection data - Connection 1 - Pole number -- 1|Physical data - Pin spacing -- 7.5mm / 0.295"|Physical data - Width -- 7.5mm / 0.295"|Physical data - Height -- 21.5mm / 0.846"|Physical data - Depth -- 19.5mm / 0.768"|Mechanical data - Suitable -- for PCB terminal blocks (255; 256; 257 Series); with socket for 2mm and 2.3mm diam. test plugs|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Fire load -- 0.03MJ|Material data - Weight -- 1.5g|Environmental requirements - Limit temperature range -- -60...+105°C|Commercial data - Product Group -- 2 (Terminal Block Accessories)|Commercial data - eClass 10.0 -- 27-14-11-48|Commercial data - eClass 9.0 -- 27-14-11-48|Commercial data - ETIM 9.0 -- EC002255|Commercial data - ETIM 8.0 -- EC002255|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 100 (25) pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- CH|Commercial data - GTIN -- 4045454306830|Commercial data - Customs tariff number -- 85366990990|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts

Commercial data

• Country of origin: CH
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-48
• eCl@ss 9.0: 27-14-11-48
• ETIM 8.0: EC002255
• ETIM 9.0: EC002255
• GTIN: 4045454306830
• Packaging type: box
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 100 (25) pcs

Connection data

• Connection 1 - Pole number: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Rated current: 6A
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 4kV
• Ratings per IEC/EN - Rated voltage (III/2): 320V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Limit temperature range: -60 … +105 °C

Material data

• Color: gray
• Fire load: 0.03MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 1.5g

Mechanical data

• Suitable: for PCB terminal blocks (255, 256, 257 Series); with socket for 2 mm and 2.3 mm Ø test plugs

Physical data

• Depth: 19.5 mm / 0.768 inches
• Height: 21.5 mm / 0.846 inches
• Pin spacing: 7.5 mm / 0.295 inches
• Width: 7.5 mm / 0.295 inches
