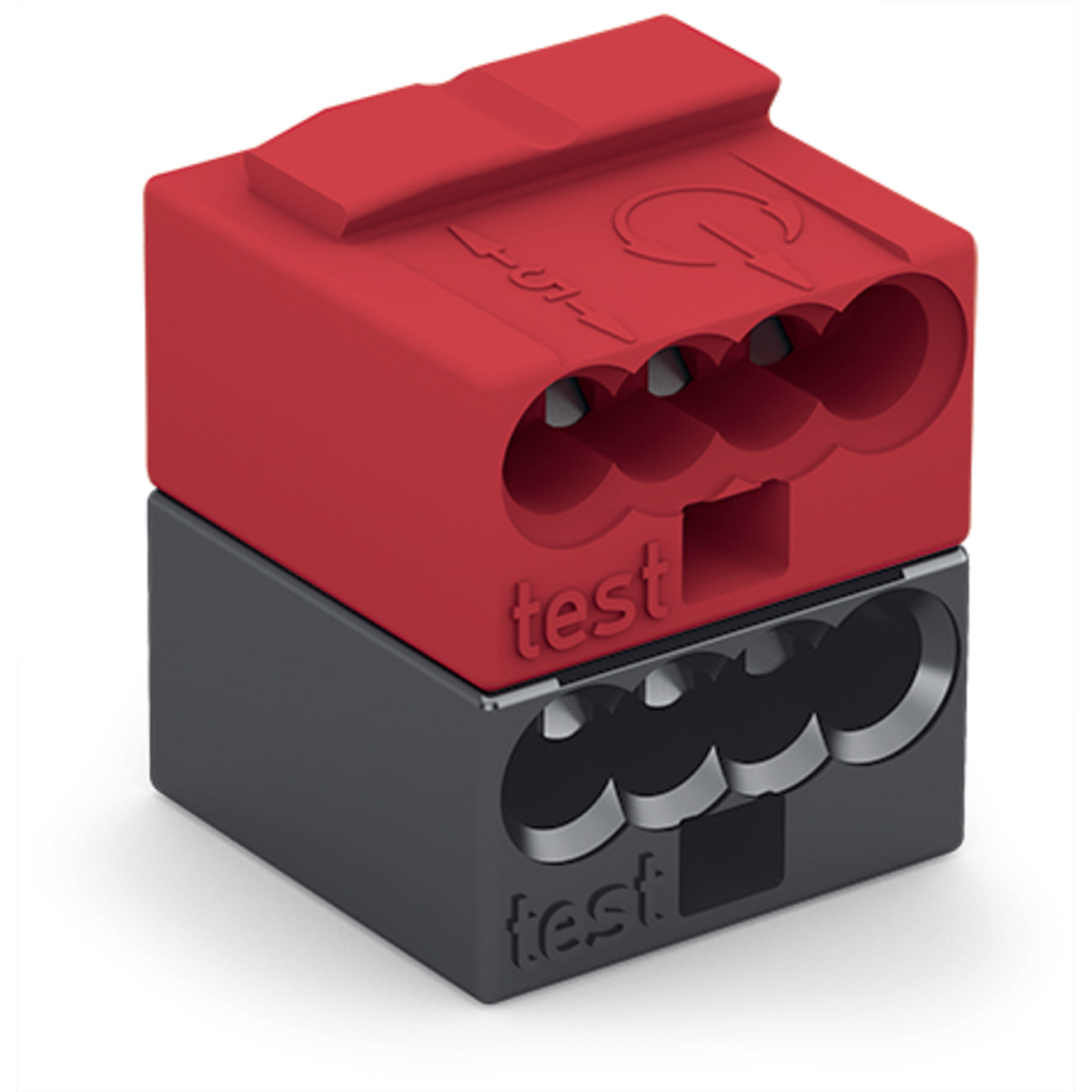

Wago - 243-211

WAGO component

Specifications

• Primary brand: WAGO
• GTIN code: 4055143962315
• Order code / Manufacturer SKU: 243-211
• Manufacturer product status: Commercialized
• EAN code: 4044918442831
• Manufacturer description: 4-conductor modular PCB connector; PUSH WIRE; 0.8mm diam.; Pin spacing 5.75mm; 2-pole; for individual solder pins; for KNX; dark gray/red
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 250V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 4kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 4kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 630V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 4kV|Electrical data - Ratings per IEC/EN - Rated current -- 6A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Connection data - Clamping units -- 8|Connection data - Total number of potentials -- 2|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- PUSH WIRE|Connection data - Connection 1 - Solid conductor -- 22...20 AWG|Connection data - Connection 1 - Conductor diameter -- 0.6...0.8mm / 22...20 AWG|Connection data - Connection 1 - Conductor diameter (note) -- When using different conductor diameters|Connection data - Connection 1 - Strip length -- 5...6mm / 0.2...0.24"|Connection data - Connection 1 - Pole number -- 2|Connection data - Connection 2 - Solid conductor -- 18 AWG|Connection data - Connection 2 - Conductor diameter -- 1mm / 18 AWG|Connection data - Connection 2 - Conductor diameter (note) -- When using identical conductor diameters|Physical data - Width -- 10mm / 0.394"|Physical data - Height -- 11.5mm / 0.453"|Physical data - Depth -- 10mm / 0.394"|Plug-in connection - Contact type (pluggable connector) -- Female connector/socket|Plug-in connection - Connector (connection type) -- for conductor|Material data - Color -- dark gray/red|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.024MJ|Material data - Weight -- 1.5g|Environmental requirements - Limit temperature range -- -60...+105°C|Environmental requirements - Continuous operating temperature -- -60°C|Commercial data - eClass 10.0 -- 27-14-11-04|Commercial data - eClass 9.0 -- 27-14-11-04|Commercial data - ETIM 9.0 -- EC000446|Commercial data - ETIM 8.0 -- EC000446|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 500 (50) pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4055143962315|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-04
• eCl@ss 9.0: 27-14-11-04
• ETIM 8.0: EC000446
• ETIM 9.0: EC000446
• GTIN: 4055143962315
• Packaging type: box
• PU (SPU): 500 (50) pcs

Connection data

• Clamping units: 8
• Connection 1 - Conductor diameter: 0.6 … 0.8 mm / 22 … 20 AWG
• Connection 1 - Conductor diameter (note): When using different conductor diameters
• Connection 1 - Connection technology: PUSH WIRE^®
• Connection 1 - Pole number: 2
• Connection 1 - Solid conductor: 22 … 20 AWG
• Connection 1 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Connection 2 - Conductor diameter: 1 mm / 18 AWG
• Connection 2 - Conductor diameter (note): When using identical conductor diameters
• Connection 2 - Solid conductor: 18 AWG
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 2

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 630V
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 6A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 4kV
• Ratings per IEC/EN - Rated voltage (III/2): 320V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 °C
• Limit temperature range: -60 … +105 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: dark gray/red
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.024MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 1.5g

Physical data

• Depth: 10 mm / 0.394 inches
• Height: 11.5 mm / 0.453 inches
• Width: 10 mm / 0.394 inches

Plug-in connection

• Connector (connection type): for conductor
• Contact type (pluggable connector): Female connector/socket
