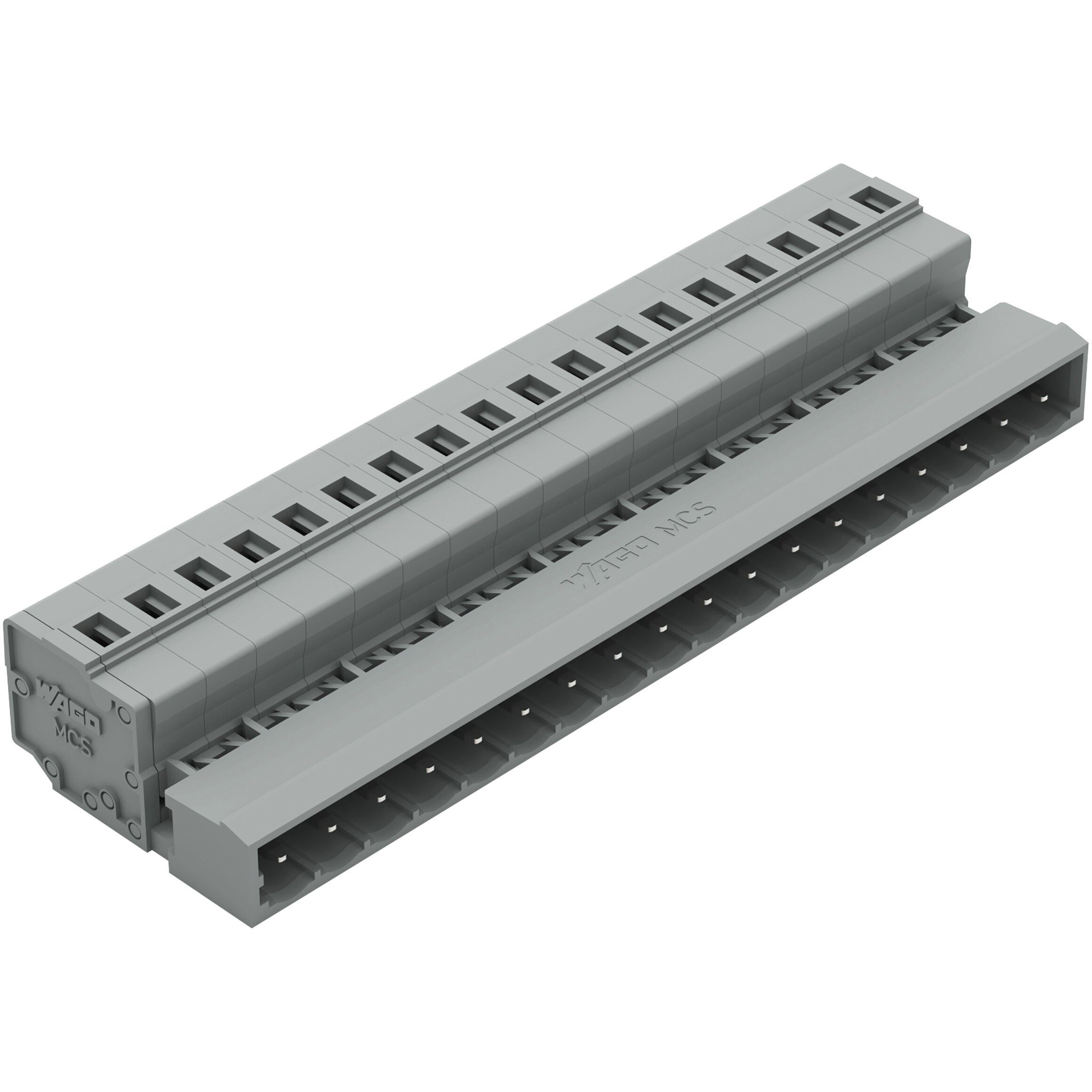

Wago - 231-618

WAGO component - equivalent to 231618

Specifications

• Primary brand: WAGO
• GTIN code: 4044918259026
• Order code / Manufacturer SKU: 231-618
• Manufacturer product status: Commercialized
• Equivalent to: 231618
• EAN code: 4044918259026
• Manufacturer description: 1-conductor male connector; CAGE CLAMP; 2.5mm2; Pin spacing 5mm; 18-pole; 2.5mm2; gray
• Manufacturer product specifications: Notes - Safety Information -- The MCS - MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended; these connectors must not be connected/disconnected when live or under load.When used as intended; these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins; which can be touched; are not live when unmated.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 4kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 4kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 630V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 4kV|Electrical data - Ratings per IEC/EN - Rated current -- 12A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 15A|Electrical data - Ratings per UL - Rated voltage UL (Use Group D) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group D) -- 10A|Electrical data - Ratings per UL 1977 - Rated voltage (UL 1977) -- 600V|Electrical data - Ratings per UL 1977 - Rated current UL 1977 -- 15A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 15A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group D) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group D) -- 10A|Connection data - Clamping units -- 18|Connection data - Total number of potentials -- 18|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Operating tool|Connection data - Connection 1 - Actuation direction 1 -- Operation parallel to conductor entry|Connection data - Connection 1 - Actuation direction 2 -- Operation perpendicular to conductor entry|Connection data - Connection 1 - Solid conductor -- 0.08...2.5mm2 / 28...12 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.08...2.5mm2 / 28...12 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...1.5mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25...2.5mm2|Connection data - Connection 1 - Strip length -- 8...9mm / 0.31...0.35"|Connection data - Connection 1 - Pole number -- 18|Connection data - Connection 1 - Conductor entry direction to mating direction -- 0°|Physical data - Pin spacing -- 5mm / 0.197"|Physical data - Width -- 93.2mm / 3.669"|Physical data - Height -- 14.3mm / 0.563"|Physical data - Depth -- 27.5mm / 1.083"|Mechanical data - Variable coding -- Yes|Mechanical data - Anti-rotation protection -- Yes|Plug-in connection - Contact type (pluggable connector) -- Male connector/plug|Plug-in connection - Connector (connection type) -- for conductor|Plug-in connection - Mismating protection -- No|Plug-in connection - Plugging without loss of pin spacing -- No|Plug-in connection - Locking of plug-in connection -- none|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.676MJ|Material data - Weight -- 26.8g|Environmental requirements - Limit temperature range -- -60...+100°C|Environmental requirements - Processing temperature -- -35...+60°C|Environmental requirements - Environmental Testing (Environmental Conditions) - Test specification / Railway applications - / Rolling stock - / Electronic equipment -- DIN EN 50155 (VDE 0115-200)2022-06|Environmental requirements - Environmental Testing (Environmental Conditions) - Test procedure / Railway applications - / Rolling stock equipment - / Shock and vibration tests -- DIN EN 61373 (VDE 0115-0106)2011-04|Environmental requirements - Environmental Testing (Environmental Conditions) - Spectrum/Installation location -- Service life test; Category 1; Class A/B|Environmental requirements - Environmental Testing (Environmental Conditions) - Function test with noise-like vibration -- Test passed according to Section 8 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Frequency -- f₁ = 5Hz to f₂ = 150Hz|Environmental requirements - Environmental Testing (Environmental Conditions) - Acceleration -- 0.101g (highest test level used for all axes) / 0.572g (highest test level used for all axes) / 5g (highest test level used for all axes)|Environmental requirements - Environmental Testing (Environmental Conditions) - Test duration per axis -- 10 min. / 5 h|Environmental requirements - Environmental Testing (Environmental Conditions) - Test directions -- X; Y and Z axes|Environmental requirements - Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration -- Test passed according to Section 9 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Extended test scope Monitoring for contact faults/interruptions -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Extended test scope Voltage drop measurement before and after each axis -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock test -- Test passed according to Section 10 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock form -- Half sine|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock duration -- 30ms|Environmental requirements - Environmental Testing (Environmental Conditions) - Number of shocks per axis -- 3 pos. und 3 neg.|Environmental requirements - Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment -- Passed|Commercial data - Product Group -- 3 (Multi Conn. System)|Commercial data - eClass 10.0 -- 27-44-03-09|Commercial data - eClass 9.0 -- 27-44-03-09|Commercial data - ETIM 9.0 -- EC002638|Commercial data - ETIM 8.0 -- EC002638|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 25 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4044918259026|Commercial data - Customs tariff number -- 85366930000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts

Commercial data

• Country of origin: DE
• Customs tariff number: 85366930000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-03-09
• eCl@ss 9.0: 27-44-03-09
• ETIM 8.0: EC002638
• ETIM 9.0: EC002638
• GTIN: 4044918259026
• Packaging type: box
• Product Group: 3 (Multi Conn. System)
• PU (SPU): 25 pcs

Connection data

• Clamping units: 18
• Connection 1 - Actuation direction 1: Operation parallel to conductor entry
• Connection 1 - Actuation direction 2: Operation perpendicular to conductor entry
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Conductor entry direction to mating direction: 0°
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Connection 1 - Pole number: 18
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 18

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 15A
• Ratings per CSA - Rated current CSA (Use Group D): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 300V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 630V
• Ratings per IEC/EN - Nominal voltage (III/3): 320V
• Ratings per IEC/EN - Rated current: 12A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 4kV
• Ratings per IEC/EN - Rated voltage (III/2): 320V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 15A
• Ratings per UL - Rated current UL (Use Group D): 10A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group D): 300V
• Ratings per UL 1977 - Rated current UL 1977: 15A
• Ratings per UL 1977 - Rated voltage (UL 1977): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Limit temperature range: -60 … +100 °C
• Processing temperature: -35 … +60 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.676MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 26.8g

Mechanical data

• Anti-rotation protection: Yes
• Variable coding: Yes

Notes

• Safety Information: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers|Gold-plated or partially gold-plated contact surfaces|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Physical data

• Depth: 27.5 mm / 1.083 inches
• Height: 14.3 mm / 0.563 inches
• Pin spacing: 5 mm / 0.197 inches
• Width: 93.2 mm / 3.669 inches

Plug-in connection

• Connector (connection type): for conductor
• Contact type (pluggable connector): Male connector/plug
• Locking of plug-in connection: none
• Mismating protection: No
• Plugging without loss of pin spacing: No
