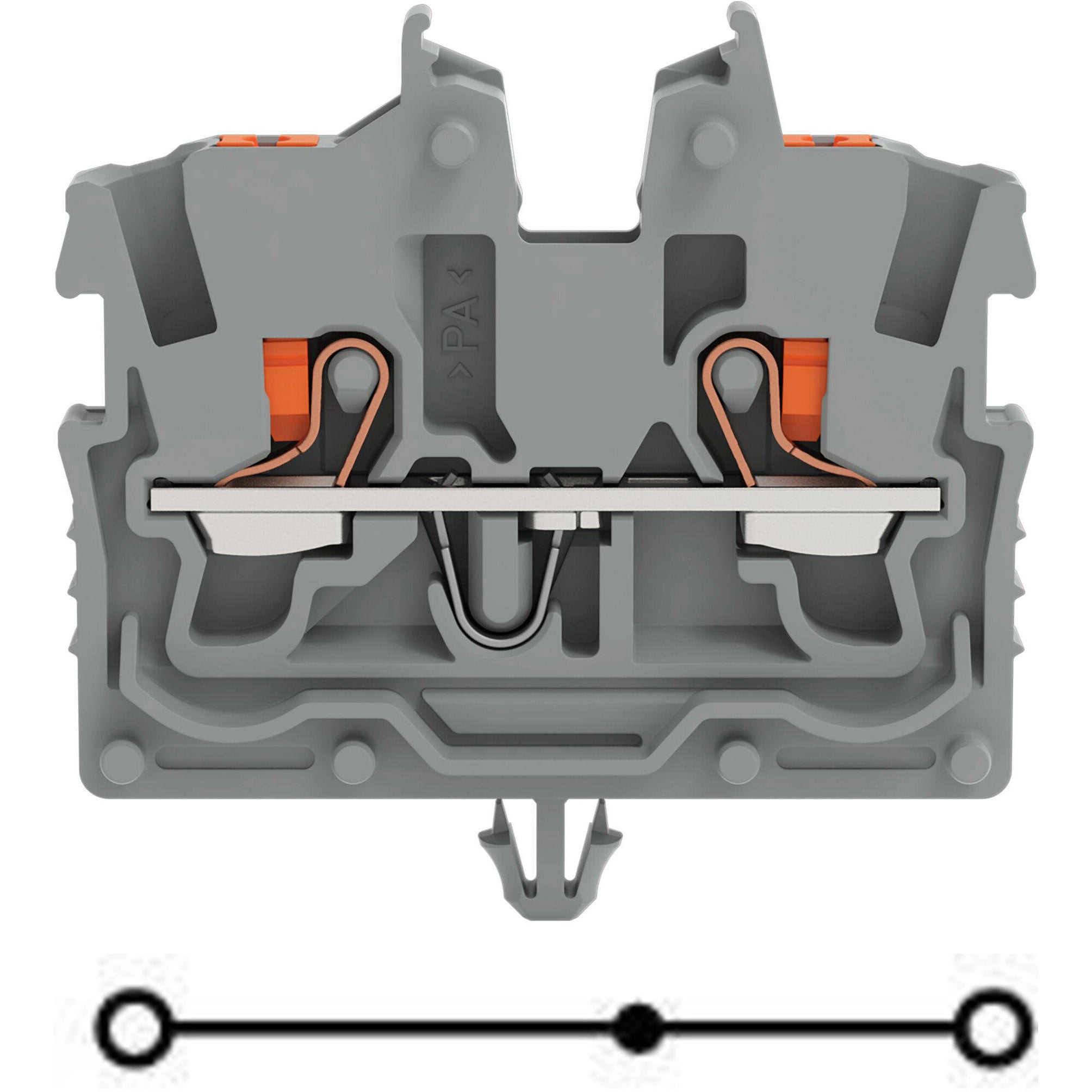

Feed-through/thru miniature terminal block with 1-deck/level + btn. + snap-in mounting foot + side/lateral and center marking slots - Suitable for Ex e II applications - with test port - WAGO (2250 TOPJOB S series) - Gray - 1 feed-through pole (1P) / 2-wires (1 push-in + 1 push-in) (1+1) - 1mm2 nominal cross-section - for 0.14mm2...1.5mm2 / for #24AWG...#16AWG - Rated current 13.5A / 17.5A - with Push-in CAGE CLAMP spring connections - Mounts on DIN rail or surface via accessory snap-in foot mounting (3.5mm width) - equivalent to 2250311

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru miniature terminal block
• Design: 1-deck/level|btn.|snap-in mounting foot|side/lateral and center marking slots|1 jumper slot|Suitable for Ex e II applications|with test port
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 13.5A|(IEC) 17.5A|(UL) 10A|(CSA) 10A|(Ex e II) 13.5A|(Ex e II with jumper) 12A
• Color: Gray
• Connection capacity: 2-wires (1 push-in + 1 push-in) (1+1)
• Rated operating voltage (Ue): (IEC) 500V|(UL) 300V|(CSA) 300V|(Ex e II) 352V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.14mm2...1.5mm2 fine stranded or solid conductors|for 0.14mm2...1mm2 fine stranded conductors with insulated ferrule|for 0.5mm2...1mm2 fine stranded conductors with ferrule; push-in termination|for 0.5mm2...1.5mm2 solid conductors; push-in termination|for #24AWG...#16AWG fine stranded or solid conductors|for #24AWG...#18AWG fine stranded conductors with insulated ferrule|for #20AWG...#18AWG fine stranded conductors with ferrule; push-in termination|for #20AWG...#16AWG solid conductors; push-in termination|1mm2 nominal cross-section
• Mounting mode: Mounts on DIN rail or surface via accessory snap-in foot
• Dimensions: H27.2mm x W3.5mm x D33.2mm
• Net Width (mm): 3.5mm
• Material: Polyamide (PA) 66
• GTIN code: 4055143965637
• ETIM code: EC001284
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 2250-311
• Manufacturer product status: Commercialized
• Equivalent to: 2250311
• EAN code: 4055143965637
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL 7840|- CSA - CSA - C22.2 No. 158 - certificate 80034182|- cURus - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|- KEMA/KEUR - DEKRA Certification B.V. - EN 60998 - certificate 71-113957|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- ATEX - Physikalisch Technische Bundesanstalt - EN IEC 60079-0 - certificate PTB 19 ATEX 1019 U (II 2G Ex eb IIC Gb or I M 2 Ex eb I Mb)|- CCC - CNEX - GB/T 3836.3 - certificate 2020312313000289 (Ex eb IIC Gb / Ex eb I Mb)|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079 - certificate IECEx PTB 19.0050U (Ex eb IIC Gb or EX eb I Mb)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 22.0014 U|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: India
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru miniature terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: IN
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4055143965637
• Packaging type: box
• PU (SPU): 100 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Push-button
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 1 mm² / 20 … 18 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.14 … 1 mm² / 24 … 18 AWG
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.14 … 1 mm² / 24 … 18 AWG
• Connection 1 - Nominal cross-section: 1 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Connection 1 - Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
• Connection 1 - Strip length: 9 … 11 mm / 0.35 … 0.43 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of jumper slots: 1
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ex information - Rated current (Ex e II): 13.5A
• Ex information - Rated current (Ex e II) with jumper: 12A
• Ex information - Rated voltage EN (Ex e II): 352V
• Ex information - Ratings per: ATEX: PTB 19 ATEX 1019 U / IECEx: PTB 19.0050U (Ex eb IIC Gb)
• Ex information - Reference hazardous areas: See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
• Power Loss - Power loss, per pole (potential): 0.434W
• Power Loss - Rated current I_N for specified power loss: 13.5A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.002Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 10A
• Ratings per CSA - Rated current CSA (Use Group C): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group C): 300V
• Ratings per IEC/EN - Current at conductor cross-section (max.) mm²: 17.5A
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 13.5A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60998-2-2
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 10A
• Ratings per UL - Rated current UL (Use Group C): 10A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group C): 300V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.018MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 2.4g

Mechanical data

• Marking level: Center/side marking
• Mounting type: Snap-in foot

Physical data

• Depth: 33.2 mm / 1.307 inches
• Height from the surface: 27.2 mm / 1.071 inches
• Width: 3.5 mm / 0.138 inches
