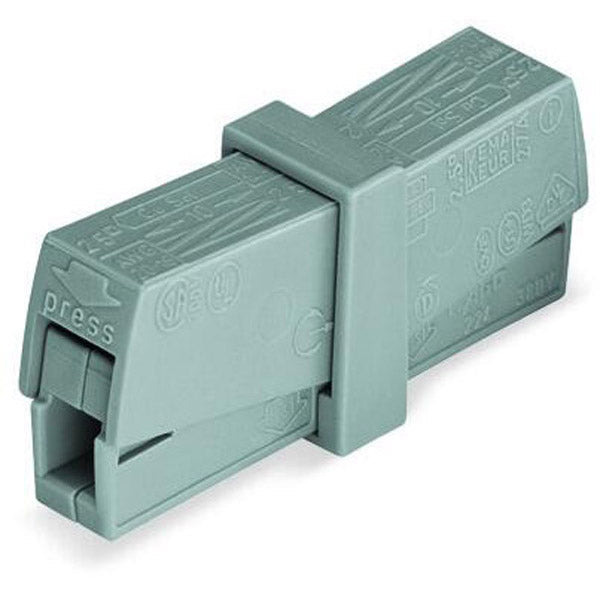

Wago - 224-201

Lighting connector - WAGO (224 series) - for 0.5mm2...2.5mm2 / for #20AWG...#16AWG - Rated current 24A - Gray color - with CAGE CLAMP spring connections - equivalent to 224201

Specifications

• Primary brand: WAGO
• Functions: Lighting connector
• Rated current: 24A
• Color: Gray
• Rated operating voltage (Ue): 400V
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...2.5mm2 fine stranded or solid conductor|for #20AWG...#16AWG fine stranded and solid conductors
• Dimensions: H15.5mm x W8mm x D42mm
• Ambient air temperature for operation: +60°C
• Customs Tariff Number: 85369010000
• ETIM code: EC000446
• eClass code: 27-14-11-03
• GTIN code: 4044918818407
• Order code / Manufacturer SKU: 224-201
• Manufacturer product status: Commercialized
• Equivalent to: 224201
• EAN code: 4044918818407
• Compliant with standard(s): General approvals|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC07003020546|- CSA - DEKRA Certification B.V. - C22.2 - certificate 1053495|- UL - UL International Germany GmbH - EN 60998 - certificate D-05895-A1 (EN60998-1 EN60998-2-2)|- UL - UL International Germany GmbH - EN 60998 - certificate CCA-2617-A1|- UL - UL International Germany GmbH - UL 486C - certificate E69654|- VDE - VDE Pruf- und Zertifizierungsinstitut - EN 60998 - certificate 40022792|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 18-HG1755093-PDA|- BV - Bureau Veritas S.A. - EN 60998 - certificate 11914/D0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - EN 60998 - certificate TAE000015T|- LR - Lloyds Register - EN 60998 - certificate LR22207029TA|RoHS compliant
• Location of origin: Switzerland
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Lighting connector - WAGO

Commercial data

• Country of origin: CH
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-03
• eCl@ss 9.0: 27-14-11-03
• ETIM 8.0: EC000447
• ETIM 9.0: EC000446
• GTIN: 4044918818407
• Packaging type: box
• PU (SPU): 50 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Push-in
• Connection 1 - Connectable conductor materials: Copper|Aluminum
• Connection 1 - Connectable conductor materials (note): Terminating Aluminum Conductors (not for use in North America) WAGO Spring-Clamp Terminal Blocks are also suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

  “Alu-Plus” Contact Paste Advantages:

  • Automatically destroys the oxide film during clamping.
  • Prevents fresh oxidation at the clamping point.
  • Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
  • Provides long-term protection against corrosion.


  Using terminal blocks with CAGE CLAMP^® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.

  It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

  Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
  2.5 mm² = 16 A
  4 mm² = 22 A
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 2.5 mm² / 20 … 16 AWG
• Connection 1 - Solid conductor: 0.5 … 2.5 mm² / 20 … 16 AWG
• Connection 1 - Strip length: 9 … 11 mm / 0.35 … 0.43 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 400V
• Ratings per IEC/EN - Rated current: 24A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Ratings per: EN 60664

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): +60 °C

Material data

• Color: gray
• Fire load: 0.097MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.6g

Notes

• Safety Information: in grounded power lines

Physical data

• Depth: 42 mm / 1.654 inches
• Height: 15.5 mm / 0.61 inches
• Width: 8 mm / 0.315 inches
