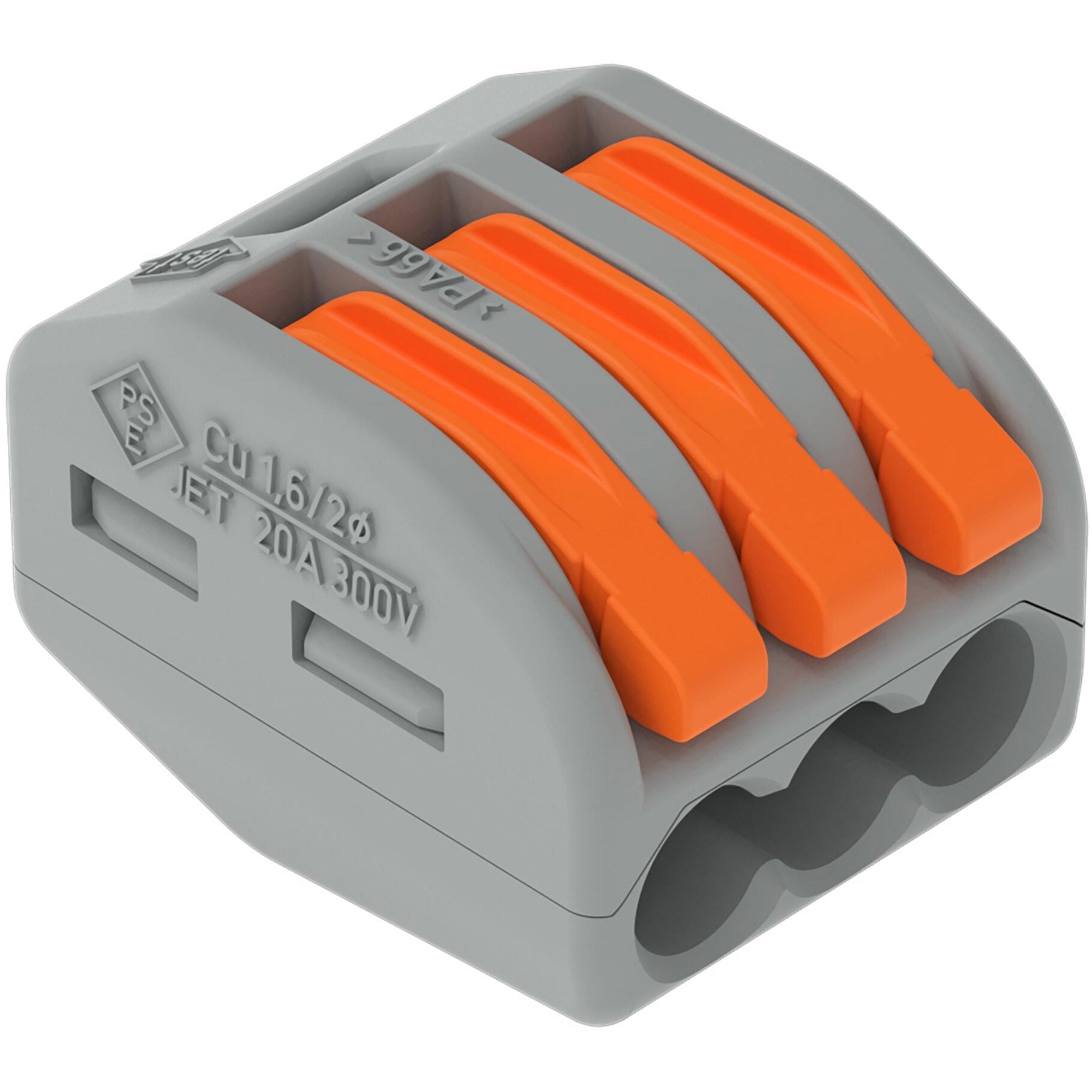

3-wire splicing connector with levers - WAGO (222 series) - for 0.08mm2...4mm2 / for #28AWG...#12AWG - Rated current (IEC) 32A - Gray housing / Orange lever color - with CAGE CLAMP spring connections - equivalent to 222413

Specifications

• Primary brand: WAGO
• Functions: 3-wire splicing connector with levers
• Temperature: Continuous operating temperature +85°C
• Rated current: (IEC) 32A
• Color: Gray housing|Orange lever
• Rated operating voltage (Ue): (IEC) 400V
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...4mm2 fine stranded conductors|for 0.08mm2...2.5mm2 stranded conductors|for 0.08mm2...2.5mm2 solid conductors|for #28AWG...#12AWG fine stranded or stranded or solid conductors
• Dimensions: H14.5mm x W17mm x D20.5mm
• Ambient air temperature for operation: +40°C
• ETIM code: EC000446
• Customs Tariff Number: 85369010000
• GTIN code: 4017332955676
• eClass code: 27-14-11-04
• Order code / Manufacturer SKU: 222-413
• Manufacturer product status: Commercialized
• Equivalent to: 222413
• Compliant with standard(s): General approvals|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC07003020546|- ENEC 15 - UL International Demko A/S - EN 60998 - certificate ENEC-01360|- UL - UL International Germany GmbH - UL 486C - certificate E69654|- UL_Listed_64KA - UL International Germany GmbH - UL 467 - certificate E201573|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 18-HG1755093-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - EN 60998 - certificate TAE000015T|- LR - Lloyds Register - EN 60998 - certificate LR22207029TA|RoHS compliant|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: 3-wire splicing connector with levers - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-04
• eCl@ss 9.0: 27-14-11-04
• ETIM 8.0: EC000446
• ETIM 9.0: EC000446
• GTIN: 4017332955676
• Packaging type: box
• Product Group: 7 (Push Wire Conn.)
• PU (SPU): 500 (50) pcs

Connection data

• Clamping units: 3
• Connection 1 - Actuation type: Lever
• Connection 1 - Connectable conductor materials: Aluminum|Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 9 … 10 mm / 0.35 … 0.39 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 400V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Ratings per: EN 60664

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): +40 °C
• Continuous operating temperature: 85 °C

Material data

• Actuator color: orange
• Color: gray
• Fire load: 0.088MJ
• Flammability class per UL94: V0
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.3g

Notes

• Safety Information: in grounded power lines
• Safety management note: NOTICE: Observe installation and safety instructions!


  • Only to be used by electricians!
  • Do not work under voltage/load!
  • Use only for proper use!
  • Observe national regulations/standards/guidelines!
  • Observe technical specifications for the products!
  • Observe the number of permissible potentials!
  • Do not use damaged/dirty components!
  • Observe conductor types, cross-sections and strip lengths!
  • Insert conductor until it hits the product‘s backstop!
  • Use original accessories!


  To be sold only with installation instructions!

Physical data

• Depth: 20.5 mm / 0.807 inches
• Height: 14.5 mm / 0.571 inches
• Width: 17 mm / 0.669 inches
