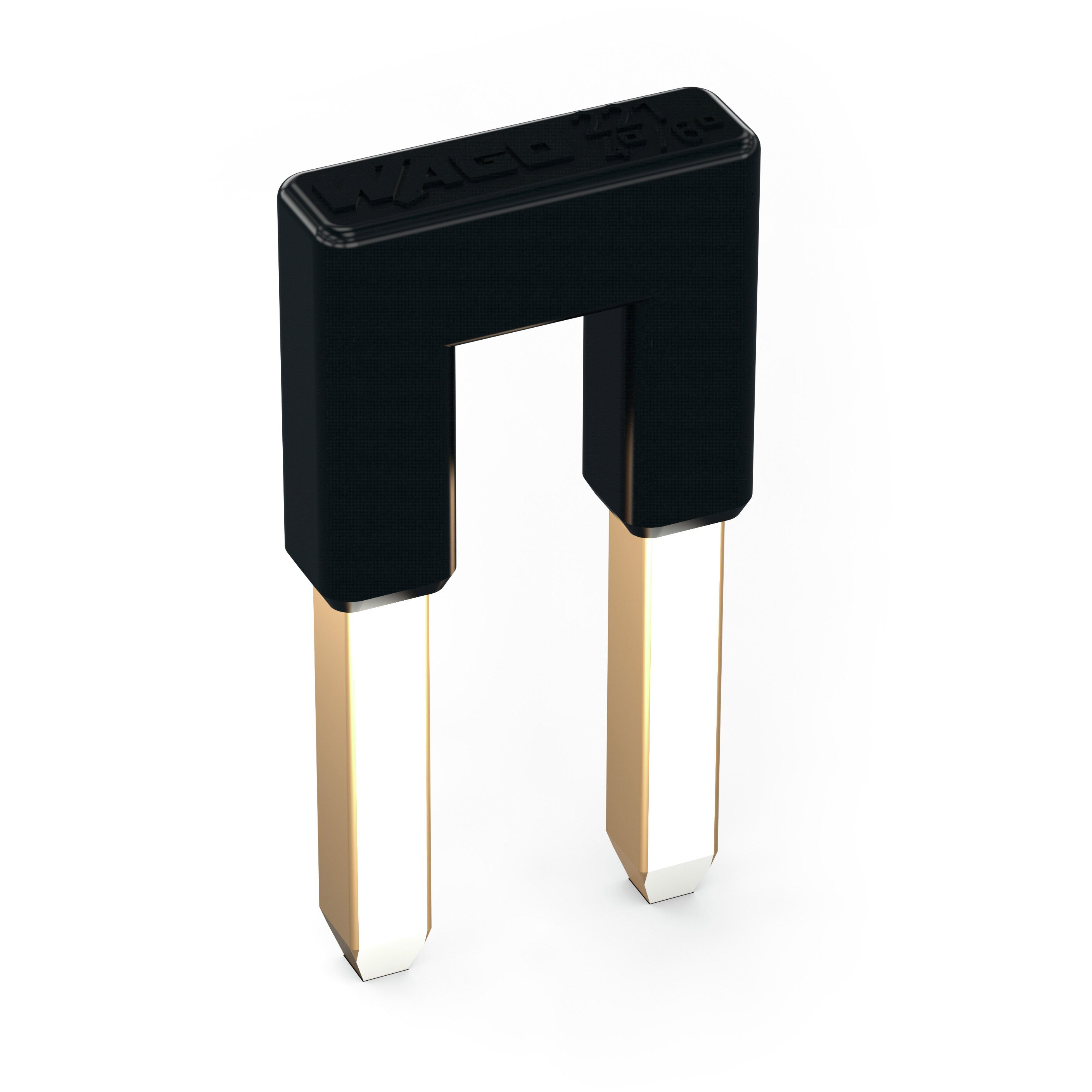

Wago - 221-942

Insulated comb-style jumper bar - 2-way - WAGO (221 series) - 2-poles (2P) - Rated current 41A - Dark Gray color - equivalent to 221942

Specifications

• Primary brand: WAGO
• Functions: Insulated comb-style jumper bar
• Design: 2-way
• Poles: 2-poles (2P)
• Temperature: Continuous operating temperature -60°C...+105°C
• Rated current: 41A
• Color: Dark Gray
• Rated operating voltage (Ue): 400V
• Dimensions: H3.8mm x W12.3mm x D23.9mm
• Material: Polyamide (PA) 66
• GTIN code: 4055144067965
• Customs Tariff Number: 85366990990
• ETIM code: EC000489
• Order code / Manufacturer SKU: 221-942
• Manufacturer product status: Commercialized
• Equivalent to: 221942
• EAN code: 4055144067965
• Compliant with standard(s): RoHS compliant
• Location of origin: China
• Level 1 category: Electrical components
• Product title: Insulated comb-style jumper bar - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• GTIN: 4055144067965
• Packaging type: Bag
• PU (SPU): 5 pcs

Electrical data

• Ratings per IEC/EN - Nominal voltage (III/3): 400V
• Ratings per IEC/EN - Rated current: 41A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C

Material data

• Color: dark gray
• Insulation material (main housing): Polyamide (PA66)
• Note (material data):
  Information on material specifications can be found here

• Weight: 2.7g
• Weight of insulation material: 0.28g

Physical data

• Depth: 23.9 mm / 0.941 inches
• Height: 3.8 mm / 0.15 inches
• Jumper assignment: 1-2
• Width: 12.3 mm / 0.484 inches
