Wago - 221-615

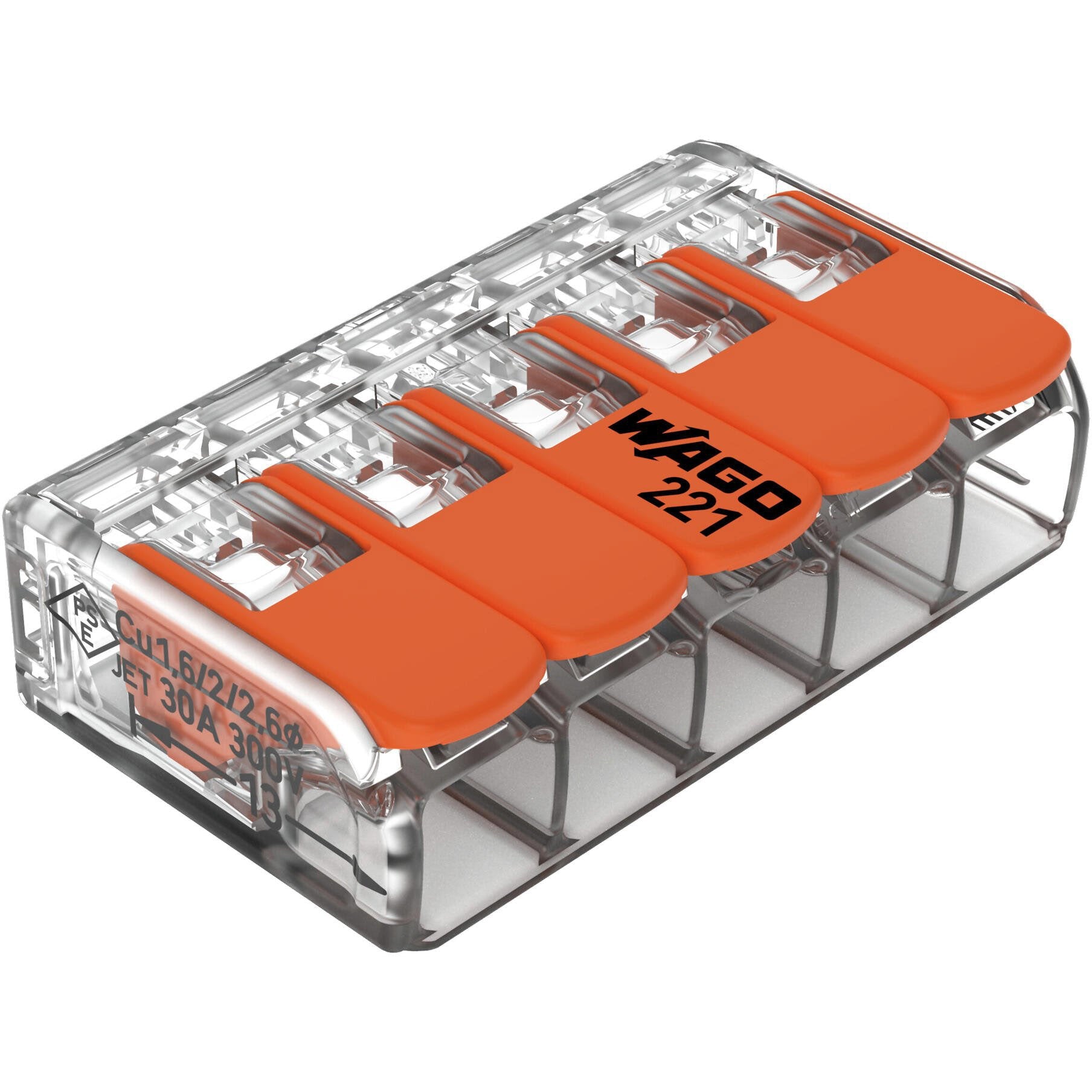

5-wire splicing connector with levers - WAGO (221 series) - for 0.5mm2...6mm2 / for #20AWG...#10AWG - Rated current (IEC) 41A - Clear/transparent housing / Orange lever color - with CAGE CLAMP spring connections - equivalent to 221615

Specifications

• Primary brand: WAGO
• Functions: 5-wire splicing connector with levers
• Temperature: Continuous operating temperature +105°C
• Rated current: (IEC) 41A|(UL) 30A
• Color: Clear/transparent housing|Orange lever
• Rated operating voltage (Ue): (IEC) 450V|(UL) 600V
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...6mm2 fine stranded or stranded or solid conductor|for #20AWG...#10AWG fine stranded or stranded or solid conductors
• Dimensions: H10.1mm x W36.7mm x D21.1mm
• Material: Polycarbonate (PC) housing
• Ambient air temperature for operation: +85°C
• Customs Tariff Number: 85369010000
• eClass code: 27-14-11-04
• GTIN code: 4055143715478
• ETIM code: EC000446
• Order code / Manufacturer SKU: 221-615
• Manufacturer product status: Commercialized
• Equivalent to: 221615
• Compliant with standard(s): General approvals|- CB - DEKRA Certification B.V. - IEC 60998 - certificate NL-81003|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC16003140469|- cULus_Listed_667F - Underwriters Laboratories Inc. - UL 486C - certificate E69654|- ENEC 05 - DEKRA Certification B.V. - EN 60998 - certificate 71-123784|- UL_Listed_64KA - UL International Germany GmbH - UL 467 - certificate E201573|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60998 - certificate 18-HG1755093-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - EN 60998 - certificate TAE000015T|- LR - Lloyds Register - EN 60998 - certificate LR22207029TA|RoHS compliant|material group IIIa|V-2 flammability rating
• Location of origin: Switzerland
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: 5-wire splicing connector with levers - WAGO

Commercial data

• Country of origin: CH
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-04
• eCl@ss 9.0: 27-14-11-04
• ETIM 8.0: EC000446
• ETIM 9.0: EC000446
• GTIN: 4055143715478
• Packaging type: box
• PU (SPU): 150 (15) pcs

Connection data

• Clamping units: 5
• Connection 1 - Actuation type: Lever
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Nominal cross-section: 6 mm² / 10 AWG
• Connection 1 - Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Strip length: 12 … 14 mm / 0.47 … 0.55 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 450V
• Ratings per IEC/EN - Rated current: 41A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Ratings per: EN 60664
• Ratings per UL - Approvals per: UL 486C
• Ratings per UL - Rated current UL (Use Group C): 30A
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): +85 °C
• Continuous operating temperature: 105 °C
• Temperature marking per EN 60998: T85

Material data

• Actuator color: orange
• Color: transparent
• Cover color: transparent
• Fire load: 0.138MJ
• Flammability class per UL94: V2
• Insulation material (main housing): Polycarbonate (PC)
• Material group: IIIa
• Note (material data):
  Information on material specifications can be found here

• Weight: 7.1g

Notes

• Safety Information: in grounded power lines
• Safety management note: NOTICE: Observe installation and safety instructions!


  • Only to be used by electricians!
  • Do not work under voltage/load!
  • Use only for proper use!
  • Observe national regulations/standards/guidelines!
  • Observe technical specifications for the products!
  • Observe the number of permissible potentials!
  • Do not use damaged/dirty components!
  • Observe conductor types, cross-sections and strip lengths!
  • Insert conductor until it hits the product‘s backstop!
  • Use original accessories!


  To be sold only with installation instructions!

Physical data

• Depth: 21.1 mm / 0.831 inches
• Height: 10.1 mm / 0.398 inches
• Width: 36.7 mm / 1.445 inches
