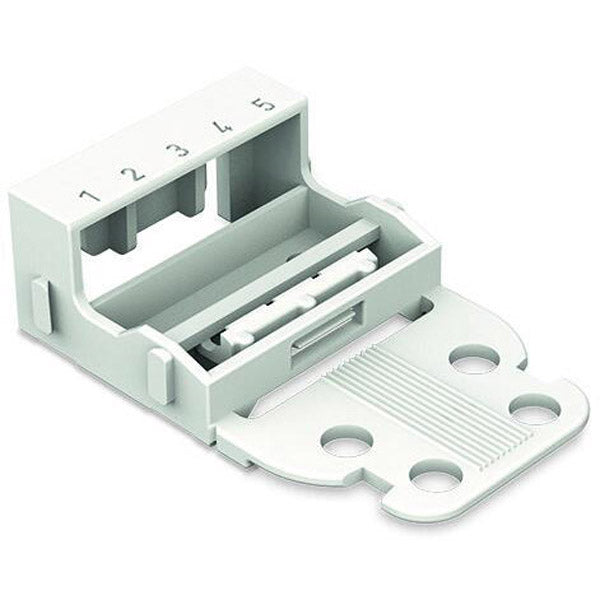

Wago - 221-515

Mounting carrier for horizontal mounting with snap-in mounting foot - WAGO (221 series) - for 4mm2 - White color - compatible with 5-conductor term. blck. - equivalent to 221515

Specifications

• Primary brand: WAGO
• Functions: Mounting carrier for horizontal mounting
• Design: snap-in mounting foot
• Color: White
• Cross-section: for 4mm2 conductor
• Dimensions: H21.4mm x W35mm x D52.8mm
• Material: Polyamide (PA) 66
• Technical compatibility with: 5-conductor term. blck.
• GTIN code: 4055143640893
• ETIM code: EC002848
• Customs Tariff Number: 39269097900
• eClass code: 27-14-11-92
• Order code / Manufacturer SKU: 221-515
• Manufacturer product status: Commercialized
• Equivalent to: 221515
• EAN code: 4055143640893
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Automation components
• Product title: Mounting carrier for horizontal mounting - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 39269097900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-92
• eCl@ss 9.0: 27-14-11-92
• ETIM 8.0: EC002848
• ETIM 9.0: EC002848
• GTIN: 4055143640893
• Packaging type: box
• PU (SPU): 50 (10) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: white
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 5g

Mechanical data

• Mounting type: with snap-in mounting foot for horizontal mounting
• Suitable: for 5-wire connectors (4 mm²)

Physical data

• Depth: 52.8 mm / 2.079 inches
• Height: 21.4 mm / 0.843 inches
• Height from the surface: 16.9 mm / 0.665 inches
• Width: 35 mm / 1.378 inches
