Wago - 221-502
$0.82
Sale price
$0.82
Regular price
Skip to product information
Wago - 221-502
$0.82
Sale price
$0.82
Regular price

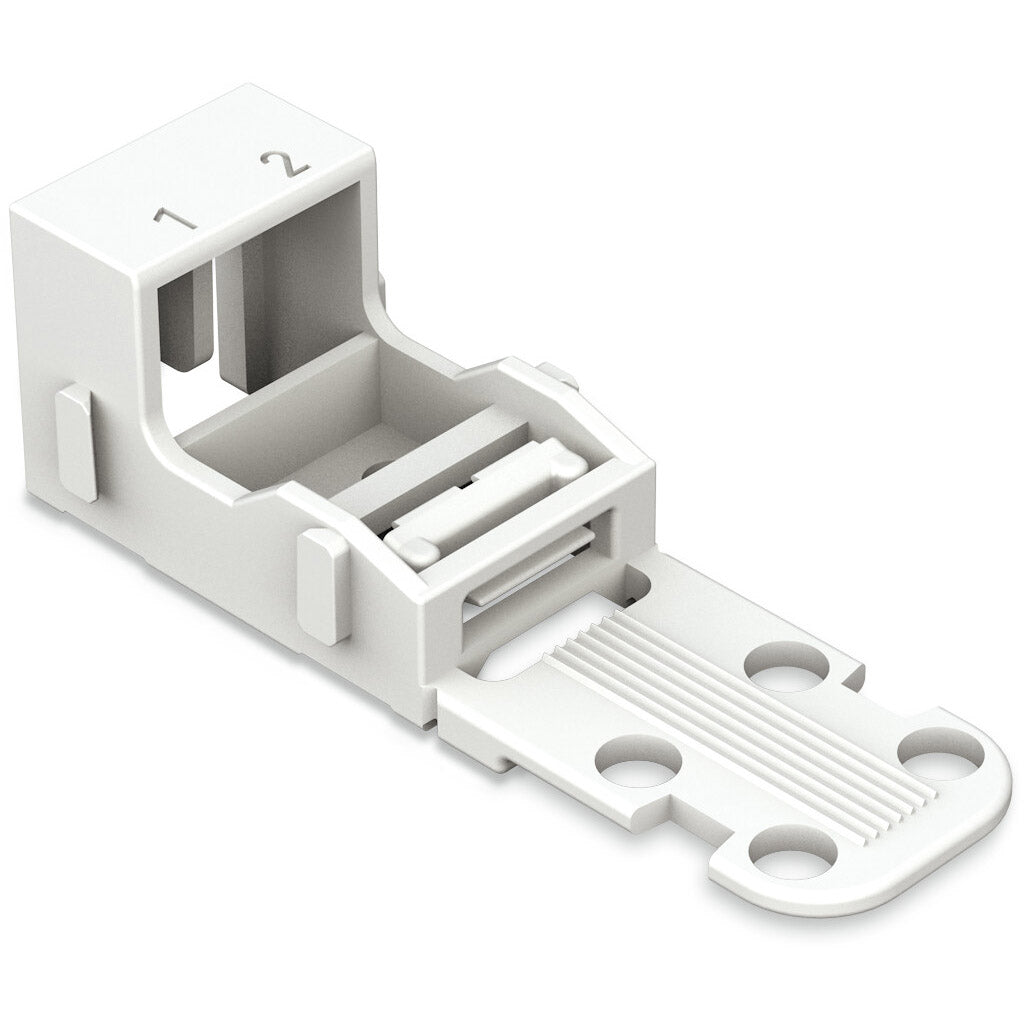

Mounting carrier for screw mounting - WAGO (221 series) - for 4mm2 - White color - compatible with 2-conductor term. blck. - equivalent to 221502
Specifications
- Primary brand: WAGO
- Functions: Mounting carrier for screw mounting
- Color: White
- Cross-section: for 4mm2 conductor
- Dimensions: H16.9mm x W18.1mm x D52.8mm
- Material: Polyamide (PA) 66
- Technical compatibility with: 2-conductor term. blck.
- eClass code: 27-14-11-92
- GTIN code: 4055143595827
- Customs Tariff Number: 39269097900
- ETIM code: EC002848
- Order code / Manufacturer SKU: 221-502
- Manufacturer product status: Commercialized
- Equivalent to: 221502
- EAN code: 4055143595827
- Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
- Location of origin: China
- Level 1 category: Automation components
- Product title: Mounting carrier for screw mounting - WAGO
Commercial data
- Country of origin: CN
- Customs tariff number: 39269097900
- ECCN: NO US CLASSIFICATION
- eCl@ss 10.0: 27-14-11-92
- eCl@ss 9.0: 27-14-11-92
- ETIM 8.0: EC002848
- ETIM 9.0: EC002848
- GTIN: 4055143595827
- Packaging type: box
- PU (SPU): 50 (10) pcs
Environmental Product Compliance
- RoHS Compliance Status: Compliant,No Exemption
Material data
- Color: white
- Fire load: 0.082MJ
- Flammability class per UL94: V0
- Insulation material (main housing): Polyamide (PA66)
- Material group: I
-
Note (material data):
Information on material specifications can be found here
- Weight: 2.7g
Mechanical data
- Mounting type: Screw mount
- Suitable: for 2-wire connectors (4 mm²)
Physical data
- Depth: 52.8 mm / 2.079 inches
- Height from the surface: 16.9 mm / 0.665 inches
- Width: 18.1 mm / 0.713 inches
