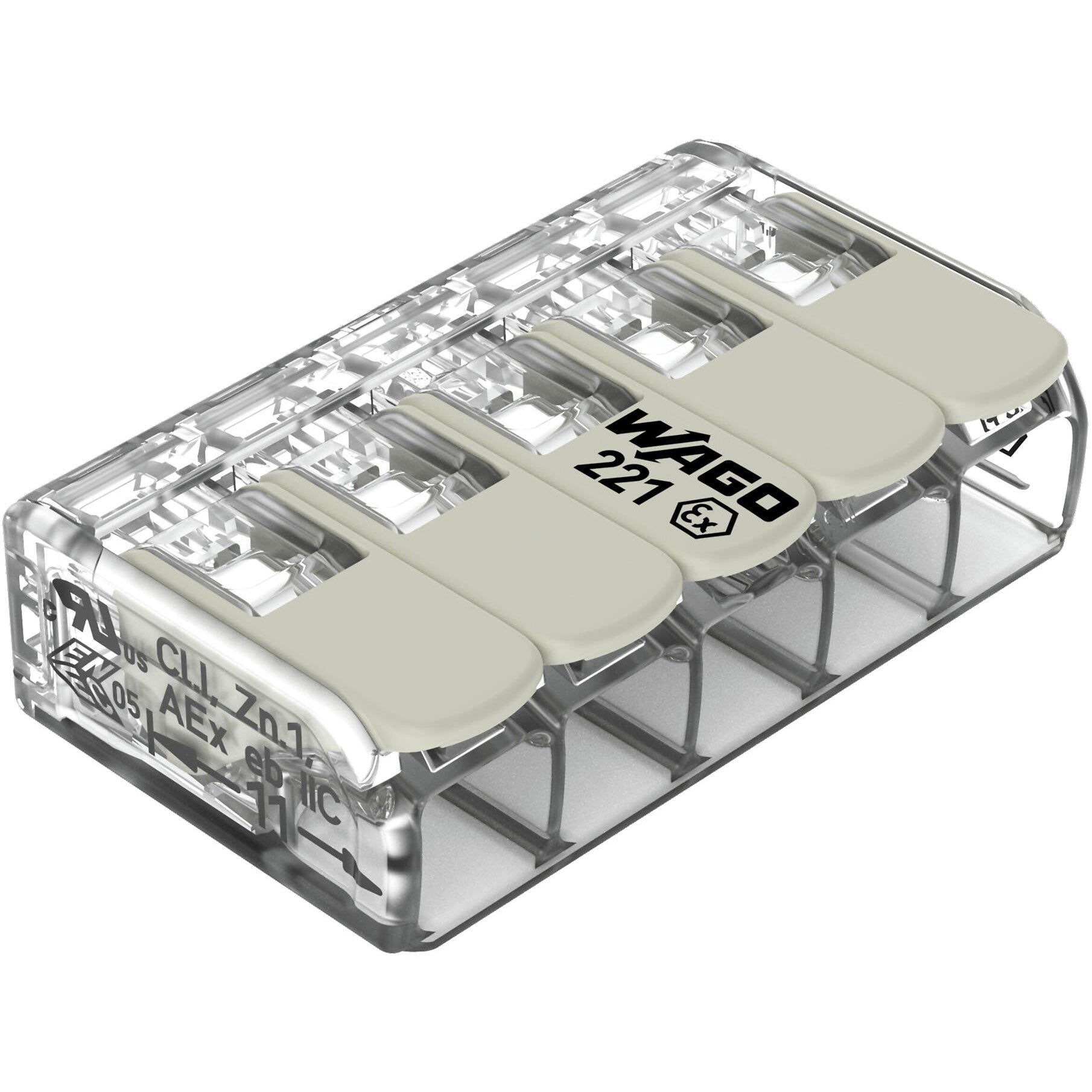

Wago - 221-485

5-wire splicing connector with levers - Suitable for Ex eb applications - WAGO (221 series) - for 0.14mm2...4mm2 / for #24AWG...#12AWG - Rated current (Ex e II) 32A - Clear/transparent housing / Light gray lever color - with CAGE CLAMP spring connections - equivalent to 221485

Specifications

• Primary brand: WAGO
• Functions: 5-wire splicing connector with levers
• Design: Suitable for Ex eb applications
• Temperature: Continuous operating temperature -55°C...+105°C
• Rated current: (Ex e II) 32A|(UL) 20A
• Color: Clear/transparent housing|Light gray lever
• Rated operating voltage (Ue): (UL) 440V|(Ex e II) 440V
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.14mm2...4mm2 fine stranded conductors|for 0.2mm2...4mm2 stranded conductors|for 0.2mm2...4mm2 solid conductors|for #24AWG...#12AWG fine stranded or stranded or solid conductors
• Dimensions: H8.4mm x W30mm x D18.6mm
• Material: Polycarbonate (PC) housing
• Ambient air temperature for storage: -40°C...+60°C
• ETIM code: EC000446
• eClass code: 27-14-11-04
• GTIN code: 4055143837330
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 221-485
• Manufacturer product status: Commercialized
• Equivalent to: 221485
• EAN code: 4055143837330
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7990|- cULus_Listed_667F - Underwriters Laboratories Inc. - UL 486C - certificate E69654|- ENEC 05 - DEKRA Certification B.V. - EN 60669 / EN 60998 - certificate 71-127529|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- LR - Lloyds Register - EN 60998 - certificate LR22207029TA|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - UL 60079 - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|- ATEX - Physikalisch Technische Bundesanstalt - EN IEC 60079-0 - certificate PTB 18 ATEX 1019 U (II 2 G Ex eb IIC Gb / I M 2 Ex eb I Mb)|- CCC - CNEX - GB/T 3836.3 - certificate 2020312313000184 (Ex eb IIC Gb / Ex eb I Mb)|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate IECEx PTB 18.0045U (Ex eb IIC Gb / Ex eb I Mb)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 19.1781 U|RoHS compliant|material group IIIa|V-2 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: 5-wire splicing connector with levers - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-04
• eCl@ss 9.0: 27-14-11-04
• ETIM 8.0: EC000446
• ETIM 9.0: EC000446
• GTIN: 4055143837330
• Packaging type: box
• PU (SPU): 250 (25) pcs

Connection data

• Clamping units: 5
• Connection 1 - Actuation type: Lever
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.14 … 4 mm² / 24 … 12 AWG
• Connection 1 - Nominal cross-section: 4 mm² / 12 AWG
• Connection 1 - Solid conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Connection 1 - Stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Connection 1 - Strip length: 11 mm / 0.43 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Total number of potentials: 1

Electrical data

• Ex information - Rated current (Ex e II): 32A
• Ex information - Rated voltage EN (Ex e II): 440V
• Ex information - Ratings per: ATEX: PTB 18 ATEX 1019 U / IECEx: PTB 18.0045U (Ex eb IIC Gb)
• Ratings per UL - Approvals per: UL 60079
• Ratings per UL - Rated current UL (Use Group C): 20A
• Ratings per UL - Rated voltage UL (Use Group C): 440V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (storage): -40 … +60 °C
• Continuous operating temperature: -55 … +105 °C

Material data

• Actuator color: light gray
• Color: transparent
• Fire load: 0.089MJ
• Flammability class per UL94: V2
• Insulation material (main housing): Polycarbonate (PC)
• Material group: IIIa
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.4g

Notes

• Safety Information: The permissible operating voltage of the connector with carrier (440 V or 275 V) depends on the mounting type.
• Safety information 2: Only approved in conjunction with a mounting carrier (221-501). Other carriers are possible, see certificate/file. The connectors must be installed in an enclosure meeting the requirements of a recognized protection type per EN 60079-0, GB/T 3836.1 Section 1 or EN 60079-31, GB/T 3836.31. When installing the connectors in an enclosure of protection type “e” (increased safety per EN 60079-7, GB/T 3836.3), the clearances and creepage distances of Table 2 for this standard must be observed. See point 1 for the use of accessories. The connectors can be used both in Group II and Group I, as the standard requirements are identical in this case.
  The use of these components requires a new assessment by a notified certification agency.
• Safety management note: NOTICE: Observe installation and safety instructions!


  • Only to be used by electricians!
  • Do not work under voltage/load!
  • Use only for proper use!
  • Observe national regulations/standards/guidelines!
  • Observe technical specifications for the products!
  • Observe the number of permissible potentials!
  • Do not use damaged/dirty components!
  • Observe conductor types, cross-sections and strip lengths!
  • Insert conductor until it hits the product‘s backstop!
  • Use original accessories!


  To be sold only with installation instructions!

Physical data

• Depth: 18.6 mm / 0.732 inches
• Height: 8.4 mm / 0.327 inches
• Width: 30 mm / 1.181 inches
