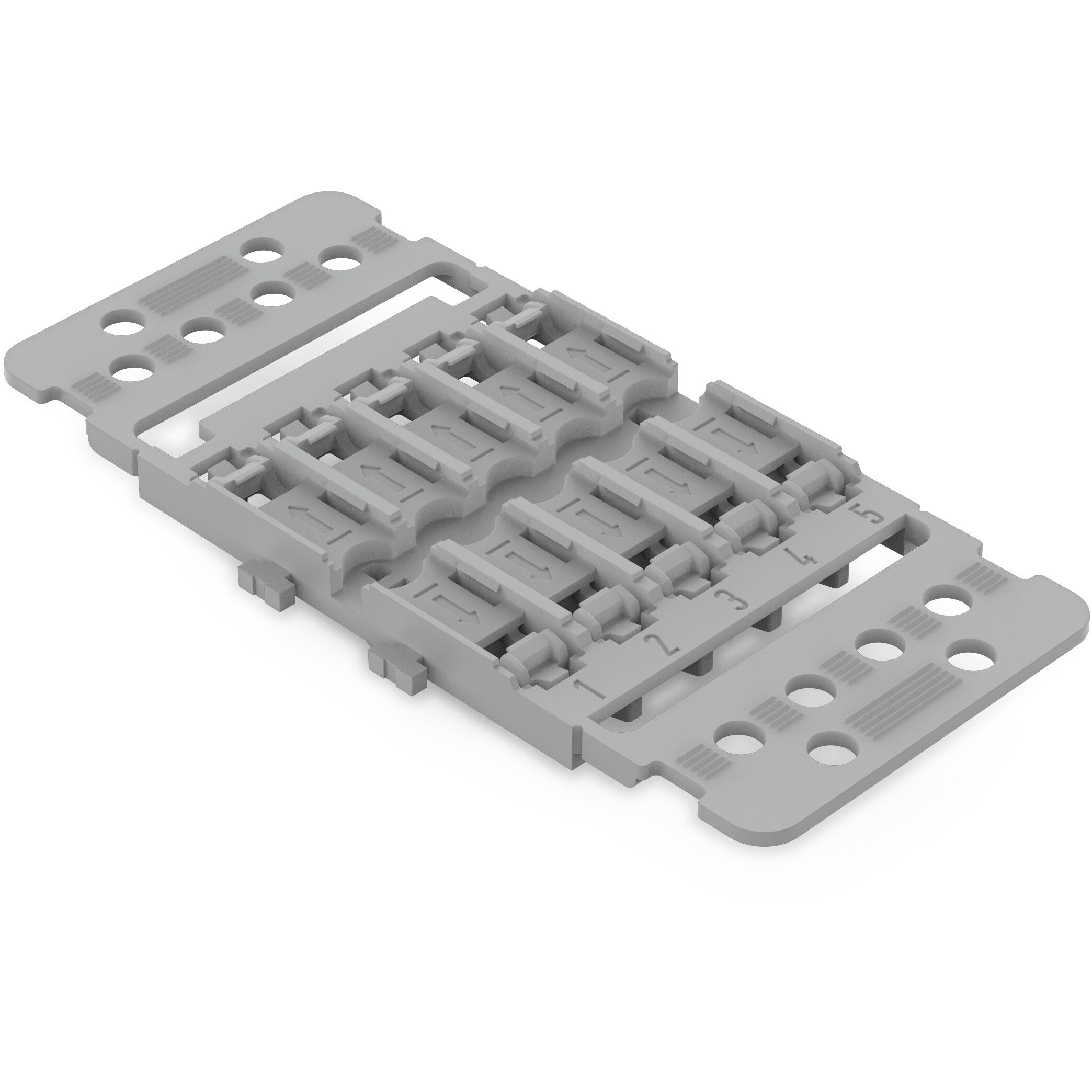

Wago - 221-2515

Mounting carrier with strain relief + snap-in mounting foot - 5-way - WAGO (221 series) - Gray color - equivalent to 2212515

Specifications

• Primary brand: WAGO
• Functions: Mounting carrier
• Design: strain relief|snap-in mounting foot|5-way
• Color: Gray
• Dimensions: H11.03mm x W47.8mm x D100mm
• Technical compatibility with: 221 series inline splicing connectors
• Customs Tariff Number: 39269097900
• GTIN code: 4066966119916
• ETIM code: EC002848
• Order code / Manufacturer SKU: 221-2515
• Manufacturer product status: Commercialized
• Equivalent to: 2212515
• EAN code: 4066966119916
• Compliant with standard(s): RoHS compliant
• Location of origin: China
• Level 1 category: Cabling systems
• Product title: Mounting carrier - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 39269097900
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002848
• ETIM 9.0: EC002848
• GTIN: 4066966119916
• Packaging type: box
• PU (SPU): 25 (5) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.307MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 10.2g

Mechanical data

• Design: 5-way
• Mounting type: Snap-in foot

Physical data

• Depth: 100 mm / 3.937 inches
• Drilled hole diameter for snap-in mounting foot with tolerance: 3.5 mm
• Height: 11.03 mm / 0.434 inches
• Height from the surface: 6.5 mm / 0.256 inches
• Width: 47.8 mm / 1.882 inches
