Wago - 221-2401

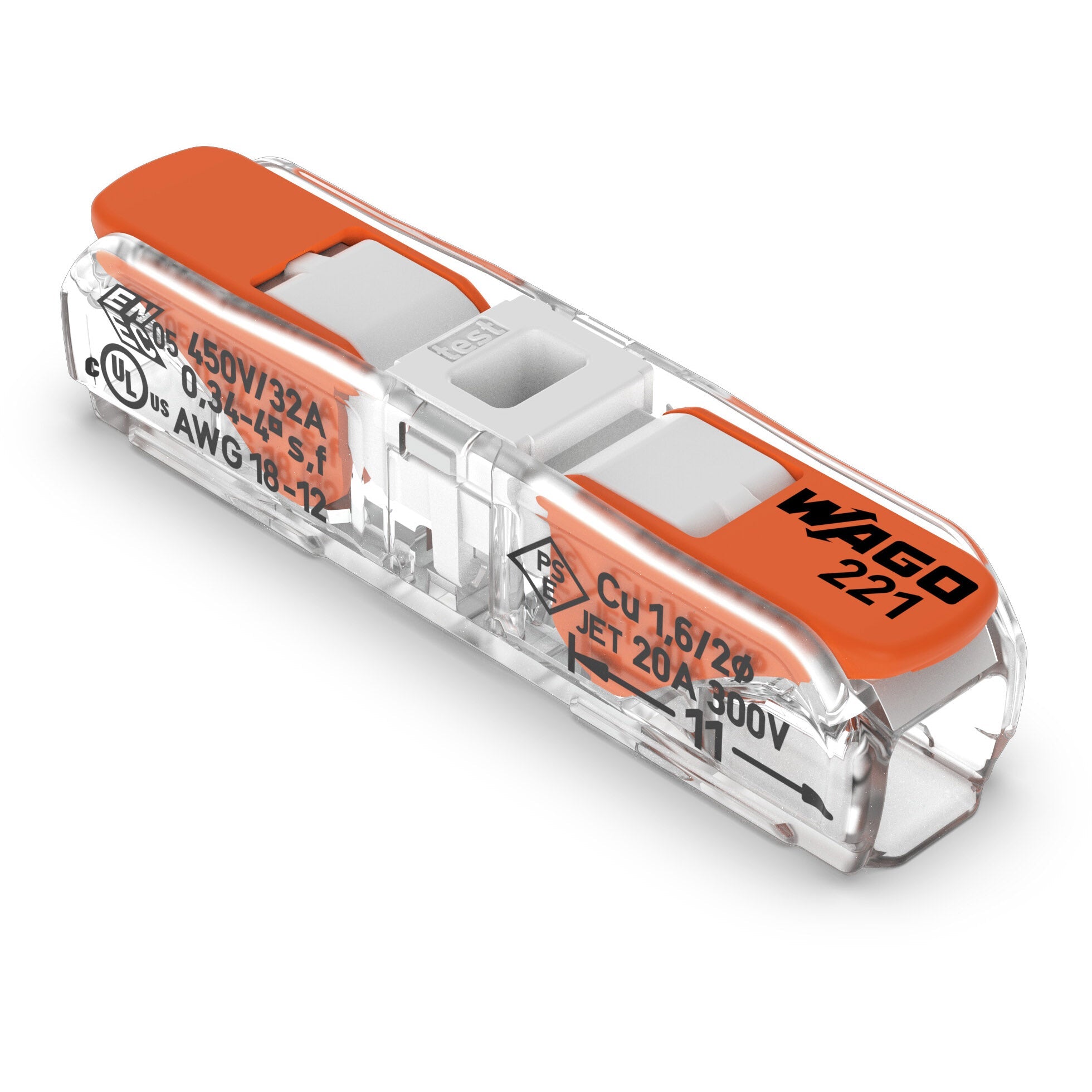

In-line splicing connector with levers - WAGO (221 series) - for 0.34mm2...4mm2 / for #18AWG...#12AWG - Rated current (IEC) 32A - Clear/transparent housing / Orange lever color - with CAGE CLAMP spring connections - equivalent to 2212401

Specifications

• Primary brand: WAGO
• Functions: In-line splicing connector with levers
• Temperature: Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 32A|(UL) 20A
• Color: Clear/transparent housing|Orange lever
• Rated operating voltage (Ue): (IEC) 450V|(UL) 600V
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.34mm2...4mm2 fine stranded conductors|for 0.2mm2...2.5mm2 stranded conductors|for 0.2mm2...4mm2 solid conductors|for #18AWG...#12AWG fine stranded or stranded conductors|for #20AWG...#12AWG solid conductors
• Dimensions: H8.9mm x W8.1mm x D35.5mm
• Material: Polycarbonate (PC) housing
• Customs Tariff Number: 85369010000
• GTIN code: 4066966120271
• ETIM code: EC000446
• Order code / Manufacturer SKU: 221-2401
• Manufacturer product status: Commercialized
• Equivalent to: 2212401
• EAN code: 4055144067613
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7990|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC16003140469|- cULus_Listed_667F - Underwriters Laboratories Inc. - UL 486C - certificate UL-CA-L69654|- ENEC 05 - DEKRA Certification B.V. - EN 60998 - certificate 71-127529|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- LR - Lloyds Register - EN 60998 - certificate LR22207029TA|RoHS compliant|material group IIIa|V-2 flammability rating
• Location of origin: Germany
• Benefits: Slim design minimizes dimensions for installation in tight spaces|Tool-free connection and disconnection thanks to convenient lever technology|Choosing between fixed-position installation and multi-pole installation with an adapter
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: In-line splicing connector with levers - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000446
• ETIM 9.0: EC000446
• GTIN: 4066966120271
• Packaging type: box
• PU (SPU): 600 (60) pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Lever
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.34 … 4 mm² / 18 … 12 AWG
• Connection 1 - Nominal cross-section: 4 mm² / 12 AWG
• Connection 1 - Solid conductor: 0.2 … 4 mm² / 20 … 12 AWG
• Connection 1 - Stranded conductor: 0.2 … 2.5 mm² / 18 … 12 AWG
• Connection 1 - Strip length: 11 mm / 0.43 inches

Electrical data

• Ratings per IEC/EN - Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 450V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Ratings per: EN 60664
• Ratings per UL - Rated current UL (Use Group C): 20A
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C

Material data

• Actuator color: orange
• Color: transparent
• Cover color: white
• Fire load: 0.058MJ
• Flammability class per UL94: V2
• Insulation material (main housing): Polycarbonate (PC)
• Material group: IIIa
• Note (material data):
  Information on material specifications can be found here

• Weight: 2.4g
• Weight of insulation material: 0.84g

Notes

• Safety management note: NOTICE: Observe installation and safety instructions!


  • Only to be used by electricians!
  • Do not work under voltage/load!
  • Use only for proper use!
  • Observe national regulations/standards/guidelines!
  • Observe technical specifications for the products!
  • Observe the number of permissible potentials!
  • Do not use damaged/dirty components!
  • Observe conductor types, cross-sections and strip lengths!
  • Insert conductor until it hits the product‘s backstop!
  • Use original accessories!


  To be sold only with installation instructions!

Physical data

• Depth: 35.5 mm / 1.398 inches
• Height: 8.9 mm / 0.35 inches
• Width: 8.1 mm / 0.319 inches
