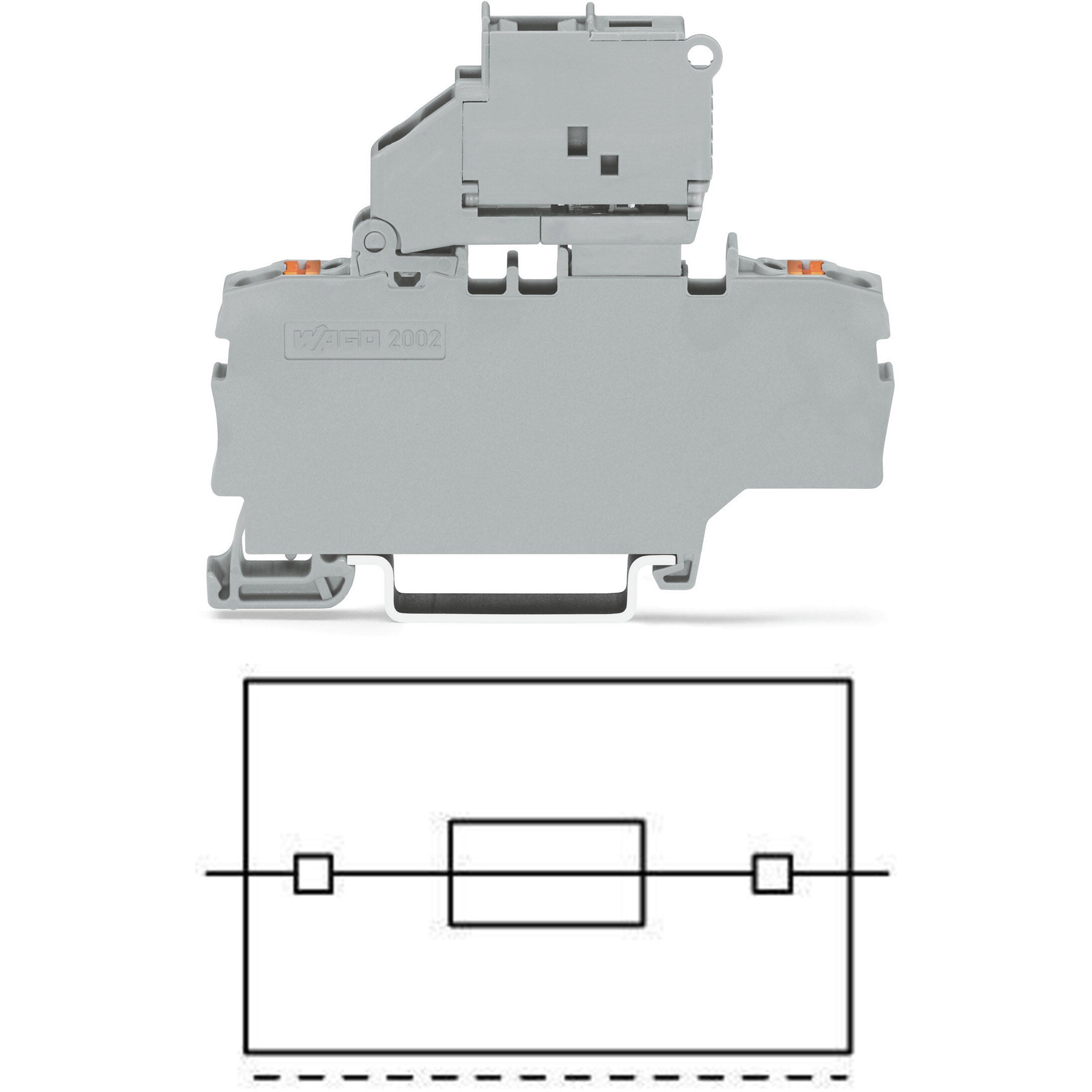

Feed-through/thru terminal block with 1-deck/level + fused-disconnect (lever type; 5x20mm) + btn. + additional jumper position + side/lateral and center marking slots - WAGO (2202 TOPJOB S series) - Gray - 1 feed-through pole (1P) / 2-wires (1 push-in + 1 push-in) (1+1) - 2.5mm2 nominal cross-section - for 0.25mm2...4mm2 / for #22AWG...#12AWG - Rated current 6.3A - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (6.2mm width) - equivalent to 22021911

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|fused-disconnect (lever type; 5x20mm)|btn.|additional jumper position|side/lateral and center marking slots|3 jumper slots
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 6.3A|(UL) 10A|(CSA) 10A|(Ex e II) 6.3A
• Color: Gray|Orange actuator
• Connection capacity: 2-wires (1 push-in + 1 push-in) (1+1)
• Rated operating voltage (Ue): (IEC) 250V|(UL) 250V|(CSA) 250V|(Ex e II) 275V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.25mm2...4mm2 fine stranded or solid conductors|for 0.25mm2...2.5mm2 fine stranded conductors with insulated ferrule|for 1mm2...2.5mm2 fine stranded conductors with ferrule; push-in termination|for 0.75mm2...4mm2 solid conductors; push-in termination|for #22AWG...#12AWG fine stranded or solid conductors|for #22AWG...#14AWG fine stranded conductors with insulated ferrule|for #18AWG...#14AWG fine stranded conductors with ferrule; push-in termination|for #18AWG...#12AWG solid conductors; push-in termination|2.5mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H72.9mm x W6.2mm x D57.6mm
• Net Width (mm): 6.2mm
• Material: Polyamide (PA) 66
• ETIM code: EC000899
• GTIN code: 4055143962001
• Customs Tariff Number: 85369095000
• Order code / Manufacturer SKU: 2202-1911
• Manufacturer product status: Commercialized
• Equivalent to: 22021911
• EAN code: 4055143962001
• Compliant with standard(s): General approvals|- CSA - DEKRA Certification B.V. - C22.2 - certificate 70173745|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate UL-CA-L45172-6189178-11508102-1|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - UL 60079 - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|- ATEX - Physikalisch Technische Bundesanstalt - EN IEC 60079-0 - certificate PTB 20 ATEX 1007U (II 3 G Ex ec IIC Gc)|- CCC - CNEX - certificate 2020312313000288 (Ex ec IIC Gc)|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079 - certificate IECEx PTB 20.0013U (Ex ec IIC Gc)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85369095000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000899
• ETIM 9.0: EC000899
• GTIN: 4055143962001
• Packaging type: box
• PU (SPU): 50 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Push-button
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Connection 1 - Nominal cross-section: 2.5 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Connection 1 - Strip length: 10 … 12 mm / 0.39 … 0.47 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of jumper slots: 3
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ex information - Rated current (Ex e II): 6.3A
• Ex information - Rated voltage EN (Ex e II): 275V
• Ex information - Ratings per: ATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc)
• Ex information - Reference hazardous areas: See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
• General information - Fuse receptacle: pivoting
• General information - Fuse type: Cylindrical fuse; 5 x 20 mm
• Power Loss - Power loss P_l max. overload and short-circuit protection (group arrangement): 1.6W
• Power Loss - Power loss P_l max. overload and short-circuit protection (individual arrangement): 1.6W
• Power Loss - Power loss P_l max. short-circuit protection (group arrangement): 1.6W
• Power Loss - Power loss P_l max. short-circuit protection (individual arrangement): 1.6W
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 10A
• Ratings per CSA - Rated current CSA (Use Group C): 10A
• Ratings per CSA - Rated current CSA (Use Group D): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 250V
• Ratings per CSA - Rated voltage CSA (Use Group C): 250V
• Ratings per CSA - Rated voltage CSA (Use Group D): 250V
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 6.3A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-3
• Ratings per IEC/EN – Notes - Ratings (note): Electrical ratings are given by the fuse.
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 10A
• Ratings per UL - Rated current UL (Use Group C): 10A
• Ratings per UL - Rated voltage UL (Use Group B): 250V
• Ratings per UL - Rated voltage UL (Use Group C): 250V
• Ratings per UL - Rated voltage UL (Use Group D): 250V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Actuator color: orange
• Color: gray
• Fire load: 0.318MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 14.3g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 57.6 mm / 2.268 inches
• Height: 72.9 mm / 2.87 inches
• Width: 6.2 mm / 0.244 inches
