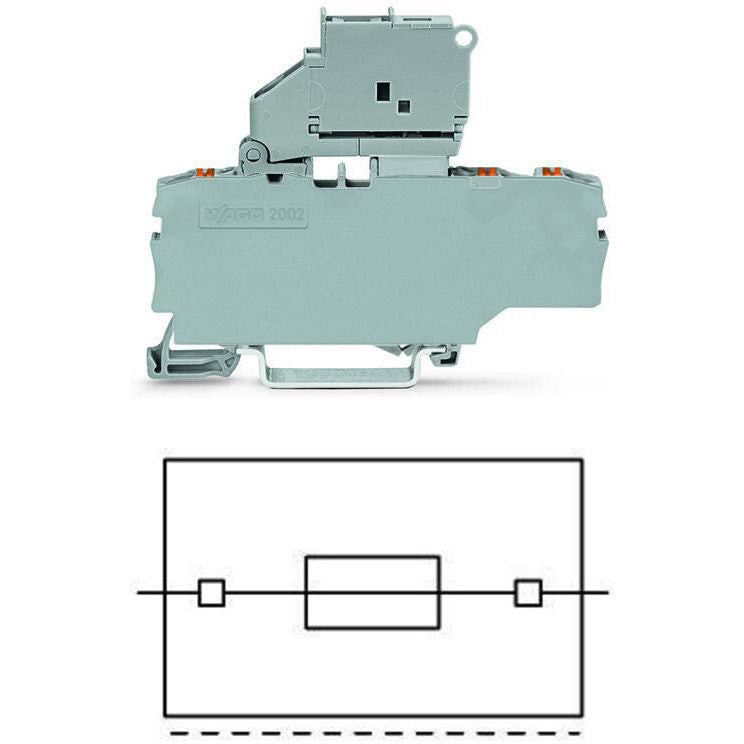

Wago - 2202-1711

Feed-through/thru terminal block with 1-deck/level + fused-disconnect (lever type; 5x20mm) + btn. + built-in end plate (terminal is closed on both sides) + side/lateral and center marking slots - WAGO (2202 TOPJOB S series) - Gray - 1 feed-through pole (1P) / 3-wires (3 push-in) - 2.5mm2 nominal cross-section - for 0.25mm2...4mm2 / for #22AWG...#12AWG - Rated current 6.3A - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (6.2mm width) - equivalent to 22021711

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|fused-disconnect (lever type; 5x20mm)|btn.|built-in end plate (terminal is closed on both sides)|side/lateral and center marking slots|2 jumper slots
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 6.3A|(UL) 10A|(CSA) 10A|(Ex e II) 6.3A
• Color: Gray|Orange actuator
• Connection capacity: 3-wires (3 push-in)
• Rated operating voltage (Ue): (IEC) 250V|(UL) 250V|(CSA) 250V|(Ex e II) 275V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.25mm2...4mm2 fine stranded or solid conductors|for 0.25mm2...2.5mm2 fine stranded conductors with insulated ferrule|for 1mm2...2.5mm2 fine stranded conductors with ferrule; push-in termination|for 0.75mm2...4mm2 solid conductors; push-in termination|for #22AWG...#12AWG fine stranded or solid conductors|for #22AWG...#14AWG fine stranded conductors with insulated ferrule|for #18AWG...#14AWG fine stranded conductors with ferrule; push-in termination|for #18AWG...#12AWG solid conductors; push-in termination|2.5mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H76.8mm x W6.2mm x D57.6mm
• Net Width (mm): 6.2mm
• Material: Polyamide (PA) 66
• GTIN code: 4055143955904
• ETIM code: EC000899
• Customs Tariff Number: 85369095000
• Order code / Manufacturer SKU: 2202-1711
• Manufacturer product status: Commercialized
• Equivalent to: 22021711
• EAN code: 4055143955904
• Compliant with standard(s): General approvals|- CSA - DEKRA Certification B.V. - C22.2 - certificate 70173745|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate UL-CA-L45172-6189178-11508102-1|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - UL 60079 - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|- ATEX - Physikalisch Technische Bundesanstalt - EN IEC 60079-0 - certificate PTB 20 ATEX 1007U (II 3 G Ex ec IIC Gc)|- CCC - CNEX - certificate 2020312313000288 (Ex ec IIC Gc)|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079 - certificate IECEx PTB 20.0013U (Ex ec IIC Gc)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85369095000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000899
• ETIM 9.0: EC000899
• GTIN: 4055143955904
• Packaging type: box
• PU (SPU): 50 pcs

Connection data

• Clamping units: 3
• Connection 1 - Actuation type: Push-button
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Connection 1 - Nominal cross-section: 2.5 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Connection 1 - Strip length: 10 … 12 mm / 0.39 … 0.47 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ex information - Rated current (Ex e II): 6.3A
• Ex information - Rated voltage EN (Ex e II): 275V
• Ex information - Ratings per: ATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc)
• Ex information - Reference hazardous areas: See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
• General information - Fuse receptacle: pivoting
• General information - Fuse type: Cylindrical fuse; 5 x 20 mm
• Power Loss - Power loss (max.) P_{l (max.)} (note): When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.
• Power Loss - Power loss P_l max. overload and short-circuit protection (group arrangement): 1.6W
• Power Loss - Power loss P_l max. overload and short-circuit protection (individual arrangement): 1.6W
• Power Loss - Power loss P_l max. short-circuit protection (group arrangement): 1.6W
• Power Loss - Power loss P_l max. short-circuit protection (individual arrangement): 1.6W
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 10A
• Ratings per CSA - Rated current CSA (Use Group C): 10A
• Ratings per CSA - Rated current CSA (Use Group D): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 250V
• Ratings per CSA - Rated voltage CSA (Use Group C): 250V
• Ratings per CSA - Rated voltage CSA (Use Group D): 250V
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 6.3A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-3
• Ratings per IEC/EN – Notes - Ratings (note): Electrical ratings are given by the fuse.
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 10A
• Ratings per UL - Rated current UL (Use Group C): 10A
• Ratings per UL - Rated voltage UL (Use Group B): 250V
• Ratings per UL - Rated voltage UL (Use Group C): 250V
• Ratings per UL - Rated voltage UL (Use Group D): 250V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Actuator color: orange
• Color: gray
• Fire load: 0.18MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 14.9g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 57.6 mm / 2.268 inches
• Height: 76.8 mm / 3.024 inches
• Width: 6.2 mm / 0.244 inches
