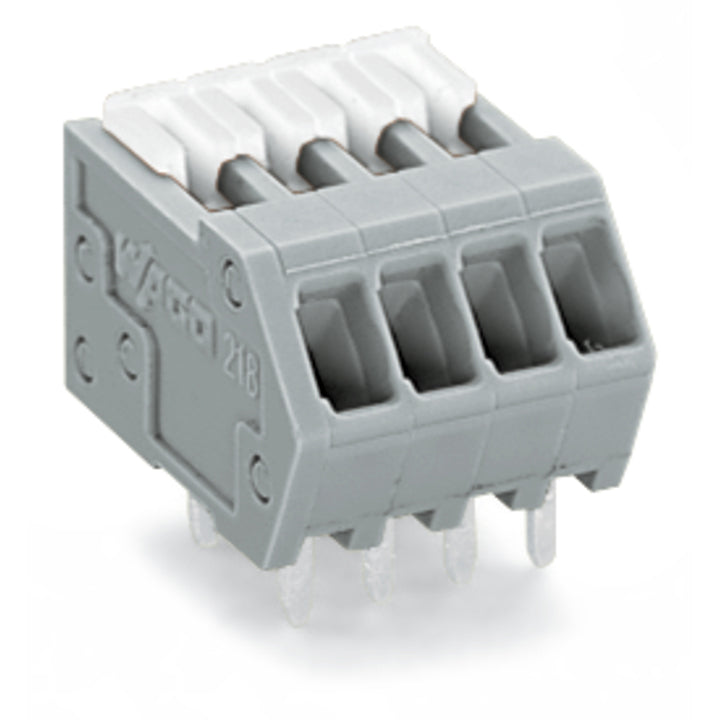

Wago - 218-521

WAGO component - equivalent to 218521

Specifications

• Primary brand: WAGO
• GTIN code: 4044918878753
• Order code / Manufacturer SKU: 218-521
• Manufacturer product status: Commercialized
• Equivalent to: 218521
• EAN code: 4044918878753
• Manufacturer description: PCB terminal block; Locking slides; 0.5mm2; Pin spacing 2.54mm; 21-pole; CAGE CLAMP; 0.5mm2; gray
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 80V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 2.5kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 160V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 2.5kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 2.5kV|Electrical data - Ratings per IEC/EN - Rated current -- 6A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 150V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 4A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 150V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 4A|Connection data - Clamping units -- 21|Connection data - Total number of potentials -- 21|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Slider|Connection data - Connection 1 - Solid conductor -- 0.08...0.5mm2 / 28...20 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.08...0.5mm2 / 28...20 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25mm2|Connection data - Connection 1 - Note (conductor cross-section) -- Terminating 0.75mm2/18 AWG conductors is possible; however insulation diameter allows only every other clamping unit to be terminated with this conductor size.|Connection data - Connection 1 - Strip length -- 5...6mm / 0.2...0.24"|Connection data - Connection 1 - Conductor connection direction to PCB -- 40°|Connection data - Connection 1 - Pole number -- 21|Physical data - Pin spacing -- 2.54mm / 0.1"|Physical data - Width -- 54.84mm / 2.159"|Physical data - Height -- 10.9mm / 0.429"|Physical data - Height from the surface -- 8.1mm / 0.319"|Physical data - Depth -- 13mm / 0.512"|Physical data - Solder pin length -- 2.8mm|Physical data - Solder pin dimensions -- 0.5 x 0.75mm|Physical data - Drilled hole diameter with tolerance -- 1.1 ^(+0.1)mm|PCB contact - PCB contact -- THT|PCB contact - Solder pin arrangement -- over the entire terminal strip (in-line)|PCB contact - Number of solder pins per potential -- 2|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.339MJ|Material data - Weight -- 6.8g|Environmental requirements - Limit temperature range -- -60...+105°C|Commercial data - Product Group -- 4 (Printed Circuit Connectors)|Commercial data - eClass 10.0 -- 27-44-04-01|Commercial data - eClass 9.0 -- 27-44-04-01|Commercial data - ETIM 9.0 -- EC002643|Commercial data - ETIM 8.0 -- EC002643|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 80 (20) pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- PL|Commercial data - GTIN -- 4044918878753|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Poland
• Level 1 category: Electrical components

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-04-01
• eCl@ss 9.0: 27-44-04-01
• ETIM 8.0: EC002643
• ETIM 9.0: EC002643
• GTIN: 4044918878753
• Packaging type: Box
• Product Group: 4 (Printed Circuit Connectors)
• PU (SPU): 80 (20) pcs

Connection data

• Clamping units: 21
• Connection 1 - Actuation type: Slider
• Connection 1 - Conductor connection direction to PCB: 40°
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 mm²
• Connection 1 - Note (conductor cross-section): Terminating 0.75 mm²/18 AWG conductors is possible; however insulation diameter allows only every other clamping unit to be terminated with this conductor size.
• Connection 1 - Pole number: 21
• Connection 1 - Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
• Connection 1 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 21

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 4A
• Ratings per CSA - Rated voltage CSA (Use Group B): 150V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 320V
• Ratings per IEC/EN - Nominal voltage (III/3): 80V
• Ratings per IEC/EN - Rated current: 6A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 2.5kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 2.5kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 2.5kV
• Ratings per IEC/EN - Rated voltage (III/2): 160V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 4A
• Ratings per UL - Rated voltage UL (Use Group B): 150V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Limit temperature range: -60 … +105 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.339MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 6.8g

Notes

• Variants:: Other pole numbers|Other colors|Mixed-color PCB connector strips|Direct marking|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

PCB contact

• Number of solder pins per potential: 2
• PCB contact: THT
• Solder pin arrangement: over the entire terminal strip (in-line)

Physical data

• Depth: 13 mm / 0.512 inches
• Drilled hole diameter with tolerance: 1.1 ^(+0.1) mm
• Height: 10.9 mm / 0.429 inches
• Height from the surface: 8.1 mm / 0.319 inches
• Pin spacing: 2.54 mm / 0.1 inches
• Solder pin dimensions: 0.5 x 0.75 mm
• Solder pin length: 2.8mm
• Width: 54.84 mm / 2.159 inches
