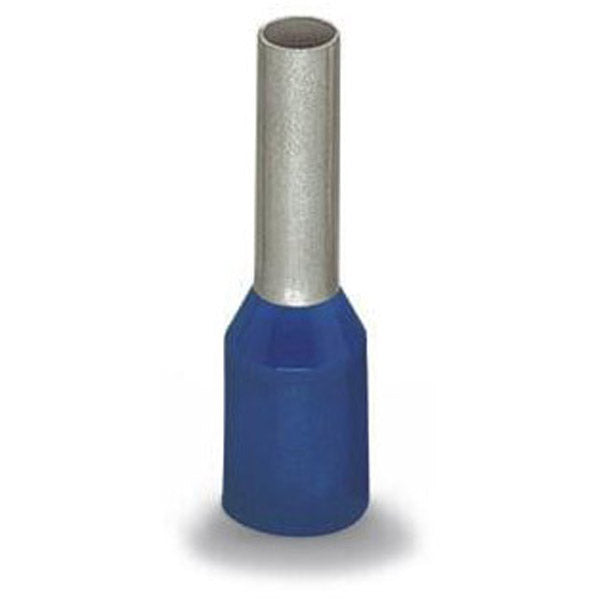

Wago - 216-350

Compression/crimp insulated end sleeve / ferrule - WAGO (216 series) - for 1 x 0.25mm2 / for #24AWG - Light blue color - 8mm sleeve length - equivalent to 216350

Specifications

• Primary brand: WAGO
• Functions: Compression/crimp insulated end sleeve / ferrule
• Color: Light blue
• Cross-section: for 1 x 0.25mm2 conductor|for #24AWG conductor
• Length: 8mm sleeve
• Dimensions: 12mm overall length (L)|1.8mm insulating collar inner diameter (D1)|0.85mm ferrule diameter (D2)|requires 9mm...10mm / 0.35"...0.39" cable stripping length
• GTIN code: 4055143968300
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 216-350
• Manufacturer product status: Commercialized
• Equivalent to: 216350
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Level 3 category: Cable ferrules
• Product title: Compression/crimp insulated end sleeve / ferrule - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• GTIN: 4055143968300
• Packaging type: Bag
• PU (SPU): 500 pcs

Connection data

• Cross-section AWG: 24AWG
• Cross-section metric: 0.25mm²
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: light blue
• Weight: 0.1g

Physical data

• Crimp length (length of sleeve): 8mm
• Diameter crimp sleeve inside: 0.85mm
• Inner Diameter plastic collar: 1.8mm
• Total length: 12mm
• Wall thickness crimp sleeve: 0.15mm
• Wall thickness plastic collar: 0.25mm
