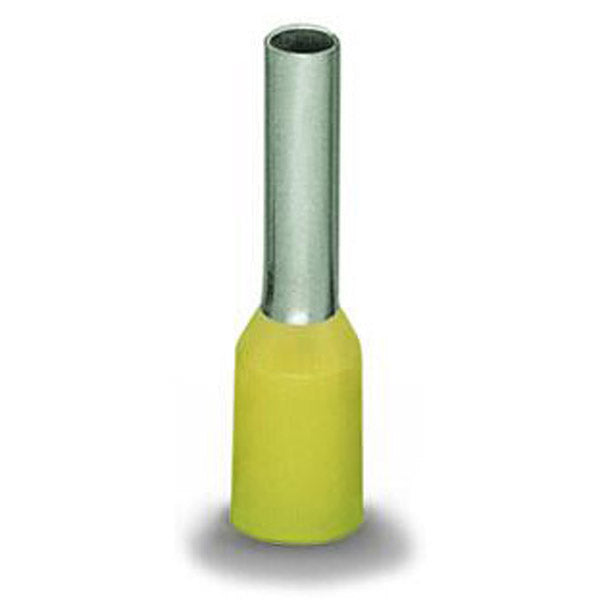

Wago - 216-307

Compression/crimp insulated end sleeve / ferrule - WAGO (216 series) - for 1 x 1mm2 / for #18AWG - Yellow color - 8mm sleeve length - equivalent to 216307

Specifications

• Primary brand: WAGO
• Functions: Compression/crimp insulated end sleeve / ferrule
• Color: Yellow
• Cross-section: for 1 x 1mm2 conductor|for #18AWG conductor
• Length: 8mm sleeve
• Dimensions: 14mm overall length (L)|3mm insulating collar inner diameter (D1)|1.4mm ferrule diameter (D2)|requires 10mm...11mm / 0.39"...0.43" cable stripping length
• GTIN code: 4055143968522
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 216-307
• Manufacturer product status: Commercialized
• Equivalent to: 216307
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Level 3 category: Cable ferrules
• Product title: Compression/crimp insulated end sleeve / ferrule - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• GTIN: 4055143968522
• Packaging type: Bag
• PU (SPU): 500 pcs

Connection data

• Cross-section AWG: 18AWG
• Cross-section metric: 1mm²
• Strip length: 10 … 11 mm / 0.39 … 0.43 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: yellow
• Weight: 0.1g

Physical data

• Crimp length (length of sleeve): 8mm
• Diameter crimp sleeve inside: 1.4mm
• Inner Diameter plastic collar: 3mm
• Total length: 14mm
• Wall thickness crimp sleeve: 0.15mm
• Wall thickness plastic collar: 0.25mm
