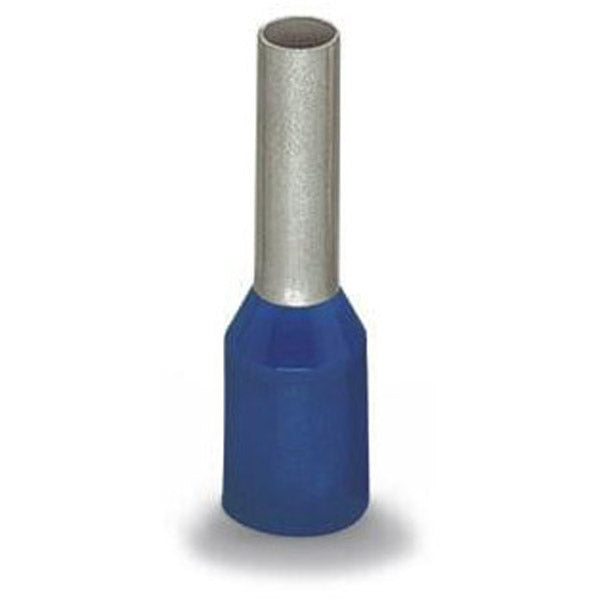

Wago - 216-286

Electro Tin-plated Copper compression/crimp insulated end sleeve / ferrule - WAGO (216 series) - for 1 x 2.5mm2 / for #14AWG - Blue color - 18mm sleeve length - equivalent to 216286

Specifications

• Primary brand: WAGO
• Functions: Electro Tin-plated Copper compression/crimp insulated end sleeve / ferrule
• Color: Blue
• Cross-section: for 1 x 2.5mm2 conductor|for #14AWG conductor
• Length: 18mm sleeve
• Dimensions: 25mm overall length (L)|4.2mm insulating collar inner diameter (D1)|2.2mm ferrule diameter (D2)|requires 20mm / 0.79" cable stripping length
• Customs Tariff Number: 85369010000
• ETIM code: EC000005
• GTIN code: 4055143654753
• eClass code: 27-40-02-01
• Order code / Manufacturer SKU: 216-286
• Manufacturer product status: Commercialized
• Equivalent to: 216286
• EAN code: 4044918604321
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Level 3 category: Cable ferrules
• Product title: Electro Tin-plated Copper compression/crimp insulated end sleeve / ferrule - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-40-02-01
• eCl@ss 9.0: 27-40-02-01
• ETIM 8.0: EC000005
• ETIM 9.0: EC000005
• GTIN: 4055143654753
• Packaging type: Bag
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 500 pcs

Connection data

• Cross-section AWG: 14AWG
• Cross-section metric: 2.5mm²
• Strip length: 20 … 21 mm / 0.79 … 0.83 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: blue
• Weight: 0g

Mechanical data

• Suitable: 2010 to 2016 Series

Physical data

• Crimp length (length of sleeve): 18mm
• Diameter crimp sleeve inside: 2.2mm
• Inner Diameter plastic collar: 4.2mm
• Total length: 25mm
• Wall thickness crimp sleeve: 0.15mm
• Wall thickness plastic collar: 0.25mm
