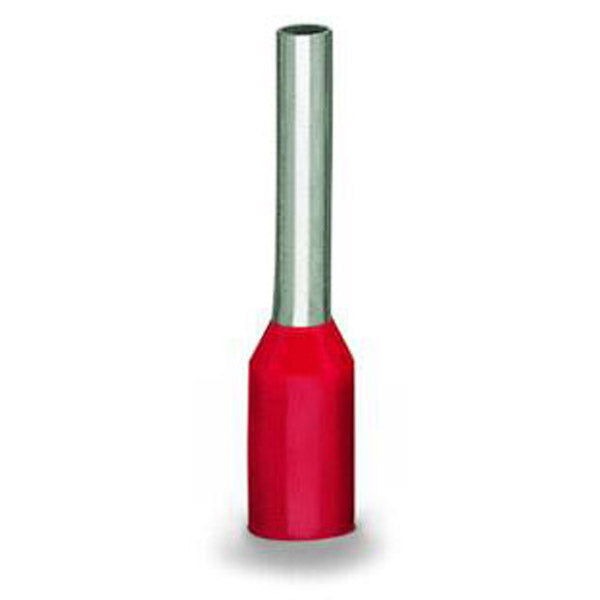

Wago - 216-203

Electro Tin-plated Copper compression/crimp insulated end sleeve / ferrule - WAGO (216 series) - for 1 x 1mm2 / for #18AWG - Red color - 8mm sleeve length - equivalent to 216203

Specifications

• Primary brand: WAGO
• Functions: Electro Tin-plated Copper compression/crimp insulated end sleeve / ferrule
• Color: Red
• Cross-section: for 1 x 1mm2 conductor|for #18AWG conductor
• Length: 8mm sleeve
• Dimensions: 14mm overall length (L)|3mm insulating collar inner diameter (D1)|1.4mm ferrule diameter (D2)|requires 10mm / 0.39" cable stripping length
• Customs Tariff Number: 85369010000
• GTIN code: 4017332277471
• eClass code: 27-40-02-01
• ETIM code: EC000005
• Order code / Manufacturer SKU: 216-203
• Manufacturer product status: Commercialized
• Equivalent to: 216203
• EAN code: 4017332277471
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Level 3 category: Cable ferrules
• Product title: Electro Tin-plated Copper compression/crimp insulated end sleeve / ferrule - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-40-02-01
• eCl@ss 9.0: 27-40-02-01
• ETIM 8.0: EC000005
• ETIM 9.0: EC000005
• GTIN: 4017332277471
• Packaging type: box
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 1000 (100) pcs

Connection data

• Cross-section AWG: 18AWG
• Cross-section metric: 1mm²
• Strip length: 10 … 11 mm / 0.39 … 0.43 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: red
• Fire load: 0.001MJ
• Weight: 0.1g

Physical data

• Crimp length (length of sleeve): 8mm
• Diameter crimp sleeve inside: 1.4mm
• Inner Diameter plastic collar: 3mm
• Total length: 14mm
• Wall thickness crimp sleeve: 0.15mm
• Wall thickness plastic collar: 0.25mm
