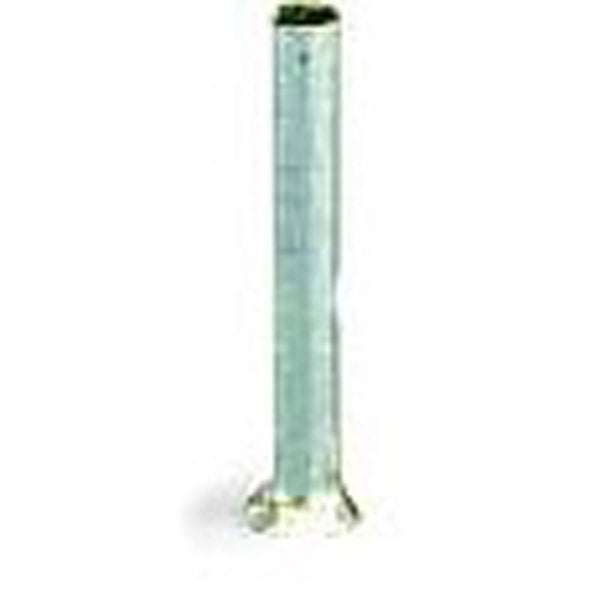

Wago - 216-131

Electro Tin-plated Copper compression/crimp end sleeve / ferrule - WAGO (216 series) - for 1 x 0.2mm2 / for #24AWG - Silver color - 7mm length - equivalent to 216131

Specifications

• Primary brand: WAGO
• Functions: Electro Tin-plated Copper compression/crimp end sleeve / ferrule
• Color: Silver
• Cross-section: for 1 x 0.2mm2 conductor|for #24AWG conductor
• Length: 7mm
• Dimensions: 0.7mm ferrule diameter (D2)|requires 7mm / 0.28" cable stripping length
• ETIM code: EC000005
• Customs Tariff Number: 85369010000
• eClass code: 27-40-02-01
• GTIN code: 4017332277570
• Order code / Manufacturer SKU: 216-131
• Manufacturer product status: Commercialized
• Equivalent to: 216131
• EAN code: 4017332277570
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Level 3 category: Cable ferrules
• Product title: Electro Tin-plated Copper compression/crimp end sleeve / ferrule - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-40-02-01
• eCl@ss 9.0: 27-40-02-01
• ETIM 8.0: EC000005
• ETIM 9.0: EC000005
• GTIN: 4017332277570
• Packaging type: box
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 5000 (1000) pcs

Connection data

• Cross-section AWG: 24AWG
• Cross-section metric: 0.2mm²
• Strip length: 7 mm / 0.28 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: silver-colored
• Weight: 0g

Physical data

• Diameter crimp sleeve inside: 0.7mm
• Total length: 7mm
• Wall thickness crimp sleeve: 0.15mm
