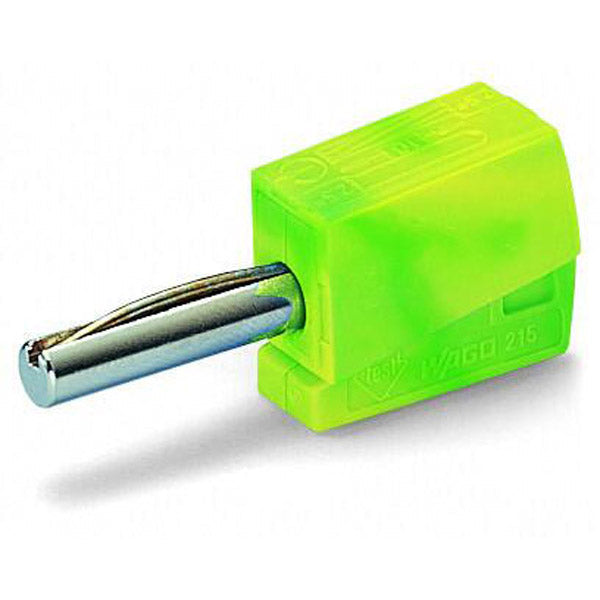

Wago - 215-911

Banana plug for 4mm diameter socket - WAGO (215 series) - 1-pole (1P) - for 0.08mm2...2.5mm2 / for #28AWG...#14AWG - Rated current 20A - Green-Yellow color - with CAGE CLAMP spring connections - Plug-in mounting (8mm width) - equivalent to 215911

Specifications

• Primary brand: WAGO
• Functions: Banana plug for 4mm diameter socket
• Poles: 1-pole (1P)
• Rated current: 20A
• Color: Green-Yellow
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 conductor|for #28AWG...#14AWG conductor
• Mounting mode: Plug-in
• Dimensions: W8mm
• Net Width (mm): 8mm
• GTIN code: 4045454293567
• ETIM code: EC002255
• Customs Tariff Number: 85366990990
• eClass code: 27-44-03-13
• Order code / Manufacturer SKU: 215-911
• Manufacturer product status: Commercialized
• Equivalent to: 215911
• EAN code: 4045454293567
• Compliant with standard(s): RoHS compliant with exemption (6(c))
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Banana plug for 4mm diameter socket - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-03-13
• eCl@ss 9.0: 27-44-03-13
• ETIM 8.0: EC002255
• ETIM 9.0: EC002255
• GTIN: 4045454293567
• Packaging type: box
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 50 pcs

Connection data

• Clamping units: 1
• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 11 mm / 0.35 … 0.43 inches

Electrical data

• Rated current: 20A
• Test voltage: 42V

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): 11a03ff5-a36f-43da-b613-56f9cc3f0f73
• SCIP notification number (Belgium): b76949c6-e6eb-48b3-8a4f-d3e40bb5bbf3
• SCIP notification number (Bulgaria): ba74eb32-6f43-4bff-bbdd-110f2dd35b0c
• SCIP notification number (Czech Republic): b7e4d258-b776-4d4c-873e-0b1622a09379
• SCIP notification number (Denmark): 374f27a2-7a2f-489b-b3d3-db34ca1eeee9
• SCIP notification number (Finland): fba41022-f292-4a5d-929b-4be4bf903756
• SCIP notification number (France): a2e81971-2a70-4c24-8d8c-d887d2a26d87
• SCIP notification number (Germany): 534e3015-7658-4225-9766-10ffea125f7f
• SCIP notification number (Hungary): 49d347b9-f772-482a-9f27-3f50e55ac4b7
• SCIP notification number (Italy): cf5684cb-e759-4fd2-a561-851d016e9e8f
• SCIP notification number (Netherlands): e676c47b-5ec8-4fa4-b85c-ba063cf9c9c3
• SCIP notification number (Poland): 3fed0584-489d-4db5-ad3b-455b0e19a745
• SCIP notification number (Romania): 789bcf42-8b74-4a01-95ad-e85601b1f323
• SCIP notification number (Sweden): a7d62418-380b-4e56-a926-5857023c5344

Material data

• Color: green-yellow
• Fire load: 0.04MJ
• Weight: 3.9g

Physical data

• Depth: 40 mm / 1.575 inches
• Height: 15 mm / 0.591 inches
• Width: 8 mm / 0.315 inches

Technical data

• Total number of potentials: 1
