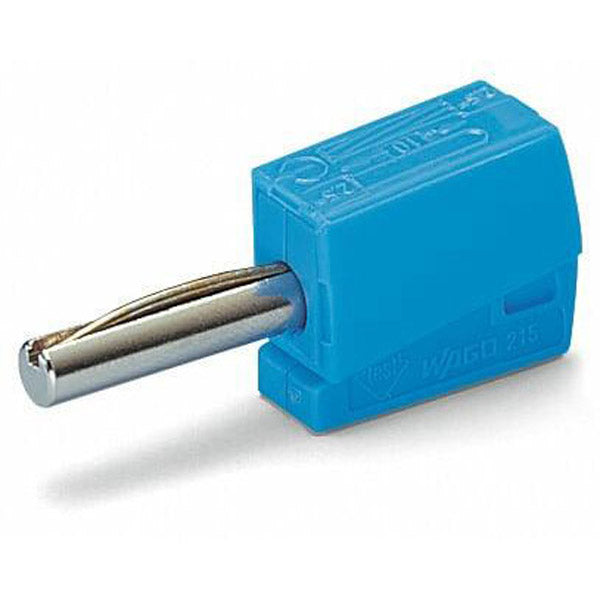

Wago - 215-711

Banana plug for 4mm diameter socket - WAGO (215 series) - 1-pole (1P) - for 0.08mm2...2.5mm2 / for #28AWG...#14AWG - Rated current 20A - Blue color - with CAGE CLAMP spring connections - Plug-in mounting (8mm width) - equivalent to 215711

Specifications

• Primary brand: WAGO
• Functions: Banana plug for 4mm diameter socket
• Poles: 1-pole (1P)
• Rated current: 20A
• Color: Blue
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 conductor|for #28AWG...#14AWG conductor
• Mounting mode: Plug-in
• Dimensions: W8mm
• Net Width (mm): 8mm
• Customs Tariff Number: 85366990990
• ETIM code: EC002255
• eClass code: 27-44-03-13
• GTIN code: 4045454293543
• Order code / Manufacturer SKU: 215-711
• Manufacturer product status: Commercialized
• Equivalent to: 215711
• EAN code: 4045454293543
• Compliant with standard(s): RoHS compliant with exemption (6(c))
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Banana plug for 4mm diameter socket - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-03-13
• eCl@ss 9.0: 27-44-03-13
• ETIM 8.0: EC002255
• ETIM 9.0: EC002255
• GTIN: 4045454293543
• Packaging type: box
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 50 pcs

Connection data

• Clamping units: 1
• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 11 mm / 0.35 … 0.43 inches

Electrical data

• Rated current: 20A
• Test voltage: 42V

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): b2b4bad9-fab4-4580-9931-d56c5ff9204a
• SCIP notification number (Belgium): 2119eea4-4ec4-4ac5-8014-7c593368763a
• SCIP notification number (Bulgaria): 83ca1936-78d1-4d3a-858b-9ac3ec42ff83
• SCIP notification number (Czech Republic): cd7c191d-c4f7-453d-b38a-6b4625294d25
• SCIP notification number (Denmark): 8de8b78a-e1d3-4ed5-8c5d-b7b0d4c52516
• SCIP notification number (Finland): 9e76d0ff-aa05-4461-afce-b99522fafa7d
• SCIP notification number (France): bdf0ef46-294f-4fef-b5a4-805e66b7bcc1
• SCIP notification number (Germany): 32febfc8-134f-405e-b6a4-03cce448ffcd
• SCIP notification number (Hungary): 4b93b58c-7965-45fd-a5b5-a700e3736869
• SCIP notification number (Italy): 918d1bf4-c10c-4a77-b1a3-6e81ed51f74c
• SCIP notification number (Netherlands): 0cb95b5b-bb94-453d-b474-0219faa69724
• SCIP notification number (Poland): 7dd96134-180e-4bc3-ad94-3ba9c7e14827
• SCIP notification number (Romania): 53b7b0f7-1879-4bce-9916-cd0af5caf49a
• SCIP notification number (Sweden): bc81b0f2-c4ec-4823-bc31-9ace68c1a9ea

Material data

• Color: blue
• Fire load: 0.041MJ
• Weight: 3.9g

Physical data

• Depth: 40 mm / 1.575 inches
• Height: 15 mm / 0.591 inches
• Width: 8 mm / 0.315 inches

Technical data

• Total number of potentials: 1
