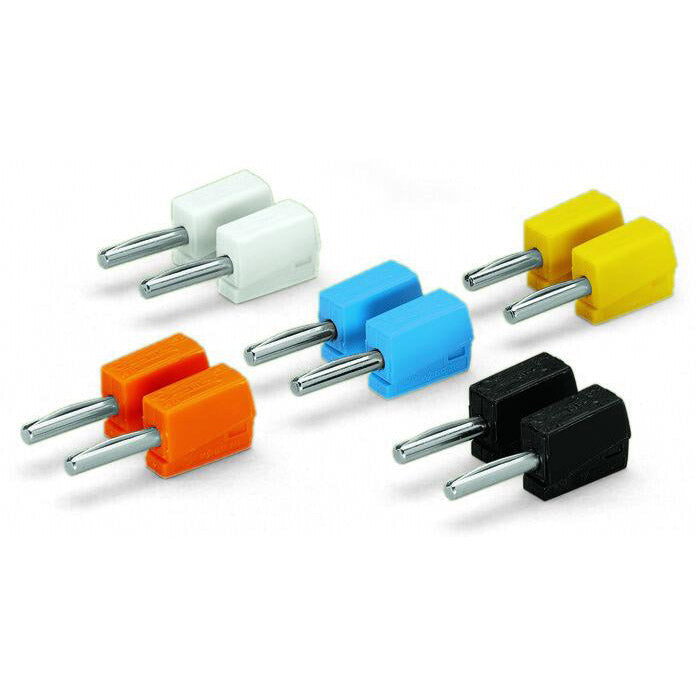

Wago - 215-111

Banana plug - WAGO (215 series) - 1-pole (1P) - for 0.08mm2...2.5mm2 / for #28AWG...#14AWG - Rated current 20A - Orange / White / Black / Blue / Yellow color - with CAGE CLAMP spring connections - Plug-in mounting (8mm width) - equivalent to 215111

Specifications

• Primary brand: WAGO
• Functions: Banana plug
• Poles: 1-pole (1P)
• Rated current: 20A
• Color: Orange|White|Black|Blue|Yellow
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 conductor|for #28AWG...#14AWG conductor
• Mounting mode: Plug-in
• Dimensions: W8mm
• Net Width (mm): 8mm
• Customs Tariff Number: 85366990990
• eClass code: 27-44-03-13
• ETIM code: EC002255
• GTIN code: 4045454293703
• Order code / Manufacturer SKU: 215-111
• Manufacturer product status: Commercialized
• Equivalent to: 215111
• EAN code: 4045454293703
• Compliant with standard(s): RoHS compliant with exemption (6(c))
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Banana plug - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-03-13
• eCl@ss 9.0: 27-44-03-13
• ETIM 8.0: EC002255
• ETIM 9.0: EC002255
• GTIN: 4045454293703
• Packaging type: box
• PU (SPU): 50 pcs

Connection data

• Clamping units: 1
• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 11 mm / 0.35 … 0.43 inches

Electrical data

• Rated current: 20A
• Test voltage: 42V

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): 6cb7a1d1-c0d0-425a-b7aa-ddc1795f71db
• SCIP notification number (Belgium): 7ce487f1-b5ce-48e8-9507-8c83d948a677
• SCIP notification number (Bulgaria): 703cbdab-5670-458c-80be-baa4f7beb026
• SCIP notification number (Czech Republic): cb330e6d-3275-4911-8b75-037bec9d3ddc
• SCIP notification number (Denmark): dbedb628-b092-40ab-9235-3e38100561f1
• SCIP notification number (Finland): a0dbfb59-a8ab-4115-96c6-40fa0edf2183
• SCIP notification number (France): 3e0dc567-9858-4526-9434-c369503d46fa
• SCIP notification number (Germany): 5726ed71-f470-47e1-9a1a-1f57ae70a4fb
• SCIP notification number (Hungary): 9bc9bcab-1e68-4c94-98ed-349c3c71271d
• SCIP notification number (Italy): 63d1c8d1-329b-42d2-ae62-3df0ee3ba319
• SCIP notification number (Netherlands): 2f935e83-8fff-48e2-bb1e-a57e29fe1bff
• SCIP notification number (Poland): ab414ebf-3880-4f57-bcd8-b716cfa6097b
• SCIP notification number (Romania): 0aa388ea-b910-4be5-a982-967bf4983926
• SCIP notification number (Sweden): be25d885-a6de-4afe-84b3-7e737359d828

Material data

• Color: orange
• Fire load: 0.045MJ
• Weight: 3.9g

Physical data

• Depth: 40 mm / 1.575 inches
• Height: 15 mm / 0.591 inches
• Width: 8 mm / 0.315 inches

Technical data

• Total number of potentials: 1
