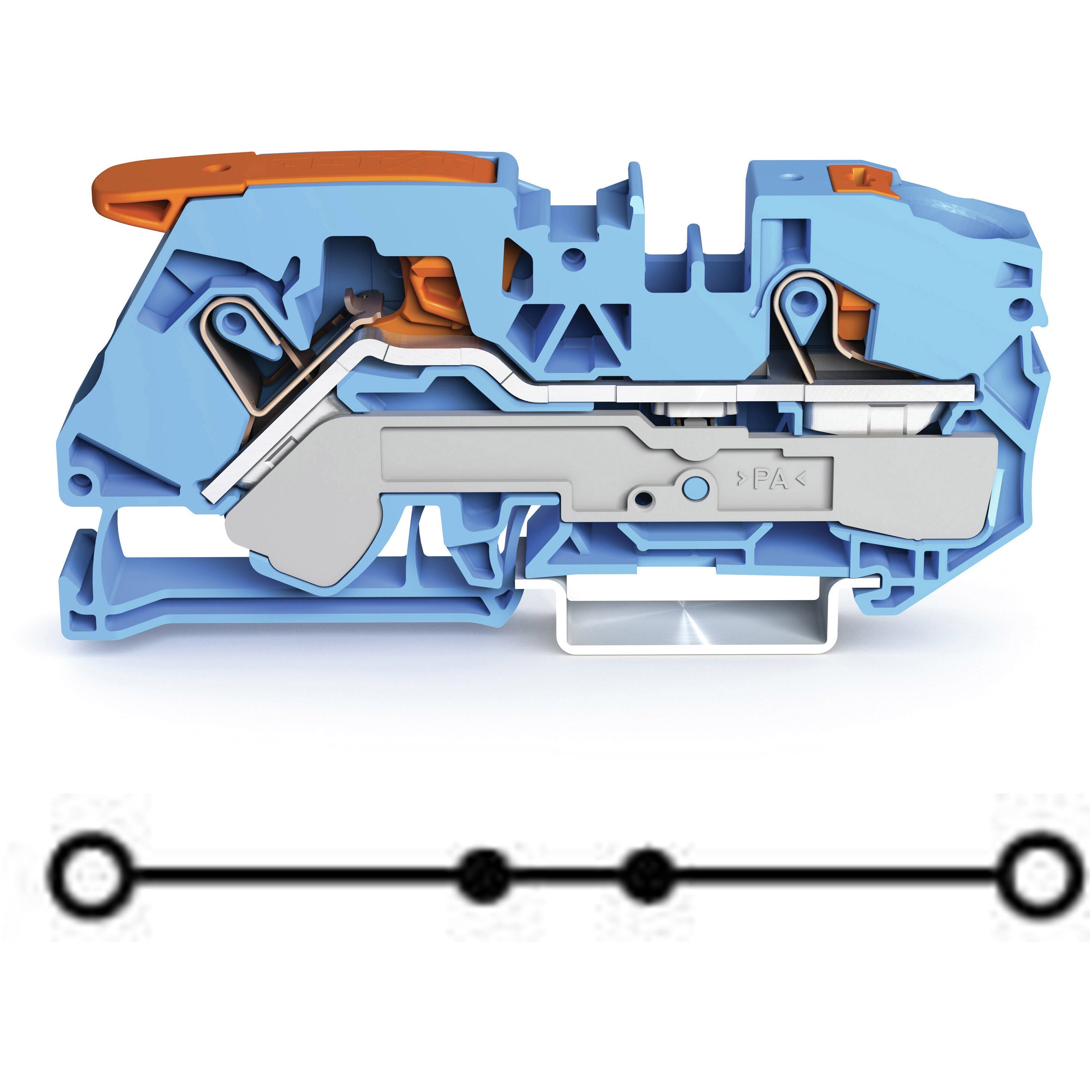

Neutral-through terminal block with 1-deck/level + lever + btn. + side/lateral and center marking slots - Suitable for Ex e II / Ex I applications - with test port - WAGO (2116 TOPJOB S series) - Blue - Neutral-through pole (N) / 2-wires (1 push-in + 1 push-in) (1+1) - 16mm2 nominal cross-section of main feed-through conductor inside the terminal - for 0.5mm2...25mm2 / for #20AWG...#4AWG - Rated current 76A / 90A - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (12mm width) - equivalent to 21165204

Specifications

• Primary brand: WAGO
• Functions: Neutral-through terminal block
• Design: 1-deck/level|lever + btn.|side/lateral and center marking slots|2 jumper slots|Suitable for Ex e II / Ex I applications|with test port
• Poles: Neutral-through pole (N)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 76A|(IEC) 90A|(UL) 85A|(CSA) 78A|(Ex e II) 76A|(Ex e II with jumper) 65A
• Color: Blue|Orange actuator
• Connection capacity: 2-wires (1 push-in + 1 push-in) (1+1)
• Rated operating voltage (Ue): (IEC) 800V|(UL) 600V|(CSA) 600V|(Ex e II) 550V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...25mm2 fine stranded conductors|for 0.5mm2...16mm2 solid conductors|for 0.5mm2...16mm2 fine stranded conductors with insulated ferrule|for 6mm2...16mm2 fine stranded conductors with ferrule; push-in termination|for 2.5mm2...16mm2 solid conductors; push-in termination|for #20AWG...#4AWG fine stranded conductors|for #20AWG...#6AWG solid conductors|for #20AWG...#6AWG fine stranded conductors with insulated ferrule|for #10AWG...#6AWG fine stranded conductors with ferrule; push-in termination|for #14AWG...#6AWG solid conductors; push-in termination|16mm2 nominal cross-section of main feed-through conductor inside the terminal
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H91.5mm x W12mm x D45.2mm
• Net Width (mm): 12mm
• Material: Polyamide (PA) 66
• GTIN code: 4055143754484
• Customs Tariff Number: 85369010000
• ETIM code: EC000897
• eClass code: 27-14-11-20
• Order code / Manufacturer SKU: 2116-5204
• Manufacturer product status: Commercialized
• Equivalent to: 21165204
• EAN code: 4055143754484
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7675|- CSA - DEKRA Certification B.V. - C22.2 - certificate 70175104|- cURus - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-103140|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 19-HG1866350-PDA|- BV - Bureau Veritas S.A. - IEC 60947 - certificate 58186/A0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00003JT|- LR - Lloyds Register - certificate 19/20050|Approvals for hazardous areas|- AEx - UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt - UL 60079 - certificate E185892|- ATEX - Physikalisch Technische Bundesanstalt - EN 60079-0 - certificate PTB ATEX 1012 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)|- CCC - CNEX - GB/T 3836.3 - certificate 2020312313000183 (Ex eb IIC Gb / Ex eb I Mb)|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate IECEx PTB 18.0019U (Ex eb IIC Gb and Ex eb I Mb)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 19.0819 U|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Neutral-through terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4055143754484
• Packaging type: box
• PU (SPU): 20 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Lever
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 25 mm² / 20 … 4 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 6 … 16 mm² / 10 … 6 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 16 mm² / 20 … 6 AWG
• Connection 1 - Nominal cross-section: 16 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  AWG specifications were converted according to IEC.
• Connection 1 - Solid conductor: 0.5 … 16 mm² / 20 … 6 AWG
• Connection 1 - Solid conductor; push-in termination: 2.5 … 16 mm² / 14 … 6 AWG
• Connection 1 - Strip length: 18 … 20 mm / 0.71 … 0.79 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Connection 2 - Actuation type: Push-button
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ex information - Rated current (Ex e II): 76A
• Ex information - Rated current (Ex e II) with jumper: 65A
• Ex information - Rated voltage EN (Ex e II): 550V
• Ex information - Ratings per: ATEX: PTB 18 ATEX 1012 U / IECEx: PTB 18.0019U (Ex eb IIC Gb)
• Ex information - Reference hazardous areas: See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
• Power Loss - Power loss, per pole (potential): 2.426W
• Power Loss - Rated current I_N for specified power loss: 76A
• Power Loss - Resistance value for specified, current-dependent power loss: 0Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 85A
• Ratings per CSA - Rated current CSA (Use Group C): 85A
• Ratings per CSA - Rated voltage CSA (Use Group B): 600V
• Ratings per CSA - Rated voltage CSA (Use Group C): 600V
• Ratings per IEC/EN - Current at conductor cross-section (max.) mm²: 90A
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 76A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1
• Ratings per IEC/EN – Notes - Rated current (note): 15 mm high DIN-35 rails shall be used for a current load higher than 76 A!
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 85A
• Ratings per UL - Rated current UL (Use Group C): 85A
• Ratings per UL - Rated voltage UL (Use Group B): 600V
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Actuator color: orange
• Color: blue
• Fire load: 0.669MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 33.1g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth: 45.2 mm / 1.78 inches
• Depth from upper-edge of DIN-rail: 37.1 mm / 1.461 inches
• Height: 91.5 mm / 3.602 inches
• Width: 12 mm / 0.472 inches
