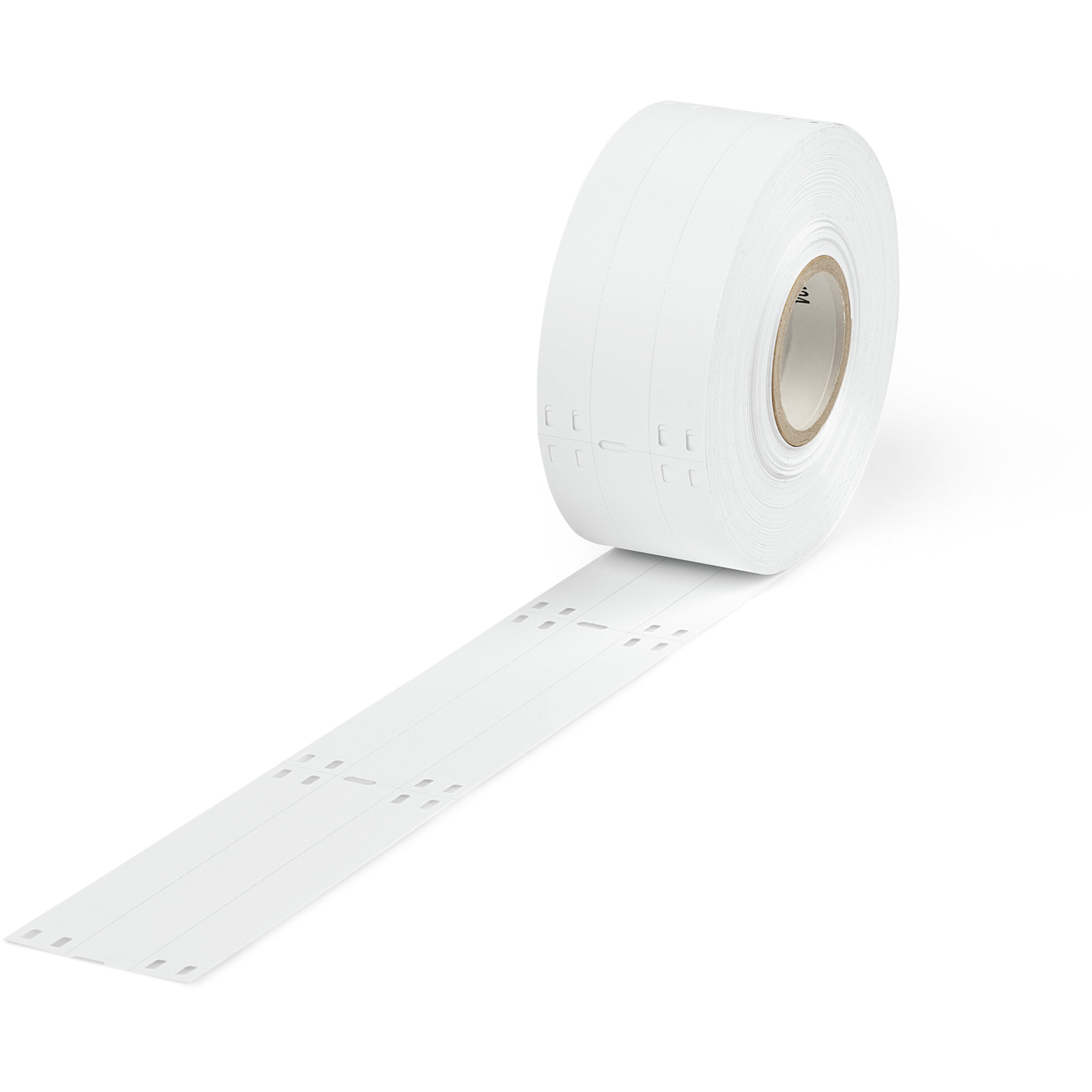

Wago - 211-836

Marking label - WAGO (211 series) - White color - contains 800 labels per roll - Dimensions W100mm x L15mm - equivalent to 211836

Specifications

• Primary brand: WAGO
• Functions: Marking label
• Color: White
• Mounting mode: assembly with cable ties
• Dimensions: W100mm x L15mm|0.17mm thickness
• Material: Halogen-free materials
• Ambient air temperature for operation: -30°C...+120°C
• Humidity: 40-50% relative humidity (RH)
• Contents: 800 labels per roll
• Technical compatibility with: Smart printer
• Customs Tariff Number: 39269097900
• GTIN code: 4055143040891
• ETIM code: EC001530
• eClass code: 27-40-04-01
• Order code / Manufacturer SKU: 211-836
• Manufacturer product status: Commercialized
• Equivalent to: 211836
• EAN code: 4055143040891
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Labelling
• Level 3 category: Wire and cable labels
• Product title: Marking label - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 39269097900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-40-04-01
• eCl@ss 9.0: 27-40-04-01
• ETIM 8.0: EC001530
• ETIM 9.0: EC001530
• GTIN: 4055143040891
• Packaging type: box
• PU (SPU): 1 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -30 … +120 °C
• Ambient temperature (storage): +10 … +21 °C
• Relative humidity: 40 … 50 %

Material data

• Adhesive information: without adhesive
• Color: white
• Halogen-free: Yes
• Material: Polyester
• UV resistance: EN 60068-2-5:2010 Procedure B
• Weight: 600g

Mechanical data

• Mounting type: Mounting with cable ties
• Smear resistance: in conjunction with 258-5005 Ink Ribbon

Physical data

• Depth: 0.17 mm
• Height: 15 mm
• Marking surface: 100 x 15 mm
• Width: 117.5 mm

Technical data

• Delivery form: Roll
• Delivery form configuration: 800 pcs/reel; 2 lines
• Marking: plain
• Marking method: Thermal transfer
• Printing device: Smart Printer (Thermal Transfer Printer)
• Properties: Inner wrap (inside marking area)
