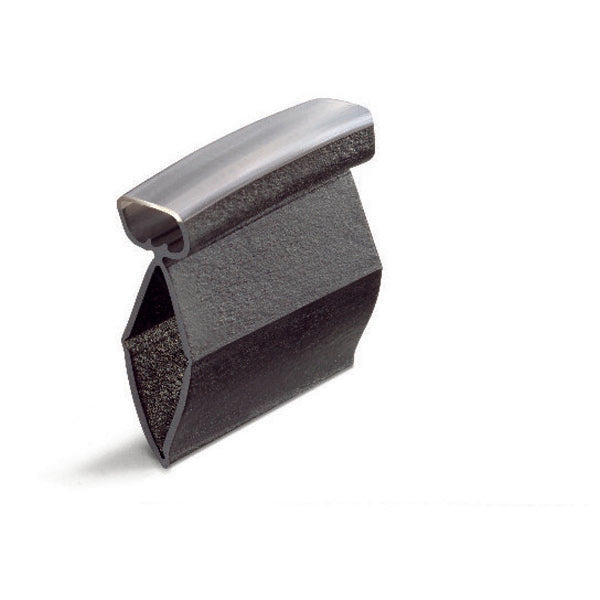

Wago - 211-114

Wire/cable/conductor marker carrier - WAGO (211 series) - Black color - Slide-on directly onto conductor mounting - compatible with 3.7mm...5.9mm diameter conductors - Dimensions L12mm - equivalent to 211114

Specifications

• Primary brand: WAGO
• Functions: Wire/cable/conductor marker carrier
• Color: Black
• Mounting mode: Slide-on directly onto conductor
• Dimensions: L12mm
• Material: Halogen-free materials
• Ambient air temperature for operation: -40°C...+100°C
• Humidity: 40-60% relative humidity (RH)
• Technical compatibility with: 3.7mm...5.9mm diameter conductors
• GTIN code: 4017332104012
• ETIM code: EC001530
• Customs Tariff Number: 39269097900
• eClass code: 27-40-04-01
• Order code / Manufacturer SKU: 211-114
• Manufacturer product status: Commercialized
• Equivalent to: 211114
• EAN code: 4017332104012
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Wire/cable/conductor marker carrier - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 39269097900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-40-04-01
• eCl@ss 9.0: 27-40-04-01
• ETIM 8.0: EC001530
• ETIM 9.0: EC001530
• GTIN: 4017332104012
• Packaging type: box
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 1000 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +100 °C
• Ambient temperature (storage): +10 … +25 °C
• Relative humidity: 40 … 60 %

Material data

• Adhesive information: without adhesive
• Color: black
• Halogen-free: Yes
• Material: Polyurethane
• Weight: 0.3g

Mechanical data

• Mounting type: Sliding on conductor

Physical data

• Length: 12mm

Technical data

• Delivery form: Component
• Printing device: TP 298+
• Properties: 12 mm long; for one marker
• Suitable: for wire diameter 3.7 … 5.9 mm or 2.5 … 6 mm
