Wago - 2106-5307
$13.83
Sale price
$13.83
Regular price

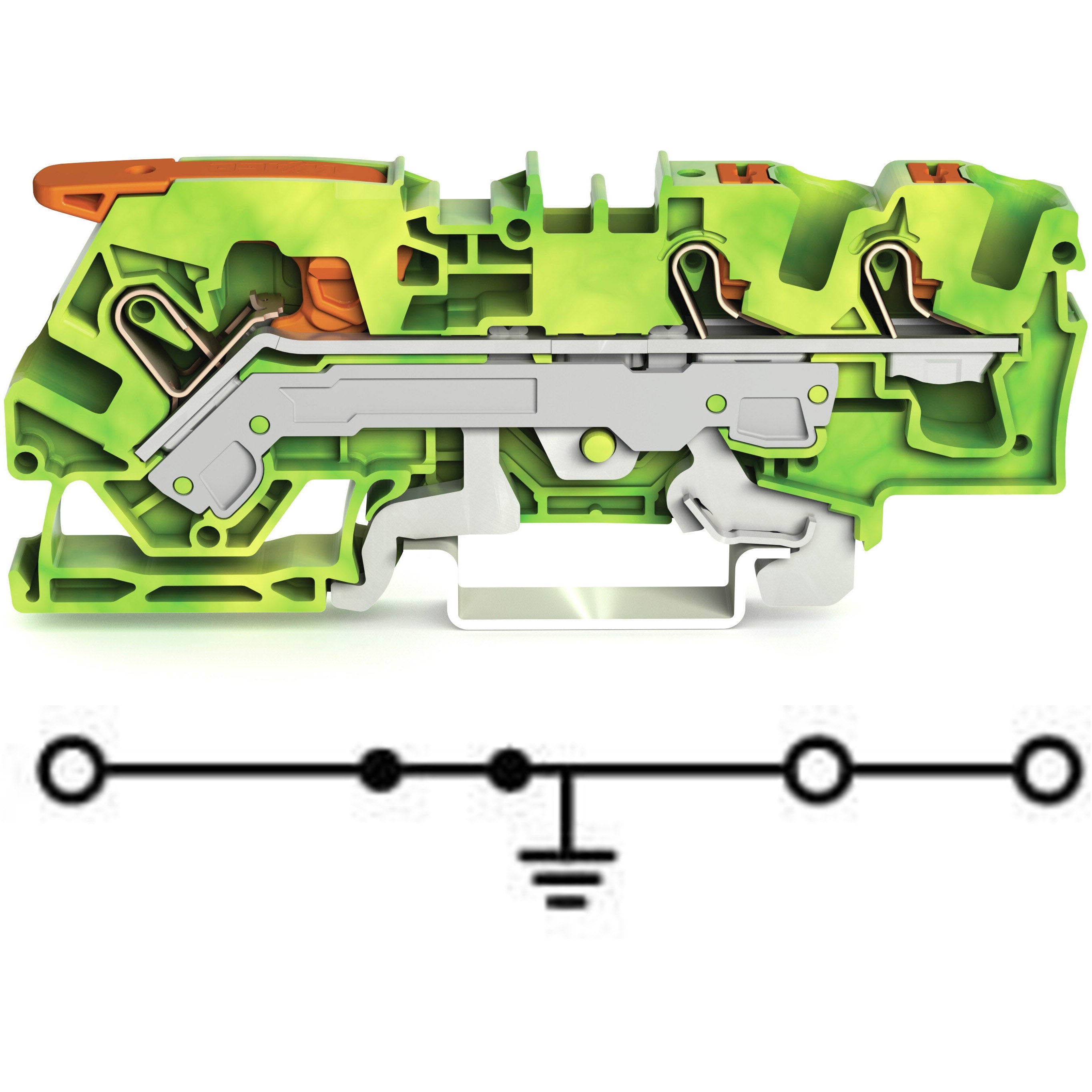

Ground/earthing terminal block with 1-deck/level + lever + btn. + side/lateral and center marking slots - Suitable for Ex e II applications - with test port - WAGO (2106 TOPJOB S series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 3-wires (1 push-in + 2 push-in) (1+2) - 6mm2 nominal cross-section - for 0.5mm2...10mm2 / for #20AWG...#8AWG - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (7.5mm width) - equivalent to 21065307
Specifications
- Primary brand: WAGO
- Functions: Ground/earthing terminal block
- Design: 1-deck/level|lever + btn.|side/lateral and center marking slots|2 jumper slots|Suitable for Ex e II applications|with test port
- Poles: 1 grounding / protective-earth (1PE)
- Temperature: Continuous operating temperature -60°C...+105°C
- Color: Green-Yellow|Orange actuator
- Connection capacity: 3-wires (1 push-in + 2 push-in) (1+2)
- Connection type: Push-in CAGE CLAMP spring connections
- Cross-section: for 0.5mm2...10mm2 fine stranded or solid conductors|for 0.5mm2...6mm2 fine stranded conductors with insulated ferrule|for 2.5mm2...6mm2 fine stranded conductors with ferrule; push-in termination|for 1mm2...10mm2 solid conductors; push-in termination|for #20AWG...#8AWG fine stranded or solid conductors|for #20AWG...#10AWG fine stranded conductors with insulated ferrule|for #16AWG...#10AWG fine stranded conductors with ferrule; push-in termination|for #14AWG...#8AWG solid conductors; push-in termination|6mm2 nominal cross-section
- Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
- Dimensions: H91.2mm x W7.5mm x D32.9mm
- Net Width (mm): 7.5mm
- Material: Polyamide (PA) 66
- GTIN code: 4055143742504
- eClass code: 27-14-11-41
- Customs Tariff Number: 85369010000
- ETIM code: EC000901
- Order code / Manufacturer SKU: 2106-5307
- Manufacturer product status: Commercialized
- Equivalent to: 21065307
- EAN code: 4055143742504
- Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7678|- CSA - DEKRA Certification B.V. - C22.2 - certificate 70175103|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-103226|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 19-HG1866350-PDA|- BV - Bureau Veritas S.A. - IEC 60947 - certificate 58186/A0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00003JT|- LR - Lloyds Register - certificate 19/20050|Approvals for hazardous areas|- AEx - UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt - UL 60079 - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|- ATEX - Physikalisch Technische Bundesanstalt - EN 60079-0 - certificate PTB 18 ATEX 1011 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)|- CCC - CNEX - GB/T 3836.3 - certificate 2020312313000164 (Ex eb IIC Gb / Ex eb I Mb)|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate IECEx PTB 18.0018U (Ex eb IIC Gb resp. Ex eb I Mb)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 19.0823 U|RoHS compliant|material group I|V-0 flammability rating
- Location of origin: Germany
- Level 1 category: Electrical components
- Level 2 category: Terminal blocks
- Product title: Ground/earthing terminal block - 1-deck/level - WAGO (TOPJOB S series)
Commercial data
- Country of origin: DE
- Customs tariff number: 85369010000
- ECCN: NO US CLASSIFICATION
- eCl@ss 10.0: 27-14-11-41
- eCl@ss 9.0: 27-14-11-41
- ETIM 8.0: EC000901
- ETIM 9.0: EC000901
- GTIN: 4055143742504
- Packaging type: box
- PU (SPU): 25 pcs
Connection data
- Clamping units: 3
- Connection 1 - Actuation type: Lever
- Connection 1 - Connectable conductor materials: Copper
- Connection 1 - Connection technology: Push-in CAGE CLAMP®
- Connection 1 - Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
- Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
- Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
- Connection 1 - Nominal cross-section: 6 mm²
- Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Connection 1 - Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
- Connection 1 - Solid conductor; push-in termination: 1 … 10 mm² / 14 … 8 AWG
- Connection 1 - Strip length: 13 … 15 mm / 0.51 … 0.59 inches
- Connection 1 - Wiring direction: Front-entry wiring
- Connection 2 - Actuation type: Push-button
- Number of jumper slots: 2
- Number of levels: 1
- Total number of potentials: 1
Electrical data
- Ex information - Reference hazardous areas: See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
- Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2
Environmental Product Compliance
- RoHS Compliance Status: Compliant,No Exemption
Environmental requirements
- Continuous operating temperature: -60 … +105 °C
Material data
- Actuator color: orange
- Color: green-yellow
- Fire load: 0.143MJ
- Flammability class per UL94: V0
- Insulation material (main housing): Polyamide (PA66)
- Material group: I
-
Note (material data):
Information on material specifications can be found here
- Weight: 26.4g
Mechanical data
- Marking level: Center/side marking
- Mounting type: DIN-35 rail
Physical data
- Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
- Height: 91.2 mm / 3.591 inches
- Width: 7.5 mm / 0.295 inches
