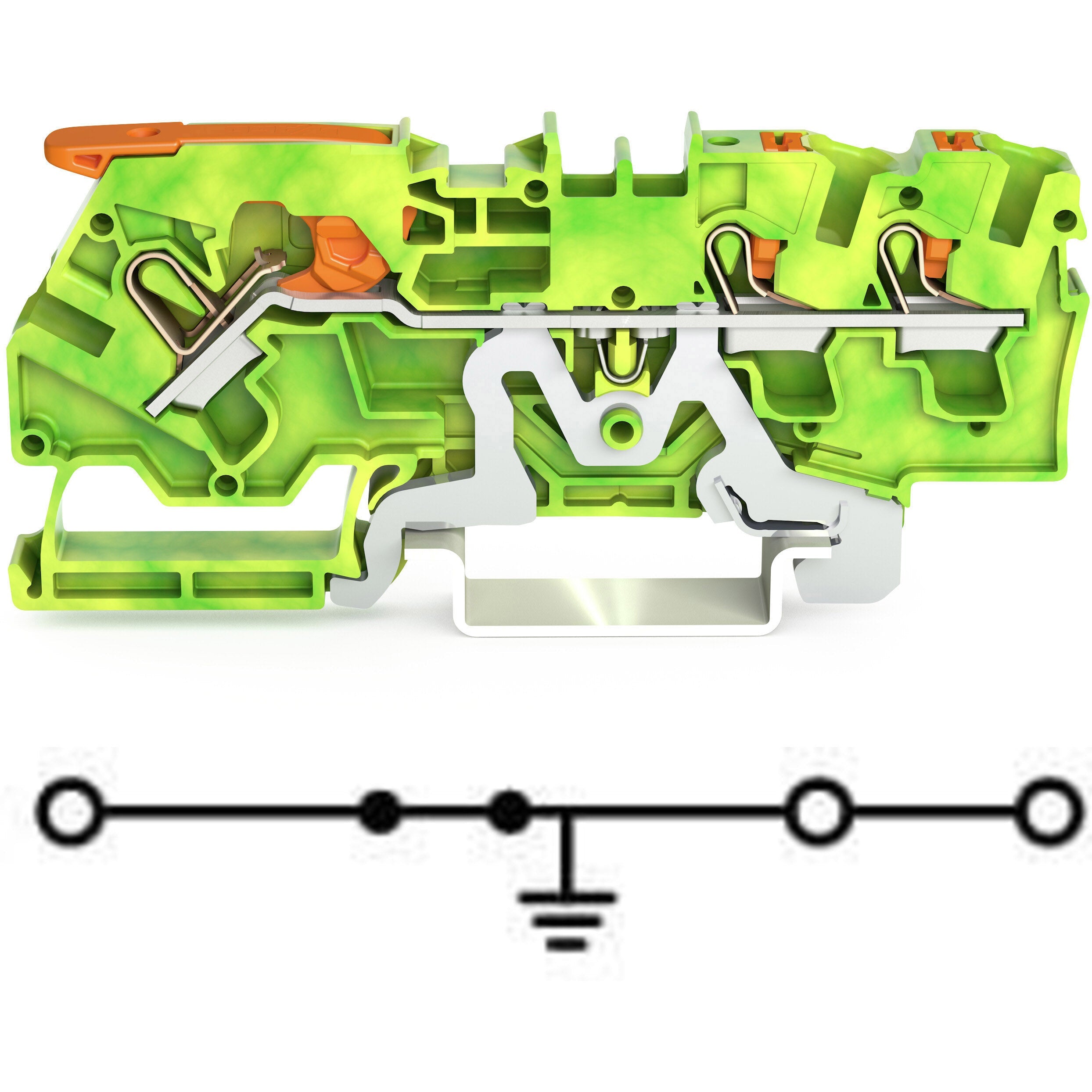

Wago - 2104-5307

Ground/earthing terminal block with 1-deck/level + lever + btn. + side/lateral and center marking slots - with test port - WAGO (2104 TOPJOB S series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 3-wires (1 push-in + 2 push-in) (1+2) - 4mm2 nominal cross-section - for 0.5mm2...6mm2 / for #20AWG...#10AWG - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (6.2mm width) - equivalent to 21045307

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|lever + btn.|side/lateral and center marking slots|2 jumper slots|with test port
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow|Orange actuator
• Connection capacity: 3-wires (1 push-in + 2 push-in) (1+2)
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...6mm2 fine stranded or solid conductors|for 0.5mm2...4mm2 fine stranded conductors with insulated ferrule|for 1.5mm2...4mm2 fine stranded conductors with ferrule; push-in termination|for 1.5mm2...6mm2 solid conductors; push-in termination|for #20AWG...#10AWG fine stranded or solid conductors|for #20AWG...#12AWG fine stranded conductors with insulated ferrule|for #18AWG...#12AWG fine stranded conductors with ferrule; push-in termination|for #14AWG...#10AWG solid conductors; push-in termination|4mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H83.2mm x W6.2mm x D32.9mm
• Net Width (mm): 6.2mm
• Material: Polyamide (PA) 66
• GTIN code: 4055143992565
• Customs Tariff Number: 85369010000
• ETIM code: EC000901
• Order code / Manufacturer SKU: 2104-5307
• Manufacturer product status: Commercialized
• Equivalent to: 21045307
• EAN code: 4055143992565
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7835|- CSA - DEKRA Certification B.V. - C22.2 - certificate 80058036|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-114078|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - UL 60079 - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|- ATEX - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate PTB 20 ATEX 1006 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)|- CCC - CNEX - GB/T 3836.3 - certificate 2020312313000276 (Ex eb IIC Gb / Ex eb I Mb)|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate IECEx PTB 20.0012U (Ex eb IIC Gb or Ex eb I Mb)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 20.2086 U|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4055143992565
• Packaging type: Box
• PU (SPU): 50 pcs

Connection data

• Clamping units: 3
• Connection 1 - Actuation type: Lever
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 1.5 … 4 mm² / 18 … 12 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 1 - Nominal cross-section: 4 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Solid conductor; push-in termination: 1.5 … 6 mm² / 14 … 10 AWG
• Connection 1 - Strip length: 11 … 13 mm / 0.43 … 0.51 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Connection 2 - Actuation type: Push-button
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ex information - Reference hazardous areas: See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Actuator color: orange
• Color: green-yellow
• Fire load: 0.043MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 17.8g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
• Height: 83.2 mm / 3.276 inches
• Width: 6.2 mm / 0.244 inches
