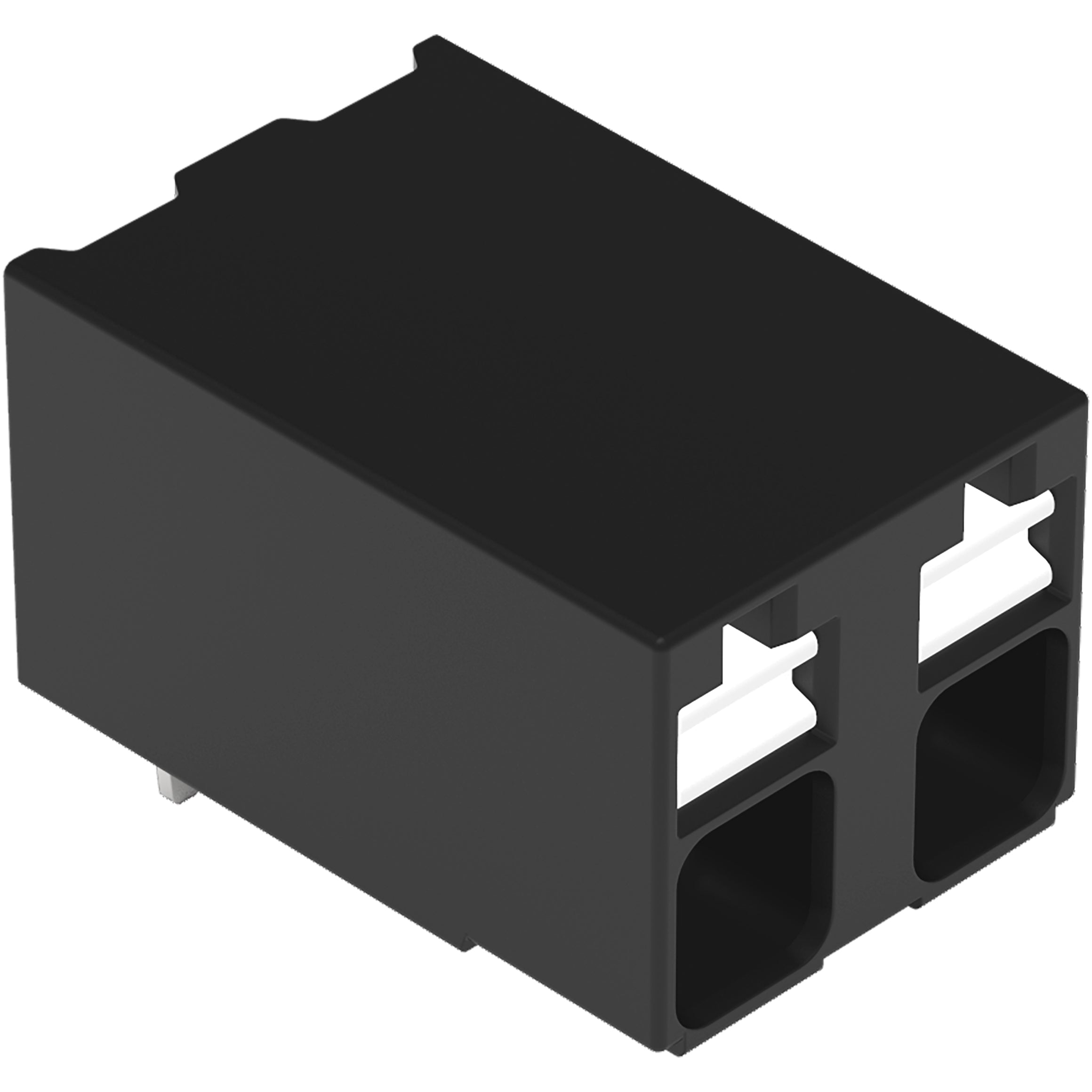

Wago - 2086-3222

WAGO component - equivalent to 20863222

Specifications

• Primary brand: WAGO
• GTIN code: 4066966142426
• Order code / Manufacturer SKU: 2086-3222
• Manufacturer product status: Commercialized
• Equivalent to: 20863222
• EAN code: 4066966142426
• Manufacturer description: THR PCB terminal block; push-button; 1.5mm2; Pin spacing 5mm; 2-pole; Push-in CAGE CLAMP; 1.5mm2; black
• Manufacturer product specifications: Notes - Note -- Application notes Suitable for Lead-free; reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation; type of soldering machine; solder paste); trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 500V|Electrical data - Ratings per IEC/EN - Rated impulse voltage (III / 3) -- 6kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 630V|Electrical data - Ratings per IEC/EN - Rated surge voltage (III/2) -- 6kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated surge voltage (II/2) -- 6kV|Electrical data - Ratings per IEC/EN - Rated current -- 17.5A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 14A|Electrical data - Ratings per UL - Rated voltage UL (Use Group D) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group D) -- 10A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 14A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group D) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group D) -- 14A|Connection data - Clamping units -- 2|Connection data - Total number of potentials -- 2|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Push-button|Connection data - Connection 1 - Solid conductor -- 0.14...1.5mm2 / 28...16 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.14...1.5mm2 / 26...14 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...0.75mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25...1.5mm2|Connection data - Connection 1 - Strip length -- 8...9mm / 0.31...0.35"|Connection data - Connection 1 - Conductor connection direction to PCB -- 0°|Connection data - Connection 1 - Pole number -- 2|Physical data - Pin spacing -- 5mm / 0.197"|Physical data - Width -- 9.2mm / 0.362"|Physical data - Height -- 10.2mm / 0.402"|Physical data - Height from the surface -- 7.8mm / 0.307"|Physical data - Depth -- 13.6mm / 0.535"|Physical data - Solder pin length -- 2.4mm|Physical data - Solder pin dimensions -- 0.3 x 0.8mm|Physical data - Plated through-hole diameter (THR) -- 1 ^{(+0.1)mm|PCB contact - PCB contact -- THR|PCB contact - Solder pin arrangement -- over the entire terminal strip (staggered)|PCB contact - Number of solder pins per potential -- 1|Material data - Color -- black|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyphthalamide (PPA GF)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (ECu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.036MJ|Material data - Weight -- 1.2g|Material data - MSL per J-STD 020D -- 1|Environmental requirements - Limit temperature range -- -60...+105°C|Environmental requirements - Processing temperature -- -35...+60°C|Environmental requirements - Continuous operating temperature -- -60...+105°C|Commercial data - ETIM 9.0 -- EC002643|Commercial data - ETIM 8.0 -- EC002643|Commercial data - ECCN -- NO DATA|Commercial data - PU (SPU) -- 360 pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- CH|Commercial data - GTIN -- 4066966142426|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption}
• Location of origin: Switzerland
• Level 1 category: Electrical components

Commercial data

• Country of origin: CH
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002643
• ETIM 9.0: EC002643
• GTIN: 4066966142426
• Packaging type: Box
• PU (SPU): 360 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Push-button
• Connection 1 - Conductor connection direction to PCB: 0°
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.14 … 1.5 mm² / 26 … 14 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 0.75 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²
• Connection 1 - Pole number: 2
• Connection 1 - Solid conductor: 0.14 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 2

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 14A
• Ratings per CSA - Rated current CSA (Use Group D): 14A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 300V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 1000V
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 17.5A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 6kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 6kV
• Ratings per IEC/EN - Rated voltage (III/2): 630V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 14A
• Ratings per UL - Rated current UL (Use Group D): 10A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group D): 300V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Limit temperature range: -60 … +105 °C
• Processing temperature: -35 … +60 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: black
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.036MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyphthalamide (PPA GF)
• Material group: I
• MSL per J-STD 020D: 1
• Note (material data):
  Information on material specifications can be found here

• Weight: 1.2g

Notes

• Note:

  Application notes:

  Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions.

  |The mechanical stability against external forces of a two-pole terminal block of the 2086 series with alternating pinning is inherently lower than that of a higher-pole terminal block with alternating pinning or a terminal block with double pinning due to its design.
  Therefore, it is essential that in the application ensures, through additional support, short interception of the connected conductors, and appropriate handling instructions for operation, that this terminal block is protected from excessive mechanical stress, such as torsional or bending stress, during conductor connection and in use.

PCB contact

• Number of solder pins per potential: 1
• PCB contact: THR
• Solder pin arrangement: over the entire terminal strip (staggered)

Physical data

• Depth: 13.6 mm / 0.535 inches
• Height: 10.2 mm / 0.402 inches
• Height from the surface: 7.8 mm / 0.307 inches
• Pin spacing: 5 mm / 0.197 inches
• Plated through-hole diameter (THR): 1 ^(+0.1) mm
• Solder pin dimensions: 0.3 x 0.8 mm
• Solder pin length: 2.4mm
• Width: 9.2 mm / 0.362 inches
