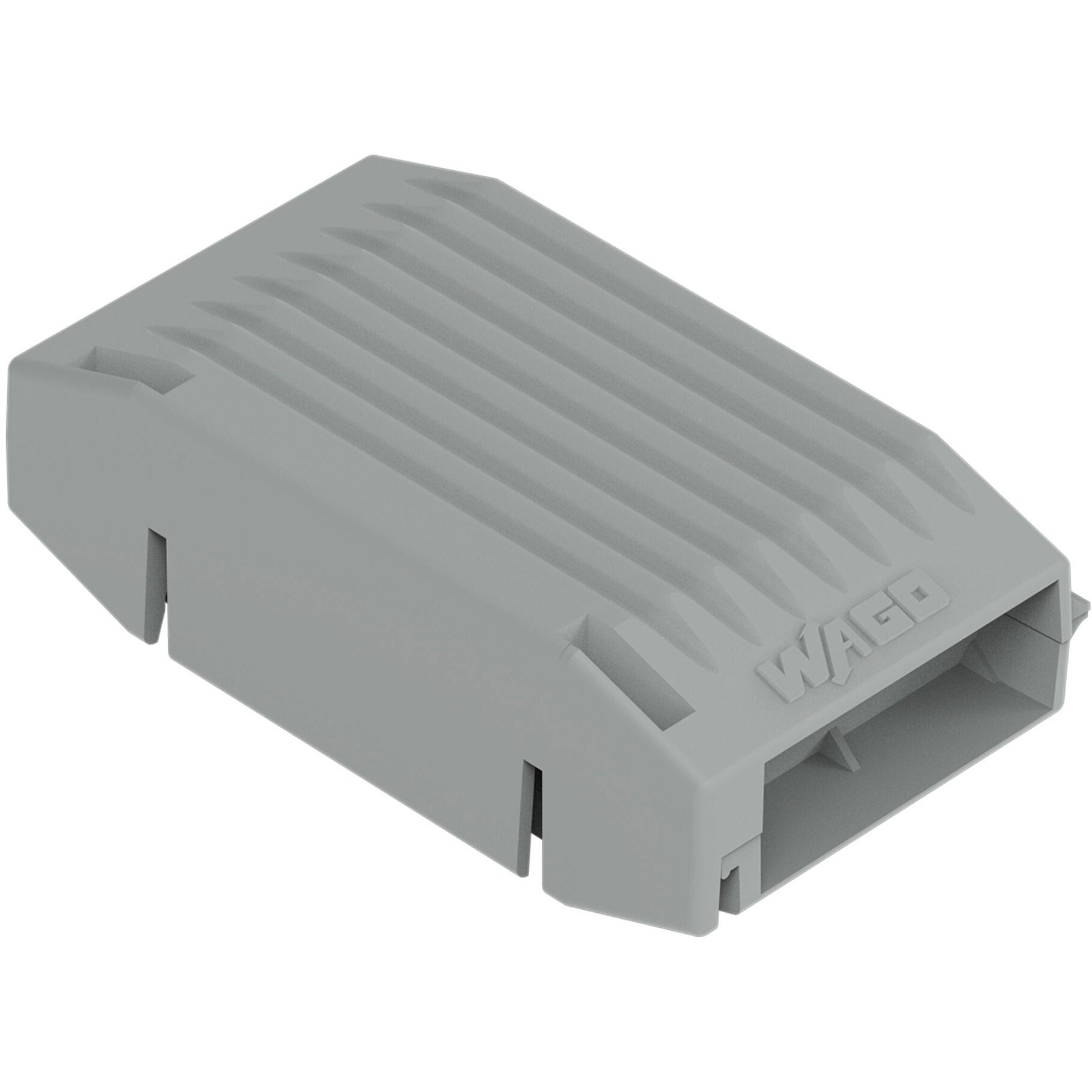

Wago - 207-1372

Inline connection gelbox - size 1 - IPx8 - WAGO (207 series) - Gray color - rated for -55°C...+85°C ambient - compatible with 4mm2 inline splicing connector - equivalent to 2071372

Specifications

• Primary brand: WAGO
• Functions: Inline connection gelbox
• Design: size 1|IPx8
• Color: Gray
• Dimensions: H17.8mm x W32.7mm x D56.9mm
• Material: Polypropylene (PP) housing
• Ambient air temperature for operation: -55°C...+85°C
• Ambient air temperature for storage: 0°C...+40°C
• Technical compatibility with: 4mm2 inline splicing connector
• Customs Tariff Number: 85389099990
• GTIN code: 4066966349962
• ETIM code: EC001170
• Order code / Manufacturer SKU: 207-1372
• Manufacturer product status: Commercialized
• Equivalent to: 2071372
• EAN code: 4066966349962
• Compliant with standard(s): General approvals|- VDE - VDE Pruf- und Zertifizierungsinstitut - EN 60998 - certificate 40051938|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Inline connection gelbox - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001170
• ETIM 9.0: EC001170
• GTIN: 4066966349962
• Packaging type: Box
• PU (SPU): 28 (4) pcs

Connection data

• Connection 1 - Actuation type: Locking system

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -55 … +85 °C
• Ambient temperature (storage): 0 … +40 °C

Material data

• Color: gray
• Housing material: Polypropylene
• Note (material data):
  Information on material specifications can be found here

• Weight: 19.8g

Mechanical data

• Design: Size 1
• Mounting type: Flying leads
• Protection type: IPX8
• Suitable: for 4 mm² inline splicing connectors

Physical data

• Depth: 56.9 mm / 2.205 inches
• Height: 17.8 mm / 0.669 inches
• Width: 32.7 mm / 1.26 inches
