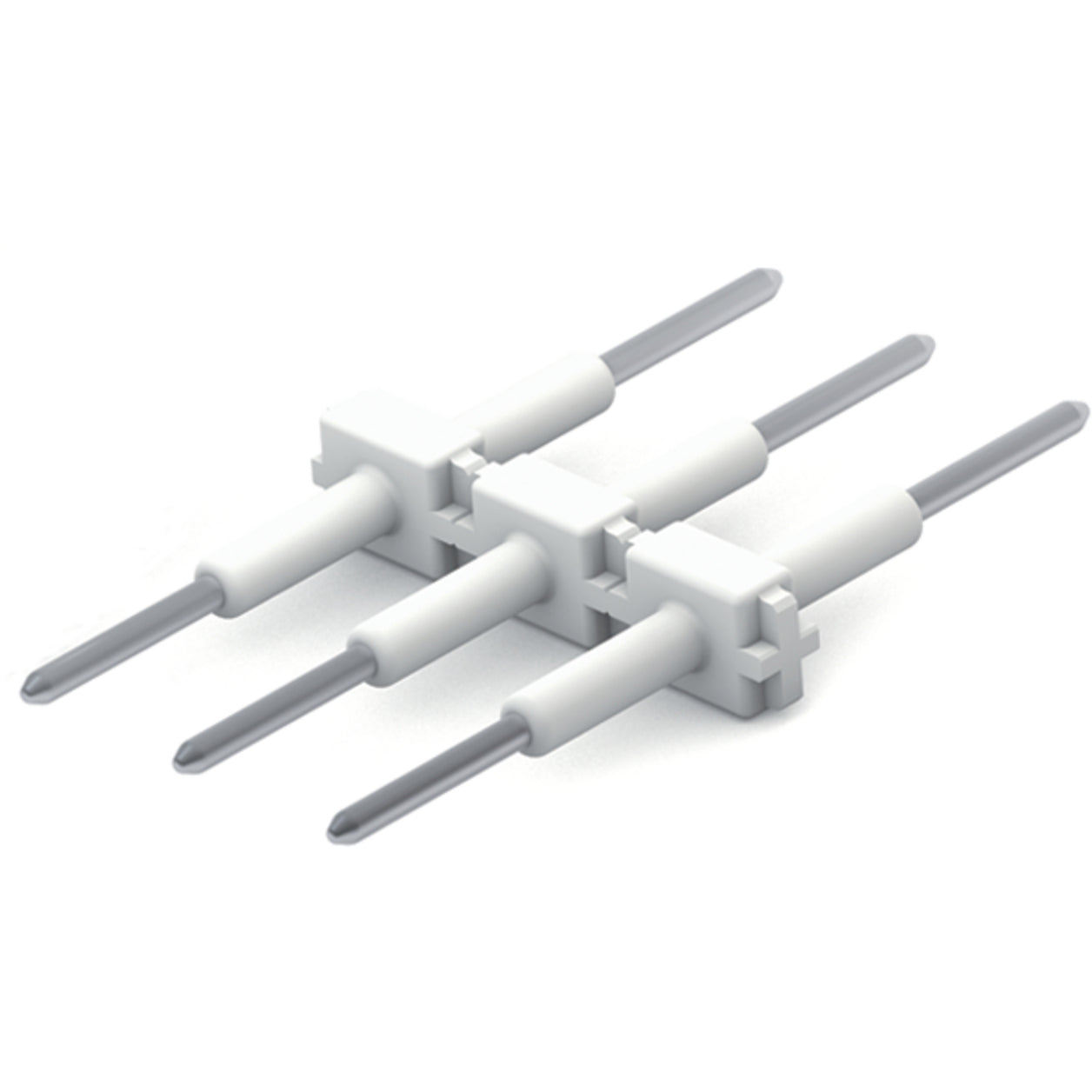

Wago - 2061-903

WAGO component - equivalent to 2061903

Specifications

• Primary brand: WAGO
• GTIN code: 4055143656801
• Order code / Manufacturer SKU: 2061-903
• Manufacturer product status: Commercialized
• Equivalent to: 2061903
• EAN code: 4055143656801
• Manufacturer description: Board-to-Board Link; Pin spacing 6mm; 3-pole; Length 30mm; white
• Location of origin: China
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 250V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 4kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 4kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 630V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 4kV|Electrical data - Ratings per IEC/EN - Rated current -- 9A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Connection data - Total number of potentials -- 3|Connection data - Connection 1 - Pole number -- 3|Physical data - Pin spacing -- 6mm / 0.236"|Physical data - Width -- 17.7mm / 0.697"|Physical data - Height -- 2.5mm / 0.098"|Physical data - Depth -- 30mm / 1.181"|Mechanical data - Mating cycles (max.) -- 10|Mechanical data - Number of mating cycles -- 10 connections/disconnections (max.)|Mechanical data - Suitable -- for SMD PCB terminal blocks (2061 Series)|Material data - Color -- white|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Contact material -- Copper alloy|Material data - Contact plating -- Silver|Material data - Weight -- 0.8g|Environmental requirements - Limit temperature range -- -60...+105°C|Commercial data - eClass 10.0 -- 27-14-11-92|Commercial data - eClass 9.0 -- 27-14-11-92|Commercial data - ETIM 9.0 -- EC002848|Commercial data - ETIM 8.0 -- EC002848|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 200 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- CN|Commercial data - GTIN -- 4055143656801|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts

Commercial data

• Country of origin: CN
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-92
• eCl@ss 9.0: 27-14-11-92
• ETIM 8.0: EC002848
• ETIM 9.0: EC002848
• GTIN: 4055143656801
• Packaging type: box
• PU (SPU): 200 pcs

Connection data

• Connection 1 - Pole number: 3
• Total number of potentials: 3

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 630V
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 9A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 4kV
• Ratings per IEC/EN - Rated voltage (III/2): 320V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Limit temperature range: -60 … +105 °C

Material data

• Color: white
• Contact material: Copper alloy
• Contact plating: Silver
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 0.8g

Mechanical data

• Mating cycles (max.): 10
• Number of mating cycles: 10 connections/disconnections (max.)
• Suitable: for SMD PCB terminal blocks (2061 Series)

Physical data

• Depth: 30 mm / 1.181 inches
• Height: 2.5 mm / 0.098 inches
• Pin spacing: 6 mm / 0.236 inches
• Width: 17.7 mm / 0.697 inches
