Wago - 206-1216
  • Wago - 206-1216
  • Wago - 206-1216
Wago - 206-1216

Wago - 206-1216

$420.60
$420.60

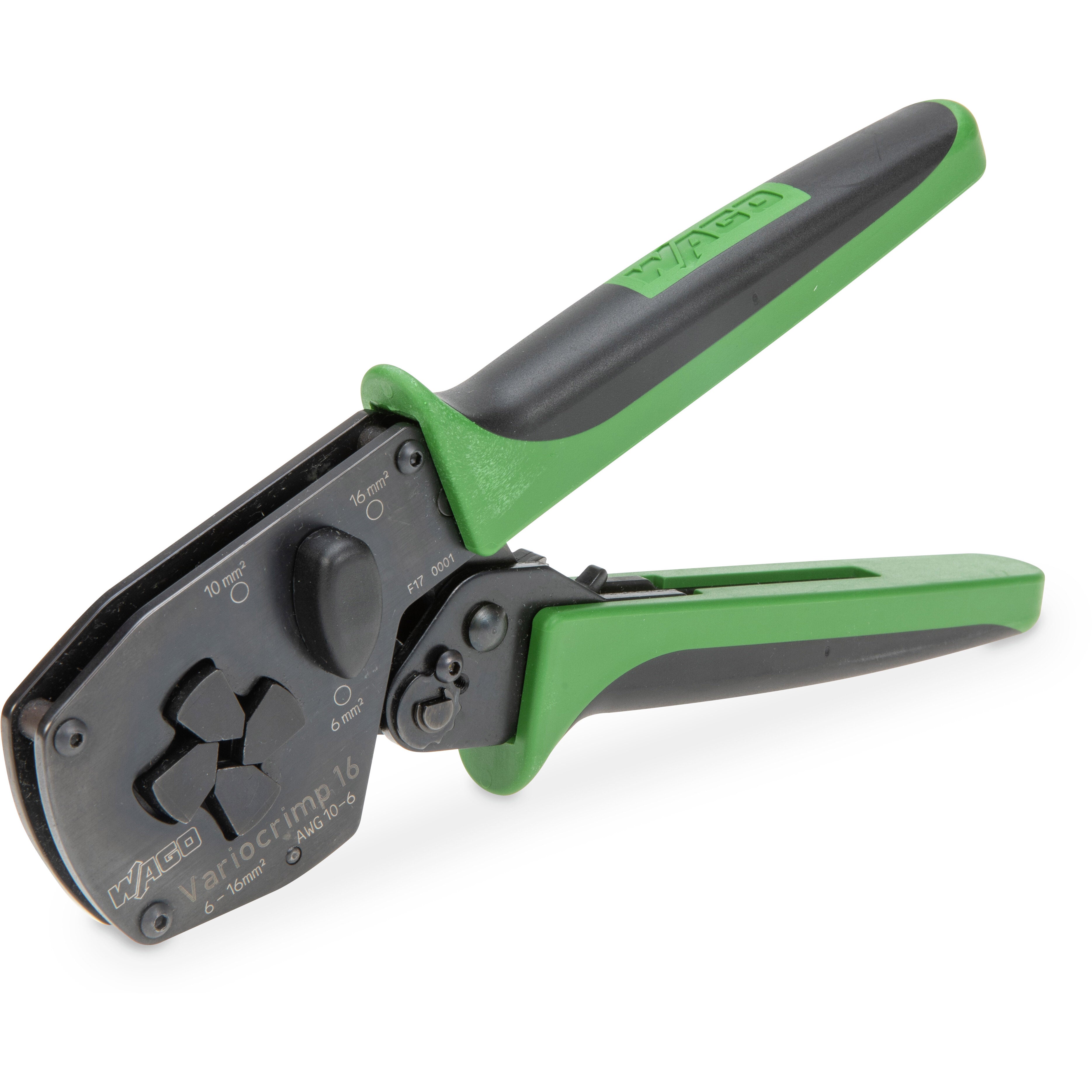

Crimping pliers (Variocrimp 16) - lateral/side insertion - square crimp - WAGO (206 series) - for 6mm2; 10mm2 - compatible with insulated and uninsulated ferrules - equivalent to 2061216

Specifications

  • Primary brand: WAGO
  • Functions: Crimping pliers (Variocrimp 16)
  • Design: lateral/side insertion|square crimp
  • Cross-section: for 6mm2; 10mm2 and 16mm2 conductors
  • Technical compatibility with: insulated and uninsulated ferrules
  • Customs Tariff Number: 82032000000
  • ETIM code: EC000168
  • GTIN code: 4055143885461
  • Order code / Manufacturer SKU: 206-1216
  • Manufacturer product status: Commercialized
  • Equivalent to: 2061216
  • EAN code: 4055143885461
  • Compliant with standard(s): RoHS compliant
  • Location of origin: Germany
  • Level 1 category: Hand tools
  • Level 2 category: Cable tools
  • Level 3 category: Cable end crimping
  • Product title: Crimping pliers (Variocrimp 16) - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 82032000000
  • ECCN: NO US CLASSIFICATION
  • ETIM 8.0: EC000168
  • ETIM 9.0: EC000168
  • GTIN: 4055143885461
  • Packaging type: box
  • PU (SPU): 1 pcs

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Material data

  • Color: green/black
  • Weight: 600g

Mechanical data

  • Conductor cross-section setting, automatic: No
  • Conductor Entry: side
  • Crimping pressure, adjustable: No
  • Crimping shape: square crimping
  • Ratchet mechanism: Yes

Notes

  • Note:

    Application Notes

    • Select the wire gauge on “Variocrimp 16” before crimping.
    • Only one crimping station is needed to handle the specified conductor range.
    • Uniform, compact crimping all four sides for high conductor retention.
    • No need to center the ferrules into the terminals.
    • Crimping can be performed from either side (for left- or right-handed users).
    • Built-in ratchet mechanism ensures gas-tight crimp connection.
    • Crimping tools open automatically after crimping operation is complete.
    • Ergonomically designed handles.

    What is a “gas-tight” connection?

    In a gas-tight connection, the conductor and the ferrule are compressed, eliminating all spaces. Under normal atmospheric conditions, neither a liquid nor gaseous medium can penetrate the crimped connection.

    Oxidation between crimped single conductors is prevented, virtually eliminating the possibility of any increase in the crimped connection’s resistance. In some exceptional cases, minute, isolated spaces may be present. However, these instances can be considered as closed off due to the twisted conductor.

    Inadequate crimping can allow the conductor to be pulled out of the connection. Hollow spaces also remain, permitting oxidation formation

    and an increase in contact resistance.

    Elevated resistance is detrimental for both signal transmission (signal flow is damped) and power transmission, resulting in power loss and contact heating (risk of fire).

    Crimping tools with built-in ratchets are recommended (e.g., WAGO Crimping Tools. These tools open automatically after the crimping operation is complete. Space-saving crimping from all four sides is ideal for spring clamp termination.

    Ferruled conductor cross-sections specified for WAGO products are based on this crimping method.

Physical data

  • Depth: 207 mm / 8.15 inches
  • Width: 75 mm / 2.953 inches
