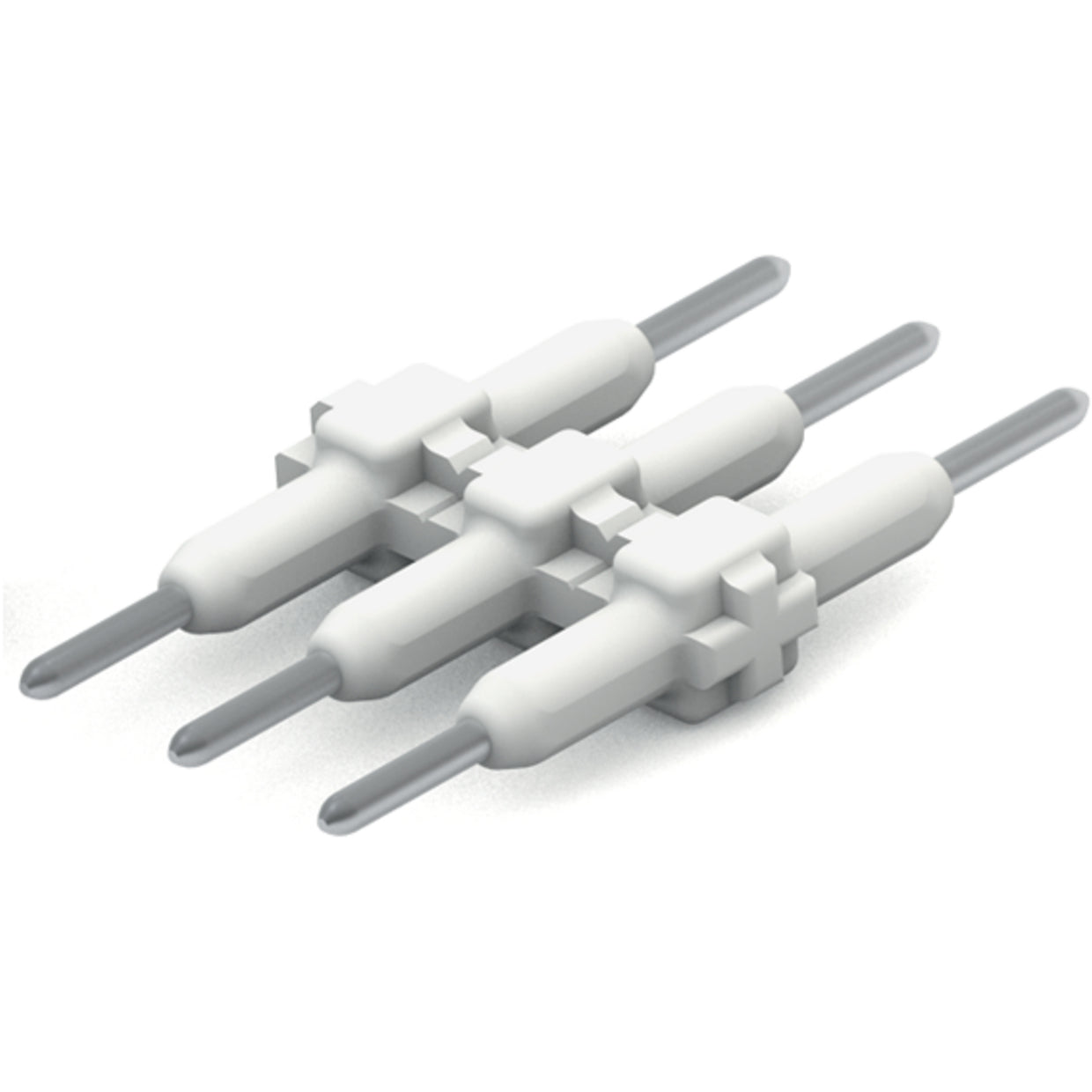

Wago - 2059-903

WAGO component - equivalent to 2059903

Specifications

• Primary brand: WAGO
• GTIN code: 4055143610063
• Order code / Manufacturer SKU: 2059-903
• Manufacturer product status: Commercialized
• Equivalent to: 2059903
• EAN code: 4055143610063
• Manufacturer description: Board-to-Board Link; Pin spacing 3mm; 3-pole; Length 15.3mm; white
• Location of origin: China
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 63V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 2.5kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 160V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 2.5kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 2.5kV|Electrical data - Ratings per IEC/EN - Rated current -- 3A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Connection data - Total number of potentials -- 3|Connection data - Connection 1 - Pole number -- 3|Physical data - Pin spacing -- 3mm / 0.118"|Physical data - Width -- 8.7mm / 0.343"|Physical data - Height -- 2.5mm / 0.098"|Physical data - Depth -- 15.3mm / 0.602"|Mechanical data - Mating cycles (max.) -- 10|Mechanical data - Number of mating cycles -- 10 connections/disconnections (max.)|Mechanical data - Suitable -- for SMD PCB terminal blocks (2059 Series)|Material data - Color -- white|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Contact material -- Copper alloy|Material data - Contact plating -- Silver|Material data - Fire load -- 0.002MJ|Material data - Weight -- 0.2g|Environmental requirements - Limit temperature range -- -60...+105°C|Environmental requirements - Environmental Testing (Environmental Conditions) - Test specification / Railway applications - / Rolling stock - / Electronic equipment -- DIN EN 50155 (VDE 0115-200)2022-06|Environmental requirements - Environmental Testing (Environmental Conditions) - Test procedure / Railway applications - / Rolling stock equipment - / Shock and vibration tests -- DIN EN 61373 (VDE 0115-0106)2011-04|Environmental requirements - Environmental Testing (Environmental Conditions) - Spectrum/Installation location -- Service life test; Category 1; Class A/B|Environmental requirements - Environmental Testing (Environmental Conditions) - Function test with noise-like vibration -- Test passed according to Section 8 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Frequency -- f₁ = 5Hz to f₂ = 150Hz|Environmental requirements - Environmental Testing (Environmental Conditions) - Acceleration -- 0.101g (highest test level used for all axes) / 0.572g (highest test level used for all axes) / 5g (highest test level used for all axes)|Environmental requirements - Environmental Testing (Environmental Conditions) - Test duration per axis -- 10 min. / 5 h|Environmental requirements - Environmental Testing (Environmental Conditions) - Test directions -- X; Y and Z axes|Environmental requirements - Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration -- Test passed according to Section 9 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Extended test scope Monitoring for contact faults/interruptions -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Extended test scope Voltage drop measurement before and after each axis -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock test -- Test passed according to Section 10 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock form -- Half sine|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock duration -- 30ms|Environmental requirements - Environmental Testing (Environmental Conditions) - Number of shocks per axis -- 3 pos. und 3 neg.|Environmental requirements - Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment -- Passed|Commercial data - eClass 10.0 -- 27-14-11-92|Commercial data - eClass 9.0 -- 27-14-11-92|Commercial data - ETIM 9.0 -- EC002848|Commercial data - ETIM 8.0 -- EC002848|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 375 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- CN|Commercial data - GTIN -- 4055143610063|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts

Commercial data

• Country of origin: CN
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-92
• eCl@ss 9.0: 27-14-11-92
• ETIM 8.0: EC002848
• ETIM 9.0: EC002848
• GTIN: 4055143610063
• Packaging type: box
• PU (SPU): 375 pcs

Connection data

• Connection 1 - Pole number: 3
• Total number of potentials: 3

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 320V
• Ratings per IEC/EN - Nominal voltage (III/3): 63V
• Ratings per IEC/EN - Rated current: 3A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 2.5kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 2.5kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 2.5kV
• Ratings per IEC/EN - Rated voltage (III/2): 160V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Limit temperature range: -60 … +105 °C

Material data

• Color: white
• Contact material: Copper alloy
• Contact plating: Silver
• Fire load: 0.002MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 0.2g

Mechanical data

• Mating cycles (max.): 10
• Number of mating cycles: 10 connections/disconnections (max.)
• Suitable: for SMD PCB terminal blocks (2059 Series)

Physical data

• Depth: 15.3 mm / 0.602 inches
• Height: 2.5 mm / 0.098 inches
• Pin spacing: 3 mm / 0.118 inches
• Width: 8.7 mm / 0.343 inches
