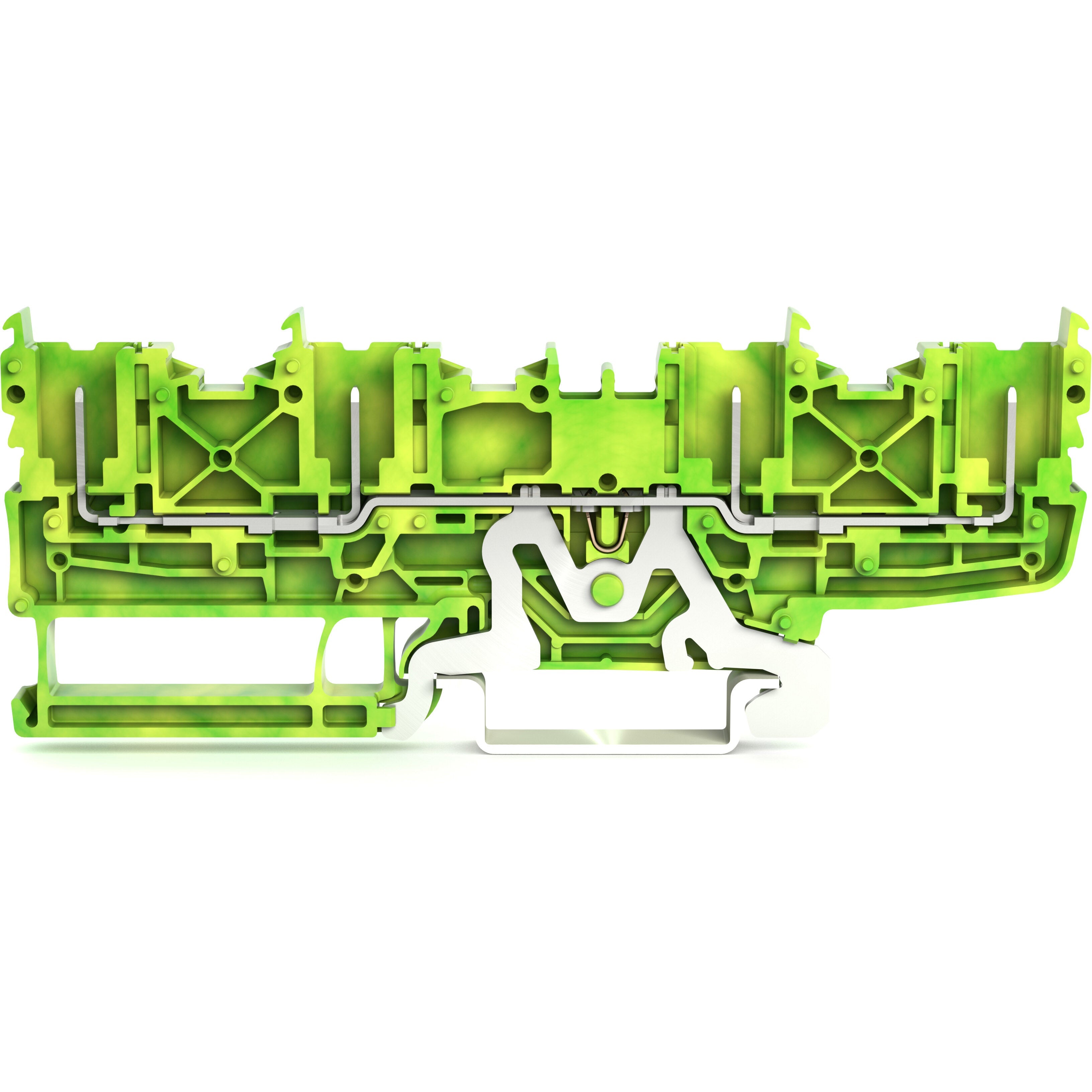

Carrier ground/earthing terminal block with 1-deck/level + side/lateral and center marking slots - WAGO (2022 X-COM S series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 4-wires (2 plug-in pins + 2 plug-in pins) (2+2) - with Plug-in pin connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (5.2mm width) - equivalent to 20221807

Specifications

• Primary brand: WAGO
• Functions: Carrier ground/earthing terminal block
• Design: 1-deck/level|side/lateral and center marking slots
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 4-wires (2 plug-in pins + 2 plug-in pins) (2+2)
• Connection type: Plug-in pin connections
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H106mm x W5.2mm x D32.5mm
• Net Width (mm): 5.2mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85366990990
• GTIN code: 4055143927123
• ETIM code: EC000901
• Order code / Manufacturer SKU: 2022-1807
• Manufacturer product status: Commercialized
• Equivalent to: 20221807
• EAN code: 4055143927123
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 2437422|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR CCA NL-7864|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-116567|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- Railway - WAGO GmbH & Co. KG - certificate Z00004394.000|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Carrier ground/earthing terminal block - 1-deck/level - WAGO (X-COM S series)

Commercial data

• Country of origin: CN
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4055143927123
• Packaging type: Box
• PU (SPU): 50 pcs

Connection data

• Female plug slots: 4
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed

Material data

• Color: green-yellow
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 14.7g

Mechanical data

• Design: horizontal type
• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Notes

• Safety Information: A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM®-SYSTEM terminal strip.

Physical data

• Depth from upper-edge of DIN-rail: 32.5 mm / 1.28 inches
• Height: 106 mm / 4.173 inches
• Width: 5.2 mm / 0.205 inches
