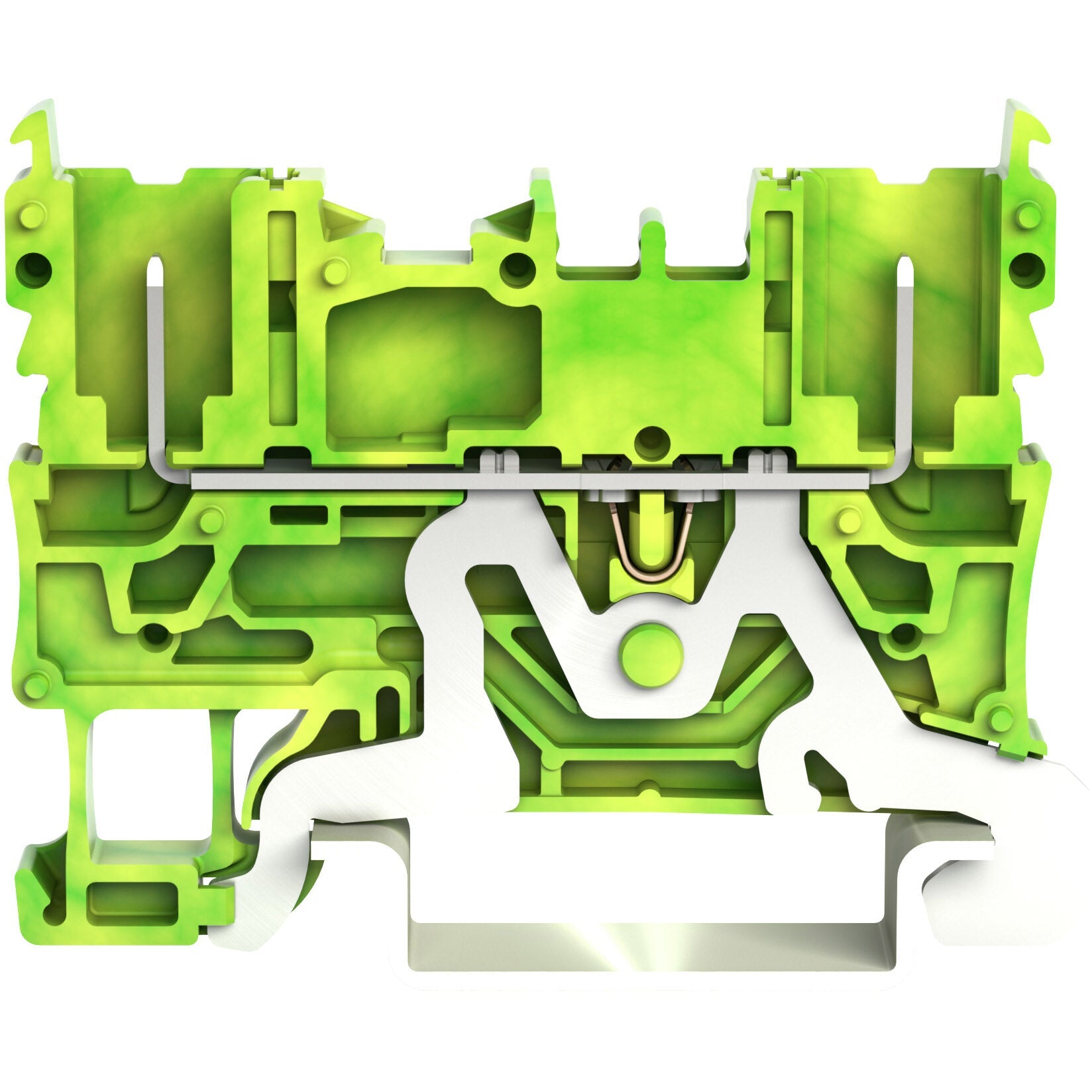

Wago - 2022-1607

Carrier ground/earthing terminal block with 1-deck/level + side/lateral and center marking slots - WAGO (2022 X-COM S series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 plug-in pin + 1 plug-in pin) (1+1) - with Plug-in pin connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (5.2mm width) - equivalent to 20221607

Specifications

• Primary brand: WAGO
• Functions: Carrier ground/earthing terminal block
• Design: 1-deck/level|side/lateral and center marking slots
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 plug-in pin + 1 plug-in pin) (1+1)
• Connection type: Plug-in pin connections
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H52mm x W5.2mm x D32.5mm
• Net Width (mm): 5.2mm
• Material: Polyamide (PA) 66
• GTIN code: 4055143828871
• ETIM code: EC000901
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 2022-1607
• Manufacturer product status: Commercialized
• Equivalent to: 20221607
• EAN code: 4055143828871
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 2437422|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR CCA NL-7864|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-116567|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Carrier ground/earthing terminal block - 1-deck/level - WAGO (X-COM S series)

Commercial data

• Country of origin: CN
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4055143828871
• Packaging type: Box
• PU (SPU): 50 pcs

Connection data

• Female plug slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C

Material data

• Color: green-yellow
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 8.3g

Mechanical data

• Design: horizontal type
• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Notes

• Safety Information: A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM®-SYSTEM terminal strip.

Physical data

• Depth from upper-edge of DIN-rail: 32.5 mm / 1.28 inches
• Height: 52 mm / 2.047 inches
• Width: 5.2 mm / 0.205 inches
