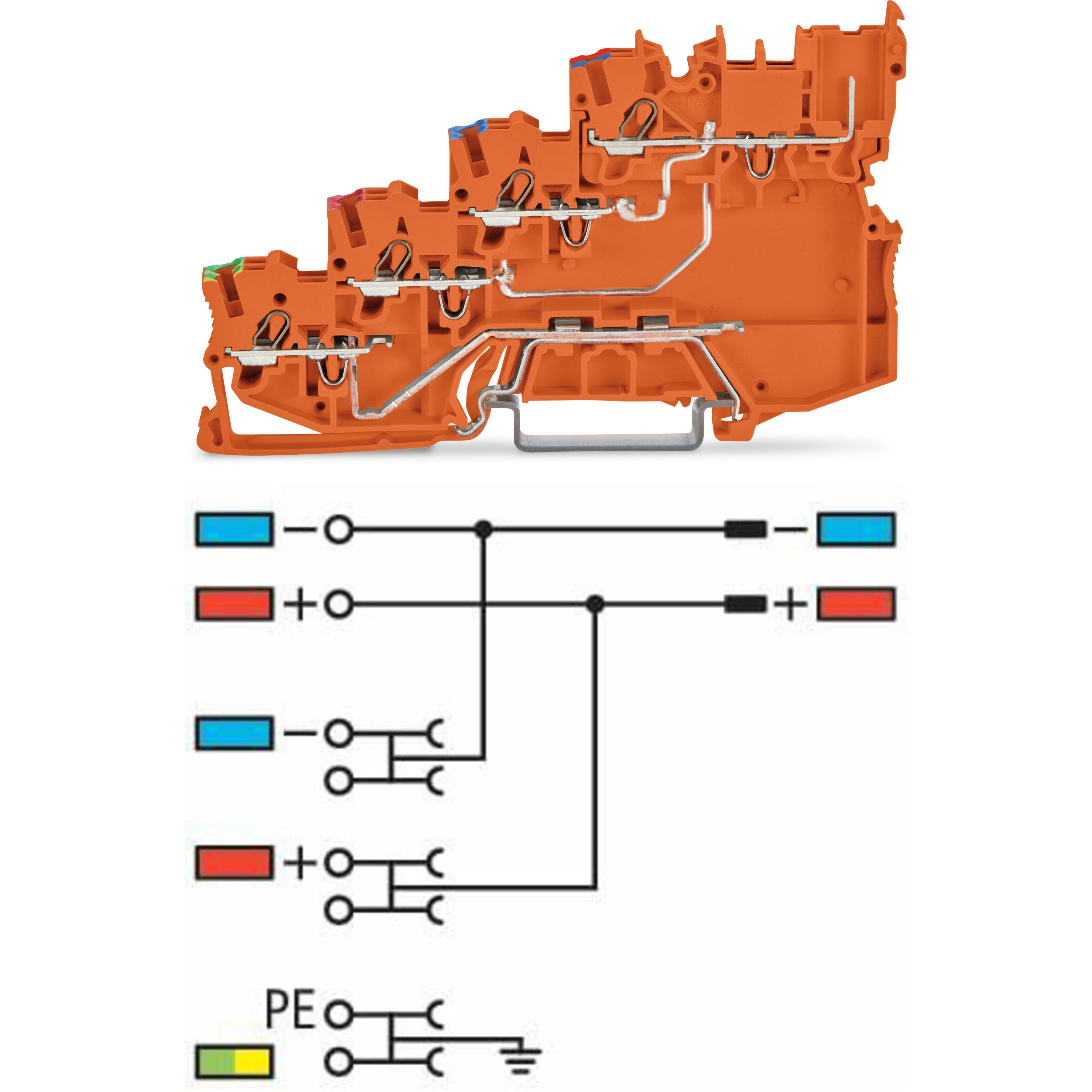

Wago - 2020-5477

Sensr. suppl. terminal block with 4-decks/levels (quadruple-deck) + ground contact + center marking slot - for PNP-(high-side) switching sensr. - WAGO (2020 TOPJOB S series) - Orange - 4-conductors / 8-wires (8 push-in) - 1mm2 nominal cross-section - for 0.14mm2...1.5mm2 / for #24AWG...#16AWG - Rated current 13.5A - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (7mm width) - equivalent to 20205477

Specifications

• Primary brand: WAGO
• Functions: Sensr. suppl. terminal block
• Design: 4-decks/levels (quadruple-deck)|ground contact|center marking slot|5 jumper slots|for PNP-(high-side) switching sensr.
• Poles: 4-conductors
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 13.5A|(UL) 15A|(CSA) 10A
• Color: Orange
• Connection capacity: 8-wires (8 push-in)
• Rated operating voltage (Ue): (UL) 24V|(CSA) 24V
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.14mm2...1.5mm2 fine stranded or solid conductors|for 0.14mm2...0.75mm2 fine stranded conductors with insulated ferrule|for 0.5mm2...0.75mm2 fine stranded conductors with ferrule; push-in termination|for 0.5mm2...1.5mm2 solid conductors; push-in termination|for #24AWG...#16AWG fine stranded or solid conductors|for #24AWG...#18AWG fine stranded conductors with insulated ferrule|for #20AWG...#18AWG fine stranded conductors with ferrule; push-in termination|for #20AWG...#16AWG solid conductors; push-in termination|1mm2 nominal cross-section
• Mounting mode: DIN-35 rail
• Dimensions: H97.3mm x W7mm x D52.4mm
• Net Width (mm): 7mm
• Material: Polyamide (PA) 66
• GTIN code: 4055143525510
• ETIM code: EC000900
• eClass code: 27-14-11-28
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 2020-5477
• Manufacturer product status: Commercialized
• Equivalent to: 20205477
• EAN code: 4055143525510
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7617|- CSA - DEKRA Certification B.V. - C22.2 - certificate 2516073|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-100670|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Sensr. suppl. terminal block - 4-decks/levels (quadruple-deck) - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-28
• eCl@ss 9.0: 27-14-11-28
• ETIM 8.0: EC000900
• ETIM 9.0: EC000900
• GTIN: 4055143525510
• Packaging type: Box
• PU (SPU): 15 pcs

Connection data

• Clamping units: 8
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper|Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 0.75 mm² / 20 … 18 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.14 … 0.75 mm² / 24 … 18 AWG
• Connection 1 - Nominal cross-section: 1 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Connection 1 - Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
• Connection 1 - Strip length: 9 … 11 mm / 0.35 … 0.43 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Female plug slots: 2
• Number of jumper slots: 5
• Number of levels: 4
• Total number of potentials: 5

Electrical data

• General information - LED schaltend für: PNP
• Power Loss - Power loss, per pole (potential): 0.434W
• Power Loss - Rated current I_N for specified power loss: 13.5A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.002Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group C): 10A
• Ratings per CSA - Rated voltage CSA (Use Group C): 300V
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Rated current: 13.5A
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 15A
• Ratings per UL - Rated current UL (Use Group D): 15A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group D): 300V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: orange
• Fire load: 0.314MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 21.4g

Mechanical data

• Marking level: Center marking
• Mounting type: DIN-35 rail|DIN-35 rail

Notes

• Note: According to EN 61984, pluggable connectors without a current interrupting capacity must not be mated or unmated when live or under load. An appropriate end plate must be applied to the carrier terminal blocks after each female plug.

Physical data

• Depth from upper-edge of DIN-rail: 52.4 mm / 2.063 inches
• Height: 97.3 mm / 3.831 inches
• Width: 7 mm / 0.276 inches
