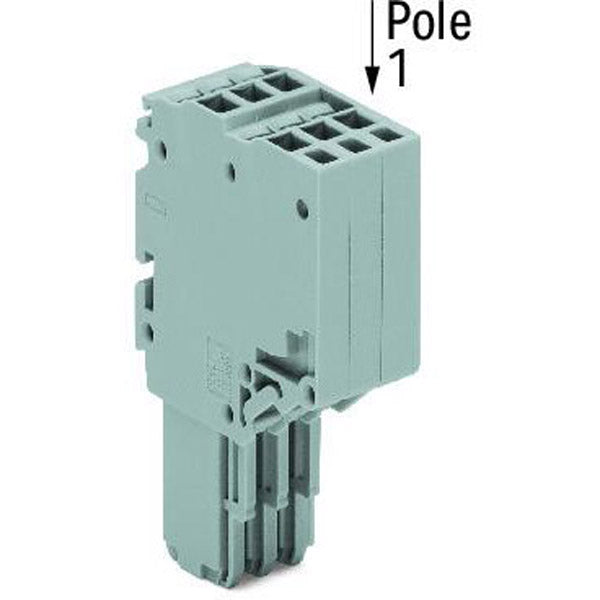

Plug - pin spacing 3.5mm - WAGO (2020 X-COM S-Mini series) - 8-poles (8P) - 1mm2 nominal cross-section - for 0.14mm2...1.5mm2 / for #24AWG...#16AWG - Rated current 13.5A - Gray color - with Push-in CAGE CLAMP spring connections - Plug-in mounting - equivalent to 2020208

Specifications

• Primary brand: WAGO
• Functions: Plug
• Design: pin spacing 3.5mm
• Poles: 8-poles (8P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: 13.5A
• Color: Gray
• Rated operating voltage (Ue): 500V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.14mm2...1.5mm2 conductors|for #24AWG...#16AWG conductors|1mm2 nominal cross-section
• Mounting mode: Plug-in
• Dimensions: H40.5mm x W28.7mm x D25mm
• Material: Polyamide (PA) 66
• GTIN code: 4045454855307
• ETIM code: EC001284
• Customs Tariff Number: 85366990990
• eClass code: 27-14-11-06
• Order code / Manufacturer SKU: 2020-208
• Manufacturer product status: Commercialized
• Equivalent to: 2020208
• EAN code: 4045454855307
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7617|- CSA - DEKRA Certification B.V. - C22.2 - certificate 2516073|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 38586/B0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Plug - WAGO (X-COM S-Mini series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-06
• eCl@ss 9.0: 27-14-11-06
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4045454855307
• Packaging type: Box
• Product Group: 18 (X-COM-System)
• PU (SPU): 25 pcs

Connection data

• Clamping units: 16
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 0.75 mm² / 20 … 18 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.14 … 0.75 mm² / 24 … 18 AWG
• Connection 1 - Nominal cross-section: 1 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Pole number: 8
• Connection 1 - Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Connection 1 - Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
• Connection 1 - Strip length: 9 … 11 mm / 0.35 … 0.43 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Total number of potentials: 8

Electrical data

• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 10A
• Ratings per CSA - Rated current CSA (Use Group C): 10A
• Ratings per CSA - Rated current CSA (Use Group D): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group C): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 300V
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 13.5A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Ratings per: IEC/EN 61984
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 15A
• Ratings per UL - Rated current UL (Use Group C): 15A
• Ratings per UL - Rated current UL (Use Group D): 15A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group C): 300V
• Ratings per UL - Rated voltage UL (Use Group D): 300V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.368MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 22.2g

Mechanical data

• Anti-rotation protection: Yes
• Marking level: Side marking
• Variable coding: Yes

Notes

• Safety Information: According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
• Safety information 2: Notice: An appropriate end plate must be applied to the carrier terminal blocks after each female plug.

Physical data

• Depth: 25 mm / 0.984 inches
• Height: 40.5 mm / 1.594 inches
• Module width: 3.5 mm / 0.138 inches
• Width: 28.7 mm / 1.13 inches

Plug-in connection

• Connector (connection type): for conductor
• Contact type (pluggable connector): Female connector/socket
• Mismating protection: No
• Plugging without loss of pin spacing: No
