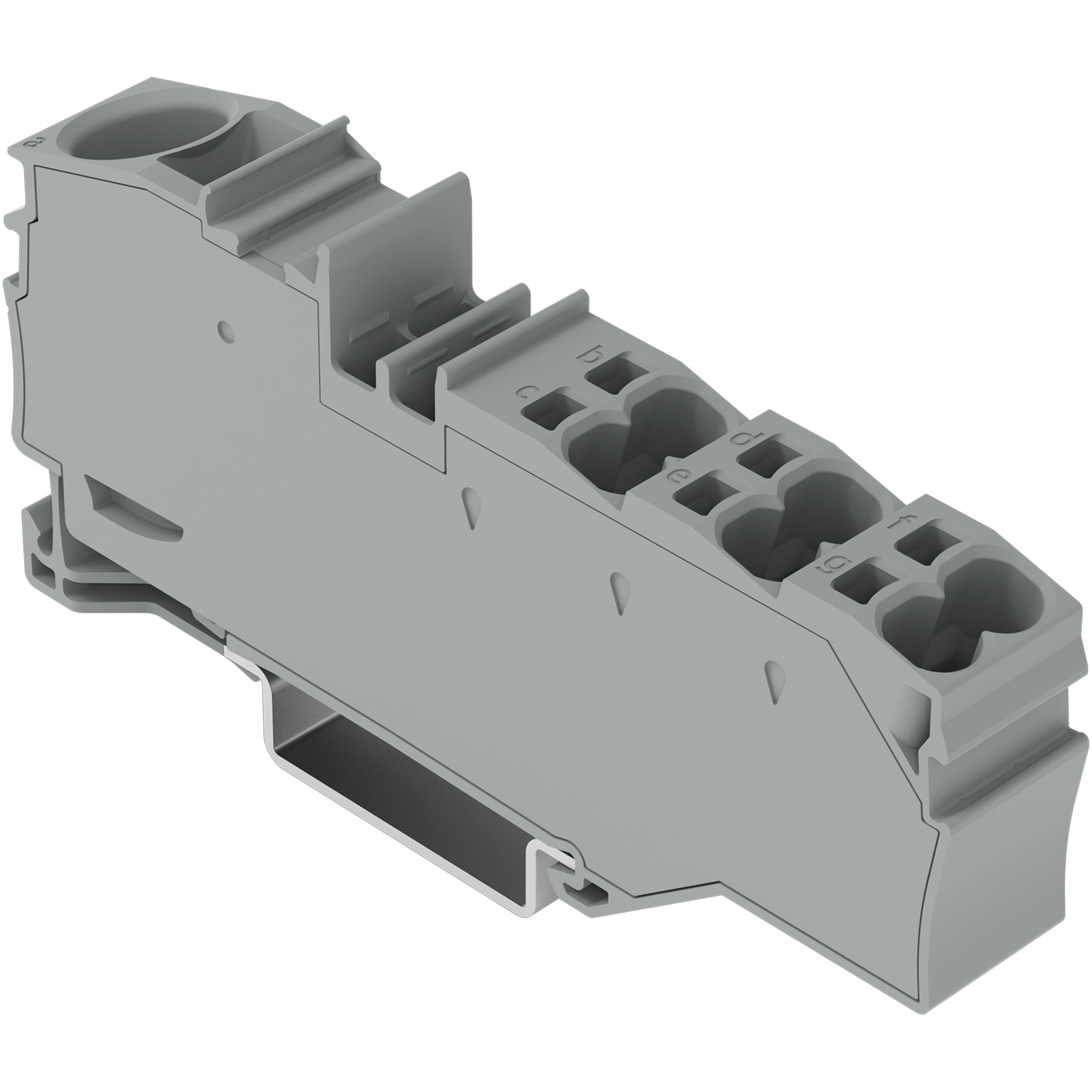

Wago - 2016-8031

WAGO component - equivalent to 20168031

Specifications

• Primary brand: WAGO
• GTIN code: 4066966661934
• Order code / Manufacturer SKU: 2016-8031
• Manufacturer product status: Commercialized
• Equivalent to: 20168031
• Manufacturer description: Distribution terminal block; with operating slots; 1 x 16mm2 / 6 x 4mm2; with integrated end plate; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP; 16mm2; gray
• Location of origin: Poland
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 800V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 8kV|Electrical data - Ratings per IEC/EN - Rated current -- 76A|Electrical data - Ratings per IEC/EN - Current at conductor cross-section (max.)mm2 -- 90A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 3) Overvoltage category III / Pollution degree 3|Electrical data - Power Loss - Power loss; per pole (potential) -- 2.426W|Electrical data - Power Loss - Rated current I_N for specified power loss -- 76A|Connection data - Clamping units -- 7|Connection data - Total number of potentials -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection type 1 -- Input|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Number of connection points -- 1|Connection data - Connection 1 - Actuation type -- Operating tool|Connection data - Connection 1 - Connectable conductor materials -- Copper|Connection data - Connection 1 - Nominal cross-section -- 16mm2|Connection data - Connection 1 - Solid conductor -- 0.5...16mm2 / 20...6 AWG|Connection data - Connection 1 - Solid conductor; push-in termination -- 6...16mm2 / 10...6 AWG|Connection data - Connection 1 - Stranded conductor -- 0.5...6mm2 / 20...8 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.5...25mm2 / 20...4 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.5...16mm2 / 20...6 AWG|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.5...16mm2 / 20...6 AWG|Connection data - Connection 1 - Fine-stranded conductor; with ferrule; push-in termination -- 6...16mm2 / 10...6 AWG|Connection data - Connection 1 - Note (conductor cross-section) -- Depending on the conductor characteristic; a conductor with a smaller cross-section can also be inserted via push-in termination.|Connection data - Connection 1 - Strip length -- 18...20mm / 0.71...0.79"|Connection data - Connection 2 - Connection type -- Output|Connection data - Connection 2 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 2 - Number of connection points -- 6|Connection data - Connection 2 - Solid conductor -- 0.5...6mm2 / 20...10 AWG|Connection data - Connection 2 - Solid conductor; push-in termination -- 1.5...6mm2 / 16...10 AWG|Connection data - Connection 2 - Stranded conductor -- 0.5...6mm2 / 20...10 AWG|Connection data - Connection 2 - Fine-stranded conductor -- 0.5...6mm2 / 20...10 AWG|Connection data - Connection 2 - Fine-stranded conductor; with insulated ferrule -- 0.5...4mm2 / 20...12 AWG|Connection data - Connection 2 - Fine-stranded conductor; with uninsulated ferrule -- 0.5...4mm2 / 20...12 AWG|Connection data - Connection 2 - Fine-stranded conductor; with ferrule; push-in termination -- 1.5...4mm2 / 16...12 AWG|Connection data - Connection 2 - Strip length -- 11...13mm / 0.43...0.51"|Physical data - Width -- 12.8mm / 0.504"|Physical data - Height -- 87mm / 3.425"|Physical data - Depth from upper-edge of DIN-rail -- 36.9mm / 1.453"|Physical data - Depth -- 43.5mm / 1.713"|Mechanical data - Mounting type -- DIN-35 rail|Mechanical data - Marking level -- Center/side marking|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Fire load -- 0.543MJ|Material data - Weight -- 31.3g|Environmental requirements - Processing temperature -- -35...+85°C|Environmental requirements - Continuous operating temperature -- -60...+105°C|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 7 pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- PL|Commercial data - GTIN -- 4066966661934|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• GTIN: 4066966661934
• Packaging type: Box
• PU (SPU): 7 pcs

Connection data

• Clamping units: 7
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Connection type 1: Input
• Connection 1 - Fine-stranded conductor: 0.5 … 25 mm² / 20 … 4 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 6 … 16 mm² / 10 … 6 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 16 mm² / 20 … 6 AWG
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.5 … 16 mm² / 20 … 6 AWG
• Connection 1 - Nominal cross-section: 16 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Number of connection points: 1
• Connection 1 - Solid conductor: 0.5 … 16 mm² / 20 … 6 AWG
• Connection 1 - Solid conductor; push-in termination: 6 … 16 mm² / 10 … 6 AWG
• Connection 1 - Stranded conductor: 0.5 … 6 mm² / 20 … 8 AWG
• Connection 1 - Strip length: 18 … 20 mm / 0.71 … 0.79 inches
• Connection 2 - Connection technology: Push-in CAGE CLAMP^®
• Connection 2 - Connection type: Output
• Connection 2 - Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 2 - Fine-stranded conductor; with ferrule; push-in termination: 1.5 … 4 mm² / 16 … 12 AWG
• Connection 2 - Fine-stranded conductor; with insulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 2 - Fine-stranded conductor; with uninsulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 2 - Number of connection points: 6
• Connection 2 - Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 2 - Solid conductor; push-in termination: 1.5 … 6 mm² / 16 … 10 AWG
• Connection 2 - Stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 2 - Strip length: 11 … 13 mm / 0.43 … 0.51 inches
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Power Loss - Power loss, per pole (potential): 2.426W
• Power Loss - Rated current I_N for specified power loss: 76A
• Ratings per IEC/EN - Current at conductor cross-section (max.) mm²: 90A
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 76A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: gray
• Fire load: 0.543MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 31.3g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth: 43.5 mm / 1.713 inches
• Depth from upper-edge of DIN-rail: 36.9 mm / 1.453 inches
• Height: 87 mm / 3.425 inches
• Width: 12.8 mm / 0.504 inches
