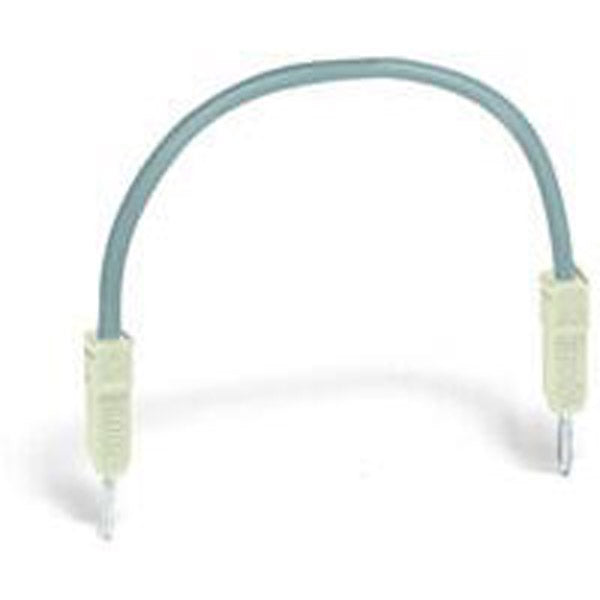

Wago - 2009-402

Insulated push-in type wire jumper - wire length 60mm - WAGO (2009 TOPJOB S series) - 2-poles (2P) - Rated current 9A - Gray color - equivalent to 2009402

Specifications

• Primary brand: WAGO
• Functions: Insulated push-in type wire jumper
• Design: wire length 60mm
• Poles: 2-poles (2P)
• Rated current: 9A
• Color: Gray
• Rated operating voltage (Ue): 800V
• Technical compatibility with: 2000 series|2020 series
• GTIN code: 4050821458883
• eClass code: 27-14-11-40
• ETIM code: EC000489
• Customs Tariff Number: 85444290900
• Order code / Manufacturer SKU: 2009-402
• Manufacturer product status: Commercialized
• Equivalent to: 2009402
• EAN code: 4050821458883
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Insulated push-in type wire jumper - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85444290900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-40
• eCl@ss 9.0: 27-14-11-40
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• GTIN: 4050821458883
• Packaging type: box
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 100 (10) pcs

Connection data

• Connection 1 - Solid conductor: 0.75 mm²

Electrical data

• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 9A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.015MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 1.4g

Mechanical data

• Wire length of wire jumpers: 60mm

Notes

• Safety Information: Push down the wire jumper until fully inserted!
