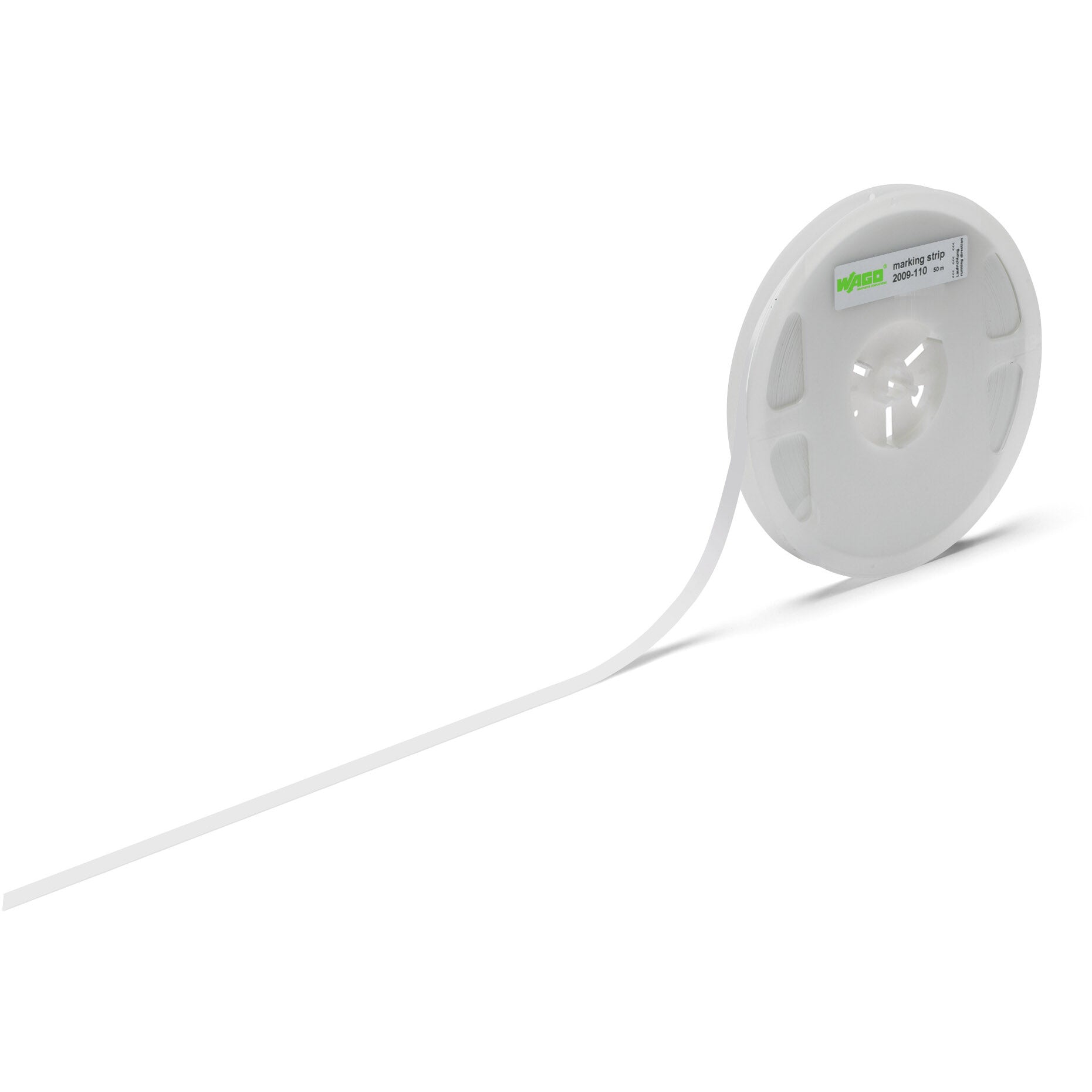

Wago - 2009-110

Plain marking strips on reel - WAGO (2009 series) - White color - Snap-on mounting - contains 1 continuous strip (20m long) on a roll - equivalent to 2009110

Specifications

• Primary brand: WAGO
• Functions: Plain marking strips on reel
• Color: White
• Mounting mode: Snap-on
• Material: Halogen-free materials
• Ambient air temperature for operation: -40°C...+150°C
• Humidity: 40-50% relative humidity (RH)
• Contents: 1 continuous strip (20m long) on a roll
• Technical compatibility with: Smart printer
• ETIM code: EC000761
• eClass code: 27-14-11-37
• GTIN code: 4044918102483
• Customs Tariff Number: 39206219888
• Order code / Manufacturer SKU: 2009-110
• Manufacturer product status: Commercialized
• Equivalent to: 2009110
• EAN code: 4044918102483
• Compliant with standard(s): Declarations of conformity and manufacturer's declarations|- Railway - WAGO GmbH & Co. KG - certificate Railway Ready|RoHS compliant
• Location of origin: Luxembourg
• Level 1 category: Cabling systems
• Level 2 category: Labelling
• Level 3 category: Terminal blocks labelling
• Product title: Plain marking strips on reel - WAGO

Commercial data

• Country of origin: LU
• Customs tariff number: 39206219888
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-37
• eCl@ss 9.0: 27-14-11-37
• ETIM 8.0: EC000761
• ETIM 9.0: EC000761
• GTIN: 4044918102483
• Packaging type: bag
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 1 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +150 °C
• Ambient temperature (storage): +10 … +21 °C
• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Relative humidity: 40 … 50 %

Material data

• Adhesive information: without adhesive
• Color: white
• Fire load: 7.8MJ
• Halogen-free: Yes
• UV resistance: EN 60068-2-5:2010 Procedure B
• Weight: 260g

Mechanical data

• Mounting type: Snapping on
• Smear resistance: EN 60998-1:2004

Physical data

• Strip width: 11mm
• Width: 11 mm

Technical data

• Delivery form: Strip
• Delivery form configuration: 50 m; 1 line
• Marking: plain
• Marking method: Thermal transfer
• Printing device: Smart Printer (Thermal Transfer Printer)
• Suitable: for WAGO Rail-Mount Terminal Blocks TOPJOB® S, X-COM®S-SYSTEM, X-COM®S-SYSTEM-MINI and 285/788/857/2857 Series
