Wago - 2007-8874

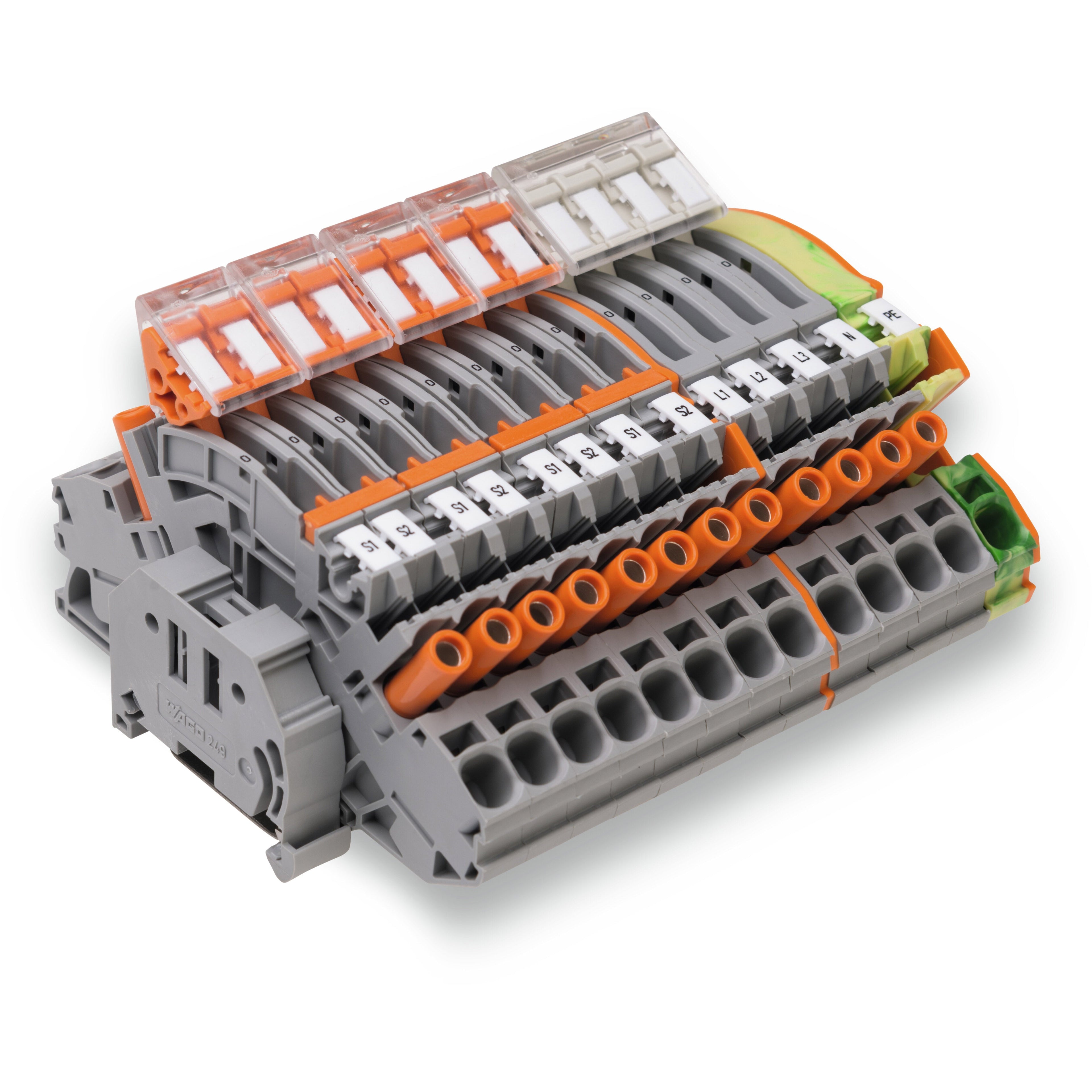

Compact terminal block with 1-deck/level + side/lateral and center marking slots - for C.T. and V.T. connection - WAGO (2007 TOPJOB S series) - Gray / Green-Yellow / Orange plugs - 6mm2 nominal cross-section - for 0.5mm2...10mm2 / for #20AWG...#8AWG - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (127mm width) - equivalent to 20078874

Specifications

• Primary brand: WAGO
• Functions: Compact terminal block
• Design: 1-deck/level|side/lateral and center marking slots|for C.T. and V.T. connection
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Gray / Green-Yellow / Orange plugs
• Rated operating voltage (Ue): (IEC) 500V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...10mm2 fine stranded or solid conductors|for 0.5mm2...6mm2 fine stranded conductors with insulated ferrule|for 2.5mm2...6mm2 fine stranded conductors with ferrule; push-in termination|for 1mm2...10mm2 solid conductors; push-in termination|for #20AWG...#8AWG fine stranded or solid conductors|for #20AWG...#10AWG fine stranded conductors with insulated ferrule|for #16AWG...#10AWG fine stranded conductors with ferrule; push-in termination|for #14AWG...#8AWG solid conductors; push-in termination|6mm2 nominal cross-section
• Mounting mode: DIN-35 rail
• Dimensions: H99.6mm x W127mm x D65.3mm
• Net Width (mm): 127mm
• Material: Polyamide (PA) 66
• Contents: 8 x 2-conductor disconnect/test terminal blocks with touchproof test sockets for diam. 4mm test plugs (2007-8821)|4 x 2-conductor disconnect/test terminal blocks with touchproof test sockets for diam. 4mm test plugs (2007-8811)|1 x 2-conductor ground terminal block with touchproof test socket for diam. 4mm test plugs (2007-8807)|4 x 2-way insulated circuit jumpers (2007-8442)|4 x locking covers (mechanically locks multiple links) 2-pole (282-882)|1 x locking cover (mechanically locks multiple links) 4-pole (282-884)|2 x end and separator plates (1.5mm thick) without lockout seal option (2007-8892)|25 x WMB Inline (plain) 1500 5mm WMB markers per reel (2009-115)|2 x screwless end stops 10mm wide (249-117)
• Customs Tariff Number: 85369010000
• ETIM code: EC000276
• GTIN code: 4055143070294
• eClass code: 27-14-11-47
• Order code / Manufacturer SKU: 2007-8874
• Manufacturer product status: Commercialized
• Equivalent to: 20078874
• EAN code: 4055143070294
• Compliant with standard(s): Declarations of conformity and manufacturer's declarations|- Railway - WAGO GmbH & Co. KG - certificate Railway Ready|RoHS compliant with exemption (6(c))|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Compact terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-47
• eCl@ss 9.0: 27-14-11-47
• ETIM 8.0: EC000276
• ETIM 9.0: EC000276
• GTIN: 4055143070294
• Packaging type: box
• Product Group: 22 (TOPJOB S)
• PU (SPU): 1 pcs

Connection data

• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 1.5 … 6 mm² / 16 … 10 AWG
• Connection 1 - Nominal cross-section: 6 mm² / 10 AWG
• Connection 1 - Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Connection 1 - Solid conductor; push-in termination: 1 … 10 mm² / 14 … 8 AWG
• Connection 1 - Strip length: 13 … 15 mm / 0.51 … 0.59 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): be090492-316a-4da2-8615-f61e4d86728a
• SCIP notification number (Belgium): 445f69c5-a5ef-4db5-ba0d-67db0ff386aa
• SCIP notification number (Bulgaria): 2cf95ddd-9e24-4057-8a95-0872de205fd5
• SCIP notification number (Czech Republic): dd82830c-1bc6-4249-be16-2a84f8eae2f3
• SCIP notification number (Denmark): fb14f858-96a6-4850-b673-5cfed08e7f46
• SCIP notification number (Finland): 784d71b6-1ff6-496f-84a9-ec5e6405fb71
• SCIP notification number (France): 46ebaf43-c978-422a-9b07-7ac1d06b43c1
• SCIP notification number (Germany): d14407af-157c-4e3b-9d7e-8c4ac153311a
• SCIP notification number (Hungary): e6882aae-9fa8-4576-aaac-44abb965d1a5
• SCIP notification number (Italy): dd3c6457-22e6-437d-8d9f-0f7c0a4a3360
• SCIP notification number (Netherlands): 2b7a5329-22ed-44c3-bd9b-a39ac1ea3dd3
• SCIP notification number (Poland): 98a2045c-d4ac-4d19-8465-e3593ecf3353
• SCIP notification number (Romania): 52920352-634b-45e1-95e6-c249bdfae9ae
• SCIP notification number (Sweden): 80f65056-a8cb-4be4-945f-953fba3801a1

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Processing temperature: -35 … +85 °C

Material data

• Color: multi-colored
• Fire load: 6.477MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 402.4g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 65.3 mm / 2.571 inches
• Height: 99.6 mm / 3.921 inches
• Module width: 8 mm / 0.315 inches
• Width: 127 mm / 5 inches
