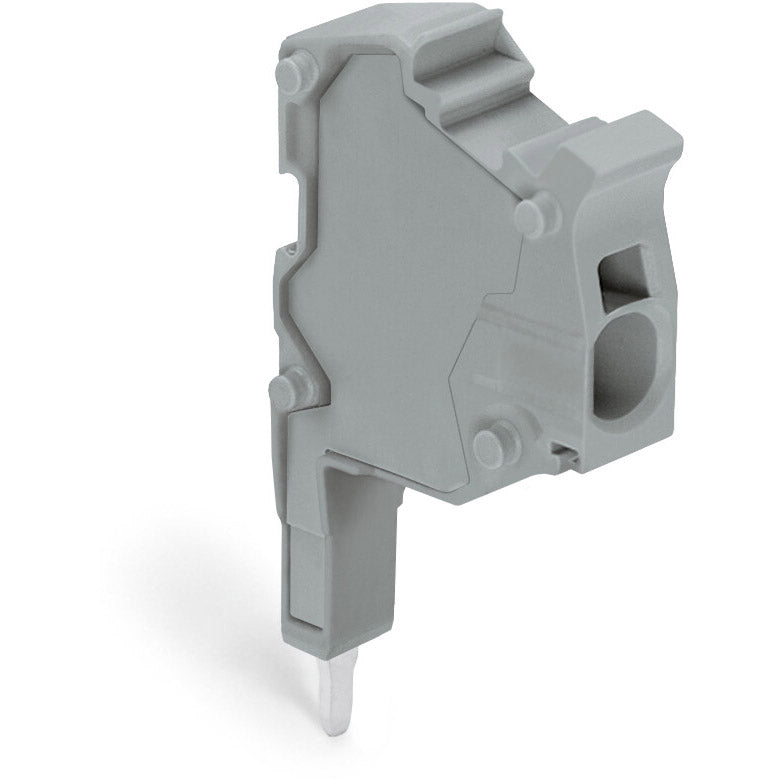

Wago - 2006-511

Modular connector - WAGO (2006 TOPJOB S series) - 1-pole (1P) - 4mm2 nominal cross-section - for 0.5mm2...6mm2 / for #20AWG...#10AWG - Rated current 32A - Gray color - with Push-in CAGE CLAMP spring connections - equivalent to 2006511

Specifications

• Primary brand: WAGO
• Functions: Modular connector
• Poles: 1-pole (1P)
• Rated current: 32A
• Color: Gray
• Rated operating voltage (Ue): (IEC) 500V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...6mm2 fine stranded or solid conductors|for #20AWG...#10AWG fine stranded or solid conductors|4mm2 nominal cross-section
• Dimensions: W7.5mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85366990990
• ETIM code: EC002021
• GTIN code: 4050821263715
• eClass code: 27-14-11-51
• Order code / Manufacturer SKU: 2006-511
• Manufacturer product status: Commercialized
• Equivalent to: 2006511
• EAN code: 4050821263715
• Compliant with standard(s): Declarations of conformity and manufacturer's declarations|- Railway - WAGO GmbH & Co. KG - certificate Railway Ready|RoHS compliant|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Modular connector - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-51
• eCl@ss 9.0: 27-14-11-51
• ETIM 8.0: EC002021
• ETIM 9.0: EC002021
• GTIN: 4050821263715
• Packaging type: box
• Product Group: 22 (TOPJOB S)
• PU (SPU): 50 (25) pcs

Connection data

• Clamping units: 1
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 1.5 … 4 mm² / 18 … 12 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 1 - Nominal cross-section: 4 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Pole number: 1
• Connection 1 - Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Solid conductor; push-in termination: 2.5 … 6 mm² / 14 … 10 AWG
• Connection 1 - Strip length: 11 … 13 mm / 0.43 … 0.51 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed

Material data

• Color: gray
• Fire load: 0.079MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.3g

Mechanical data

• Marking level: Center/side marking

Notes

• Safety Information: According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

Physical data

• Module width: 7.5 mm / 0.295 inches
• Width: 7.5 mm / 0.295 inches
