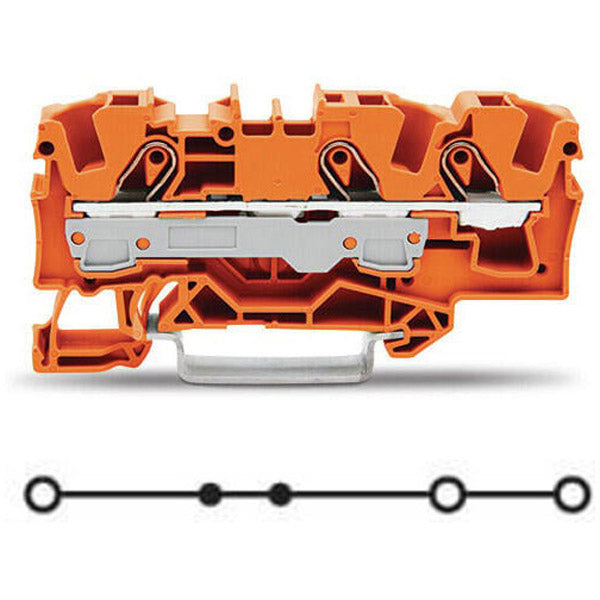

Wago - 2006-1302

Feed-through/thru terminal block with 1-deck/level + side/lateral and center marking slots - Suitable for Ex e II applications - WAGO (2006 TOPJOB S series) - Orange - 1 feed-through pole (1P) / 3-wires (1 push-in + 2 push-in) (1+2) - 6mm2 nominal cross-section - for 0.5mm2...10mm2 / for #20AWG...#8AWG - Rated current 41A / 57A - with Push-in CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (7.5mm width) - equivalent to 20061302

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|side/lateral and center marking slots|2 jumper slots|Suitable for Ex e II applications
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 41A|(IEC) 57A|(UL) 50A|(CSA) 50A|(Ex e II) 36A|(Ex e II with jumper) 33A
• Color: Orange
• Connection capacity: 3-wires (1 push-in + 2 push-in) (1+2)
• Rated operating voltage (Ue): (IEC) 800V|(UL) 600V|(CSA) 600V|(Ex e II) 550V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...10mm2 fine stranded or solid conductors|for 0.5mm2...6mm2 fine stranded conductors with insulated ferrule|for 2.5mm2...6mm2 fine stranded conductors with ferrule; push-in termination|for 2.5mm2...10mm2 solid conductors; push-in termination|for #20AWG...#8AWG fine stranded or solid conductors|for #20AWG...#10AWG fine stranded conductors with insulated ferrule|for #16AWG...#10AWG fine stranded conductors with ferrule; push-in termination|for #14AWG...#8AWG solid conductors; push-in termination|6mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H73.3mm x W7.5mm x D39.5mm
• Net Width (mm): 7.5mm
• Material: Polyamide (PA) 66
• ETIM code: EC000897
• Customs Tariff Number: 85369010000
• eClass code: 27-14-11-20
• GTIN code: 4017332999700
• Order code / Manufacturer SKU: 2006-1302
• Manufacturer product status: Commercialized
• Equivalent to: 20061302
• EAN code: 4017332999700
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7925/1|- CCA - DEKRA Certification B.V. - IEC 60947 - certificate 71-122840 REV.1|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1543858|- cURus - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- Railway - WAGO GmbH & Co. KG - certificate Railway Ready|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - UL 60079 - certificate E 185892 (AEx eb IIC Gb / Ex eb IIC Gb)|- ATEX - Physikalisch Technische Bundesanstalt (PTB) - EN 60079 - certificate PTB 05 ATEX 1030 U (II 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb)|- CCCEx - CQST/CNEx - GB/T 3836.3 - certificate 2020312313000231 (Ex eb IIC Gb / Ex eb I Mb)|- IECEx - Physikalisch Technische Bundesanstalt (PTB) - IEC 60079 - certificate IECEx PTB 05.0014 U (Ex eb IIC resp. EX eb I Mb)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079 - certificate TUV 12.1310 U|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4017332999700
• Packaging type: box
• Product Group: 22 (TOPJOB S)
• PU (SPU): 25 pcs

Connection data

• Clamping units: 3
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Nominal cross-section: 6 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Connection 1 - Solid conductor; push-in termination: 2.5 … 10 mm² / 14 … 8 AWG
• Connection 1 - Strip length: 13 … 15 mm / 0.51 … 0.59 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ex information - Rated current (Ex e II): 36A
• Ex information - Rated current (Ex e II) with jumper: 33A
• Ex information - Rated voltage EN (Ex e II): 550V
• Ex information - Ratings per: ATEX: PTB 05 ATEX 1030 U / IECEx: PTB 05.0014U (Ex eb IIC Gb)
• Ex information - Reference hazardous areas: See application instructions in section “Knowledge and
  Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
• Power Loss - Power loss, per pole (potential): 1.311W
• Power Loss - Rated current I_N for specified power loss: 41A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group B): 50A
• Ratings per CSA - Rated current CSA (Use Group C): 50A
• Ratings per CSA - Rated voltage CSA (Use Group B): 600V
• Ratings per CSA - Rated voltage CSA (Use Group C): 600V
• Ratings per IEC/EN - Current at conductor cross-section (max.) mm²: 57A
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 41A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 50A
• Ratings per UL - Rated current UL (Use Group C): 50A
• Ratings per UL - Rated voltage UL (Use Group B): 600V
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Processing temperature: -35 … +85 °C

Material data

• Color: orange
• Fire load: 0.231MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 11.8g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth: 39.5 mm / 1.555 inches
• Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
• Height: 73.3 mm / 2.886 inches
• Width: 7.5 mm / 0.295 inches
