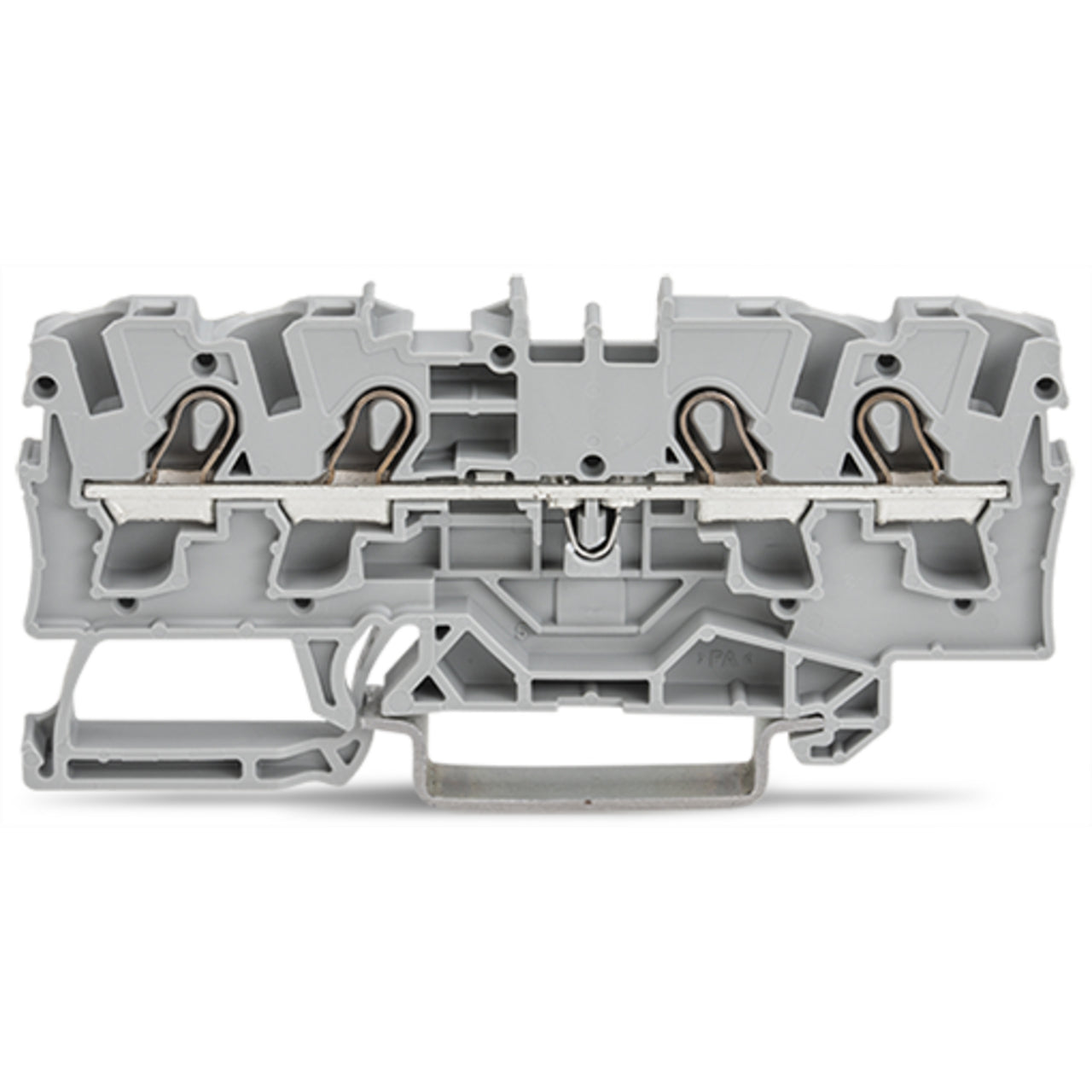

Wago - 2004-1411

WAGO component - equivalent to 20041411

Specifications

• Primary brand: WAGO
• GTIN code: 4066966513394
• Order code / Manufacturer SKU: 2004-1411
• Manufacturer product status: Commercialized
• Equivalent to: 20041411
• Manufacturer description: Basic housing; 4mm2; gray
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60947-7-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 250V|Electrical data - Ratings per IEC/EN - Rated current -- 32A|Electrical data - Power Loss - Power loss; per pole (potential) -- 1.024W|Electrical data - Power Loss - Rated current I_N for specified power loss -- 32A|Connection data - Clamping units -- 4|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Operating tool|Connection data - Connection 1 - Connectable conductor materials -- Copper|Connection data - Connection 1 - Nominal cross-section -- 4mm2|Connection data - Connection 1 - Solid conductor -- 0.5...6mm2 / 20...10 AWG|Connection data - Connection 1 - Strip length -- 11...13mm / 0.43...0.51"|Physical data - Width -- 6.2mm / 0.244"|Physical data - Height -- 78.8mm / 3.098"|Physical data - Depth from upper-edge of DIN-rail -- 32.9mm / 1.295"|Physical data - Depth -- 39.5mm / 1.555"|Mechanical data - Mounting type -- DIN-35 rail|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Fire load -- 0.201MJ|Material data - Weight -- 11.1g|Environmental requirements - Processing temperature -- -35...+85°C|Environmental requirements - Continuous operating temperature -- -60...+105°C|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 50 pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- CN|Commercial data - GTIN -- 4066966513394|Commercial data - Customs tariff number -- 85472000900|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks

Commercial data

• Country of origin: CN
• Customs tariff number: 85472000900
• ECCN: NO US CLASSIFICATION
• GTIN: 4066966513394
• Packaging type: Box
• PU (SPU): 50 pcs

Connection data

• Clamping units: 4
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Nominal cross-section: 4 mm²
• Connection 1 - Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Connection 1 - Strip length: 11 … 13 mm / 0.43 … 0.51 inches
• Number of levels: 1

Electrical data

• Power Loss - Power loss, per pole (potential): 1.024W
• Power Loss - Rated current I_N for specified power loss: 32A
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.201MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 11.1g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 39.5 mm / 1.555 inches
• Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
• Height: 78.8 mm / 3.098 inches
• Width: 6.2 mm / 0.244 inches
