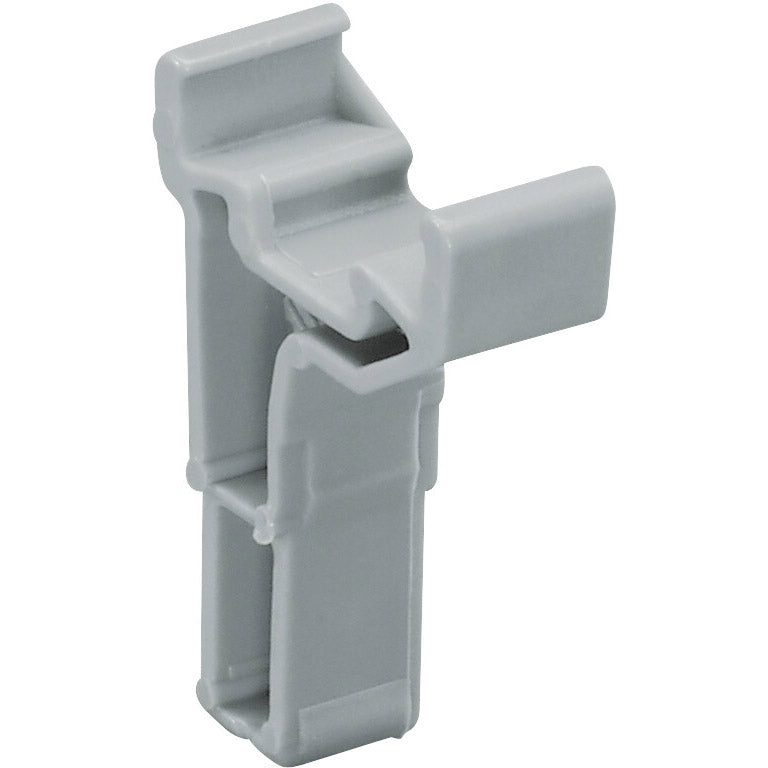

Wago - 2002-161

Adapter - WAGO (2002 TOPJOB S series) - Gray color - Dimensions W5mm - equivalent to 2002161

Specifications

• Primary brand: WAGO
• Functions: Adapter
• Color: Gray
• Dimensions: W5mm
• Technical compatibility with: 2002 series jumper slots
• Customs Tariff Number: 39269097900
• GTIN code: 4045454651138
• ETIM code: EC002248
• eClass code: 27-14-40-75
• Order code / Manufacturer SKU: 2002-161
• Manufacturer product status: Commercialized
• Equivalent to: 2002161
• EAN code: 4045454651138
• Compliant with standard(s): Declarations of conformity and manufacturer's declarations|- Railway - WAGO GmbH & Co. KG - certificate Railway Ready|RoHS compliant
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Adapter - WAGO (TOPJOB S series)

Commercial data

• Country of origin: DE
• Customs tariff number: 39269097900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-40-75
• eCl@ss 9.0: 27-14-40-75
• ETIM 8.0: EC002248
• ETIM 9.0: EC002248
• GTIN: 4045454651138
• Packaging type: box
• Product Group: 22 (TOPJOB S)
• PU (SPU): 100 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed

Material data

• Color: gray
• Fire load: 0.017MJ
• Weight: 0.3g

Physical data

• Width: 5 mm / 0.197 inches

Technical data

• Suitable: for jumper slots of 2002, 2102, 2202 Series
