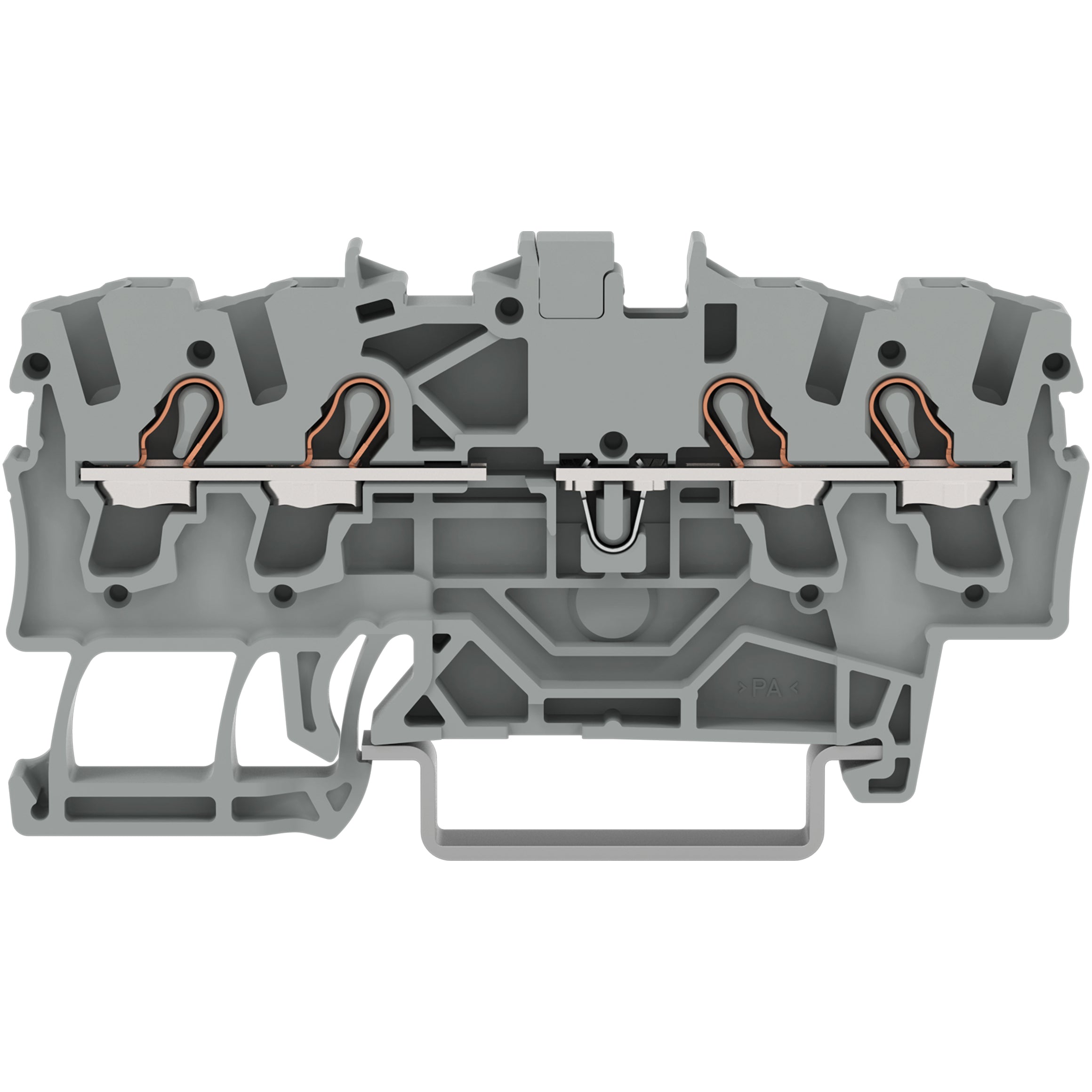

Wago - 2002-1411

WAGO component - equivalent to 20021411

Specifications

• Primary brand: WAGO
• GTIN code: 4055143302890
• Order code / Manufacturer SKU: 2002-1411
• Manufacturer product status: Commercialized
• Equivalent to: 20021411
• Manufacturer description: Basic housing; 2.5mm2; gray
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60947-7-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 250V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 8kV|Electrical data - Ratings per IEC/EN - Rated current -- 24A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 3) Overvoltage category III / Pollution degree 3|Connection data - Clamping units -- 4|Connection data - Total number of potentials -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Operating tool|Connection data - Connection 1 - Connectable conductor materials -- Copper|Connection data - Connection 1 - Nominal cross-section -- 2.5mm2|Connection data - Connection 1 - Solid conductor -- 0.25...4mm2 / 22...12 AWG|Connection data - Connection 1 - Solid conductor; push-in termination -- 0.75...4mm2 / 18...12 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.25...4mm2 / 22...12 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...2.5mm2 / 22...14 AWG|Connection data - Connection 1 - Fine-stranded conductor; with ferrule; push-in termination -- 1...2.5mm2 / 18...14 AWG|Connection data - Connection 1 - Note (conductor cross-section) -- Depending on the conductor characteristic; a conductor with a smaller cross-section can also be inserted via push-in termination.|Connection data - Connection 1 - Strip length -- 10...12mm / 0.39...0.47"|Connection data - Connection 1 - Wiring direction -- Front-entry wiring|Physical data - Width -- 5.2mm / 0.205"|Physical data - Height -- 69.9mm / 2.752"|Physical data - Depth from upper-edge of DIN-rail -- 32.9mm / 1.295"|Physical data - Depth -- 39.5mm / 1.555"|Mechanical data - Mounting type -- DIN-35 rail|Mechanical data - Marking level -- Center/side marking|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Fire load -- 0.157MJ|Material data - Weight -- 7.6g|Environmental requirements - Processing temperature -- -35...+85°C|Environmental requirements - Continuous operating temperature -- -60...+105°C|Commercial data - Product Group -- 22 (TOPJOB S)|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 100 pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- CN|Commercial data - GTIN -- 4055143302890|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks

Commercial data

• Country of origin: CN
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• GTIN: 4055143302890
• Packaging type: Box
• Product Group: 22 (TOPJOB S)
• PU (SPU): 100 pcs

Connection data

• Clamping units: 4
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Connection 1 - Nominal cross-section: 2.5 mm²
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Connection 1 - Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Connection 1 - Strip length: 10 … 12 mm / 0.39 … 0.47 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 24A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.157MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 7.6g

Mechanical data

• Marking level: Center/side marking
• Mounting type: DIN-35 rail

Physical data

• Depth: 39.5 mm / 1.555 inches
• Depth from upper-edge of DIN-rail: 32.9 mm / 1.295 inches
• Height: 69.9 mm / 2.752 inches
• Width: 5.2 mm / 0.205 inches
