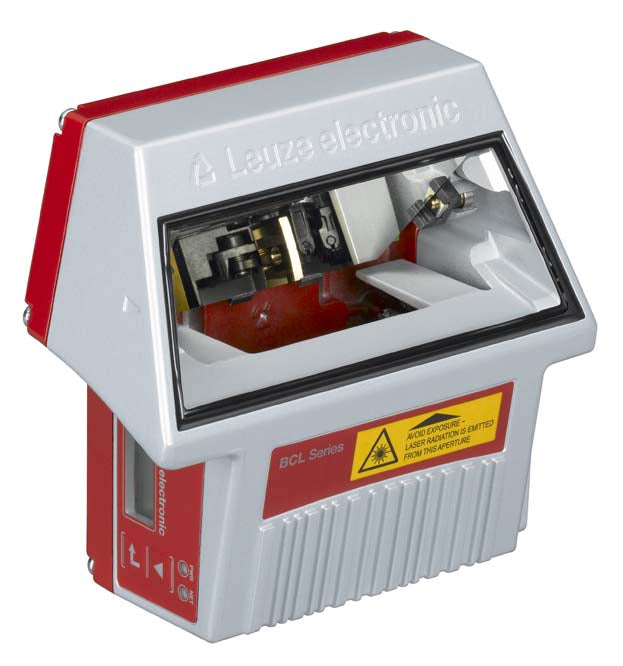

Leuze 50116322 BCL 304i OF 100 D H Stationary bar code reader
$5,050.08
Sale price
$5,050.08
Regular price
Skip to product information
Special version: Heating
Functions: AutoConfig, Alignment mode, AutoControl, AutoReflAct, Code fragment technology, Heating, LED indicator, Reference code comparison
Scanning rate, typical: 1,000 scans/s
Reading distance: 80 ... 455 mm
Modulus size: 0.3 ... 0.5 mm
Reading method: Oscillating-mirror scanner
Light beam exit: Zero position at side at angle less than 90°
Supply voltage: 18 ... 30 V, DC
Selectable inputs/outputs: 2 Piece(s)
Interface: PROFIBUS DP, USB 2.0
Connection: Plug connector
Dimensions: 125 mm x 58 mm x 110 mm
Display: LED, Monochromatic graphic display, 128 x 32 pixels
Ambient temperature, operation: -35 ... 40 °C
Certifications: c UL US
