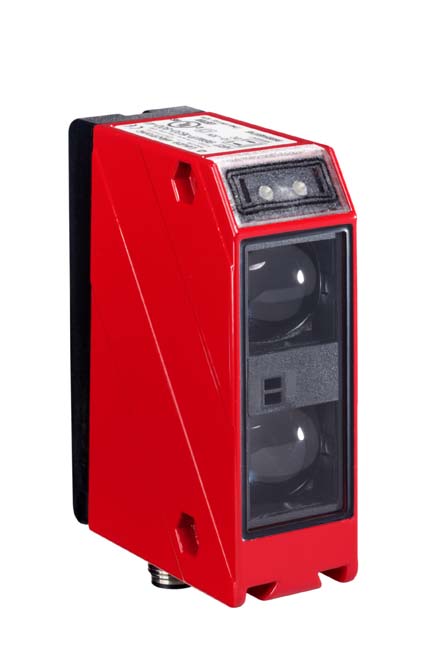

Leuze 50060858 HRT 96M/P-3604-2000-42 Diffuse sensor with background suppression
$915.75
Sale price
$915.75
Regular price
Skip to product information
Special version: Time function, 2 permanently assigned switching points
Operating range limit, white 90%: 0.1 ... 2.5 m
Light source: LED, Infrared
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching output 2: Transistor, PNP, Light switching
Switching frequency: 300 Hz
Connection: Connector, M12, Metal, 4 -pin
Design, housing: Cubic
Dimensions: 30 mm x 90 mm x 70 mm
Housing material: Metal
Operational controls: Multiturn potentiometer
Ambient temperature, operation: -40 ... 55 °C
Degree of protection: IP 67
Leuze 50060858 HRT 96M/P-3604-2000-42 Diffuse sensor with background suppression
$915.75
Sale price
$915.75
Regular price
Operating range limit, white 90%: 0.1 ... 2.5 m
Light source: LED, Infrared
Supply voltage: 10 ... 30 V, DC
Digital switching outputs: 2 Piece(s)
Switching output 1: Transistor, PNP, Light switching
Switching output 2: Transistor, PNP, Light switching
Switching frequency: 300 Hz
Connection: Connector, M12, Metal, 4 -pin
Design, housing: Cubic
Dimensions: 30 mm x 90 mm x 70 mm
Housing material: Metal
Operational controls: Multiturn potentiometer
Ambient temperature, operation: -40 ... 55 °C
Degree of protection: IP 67
